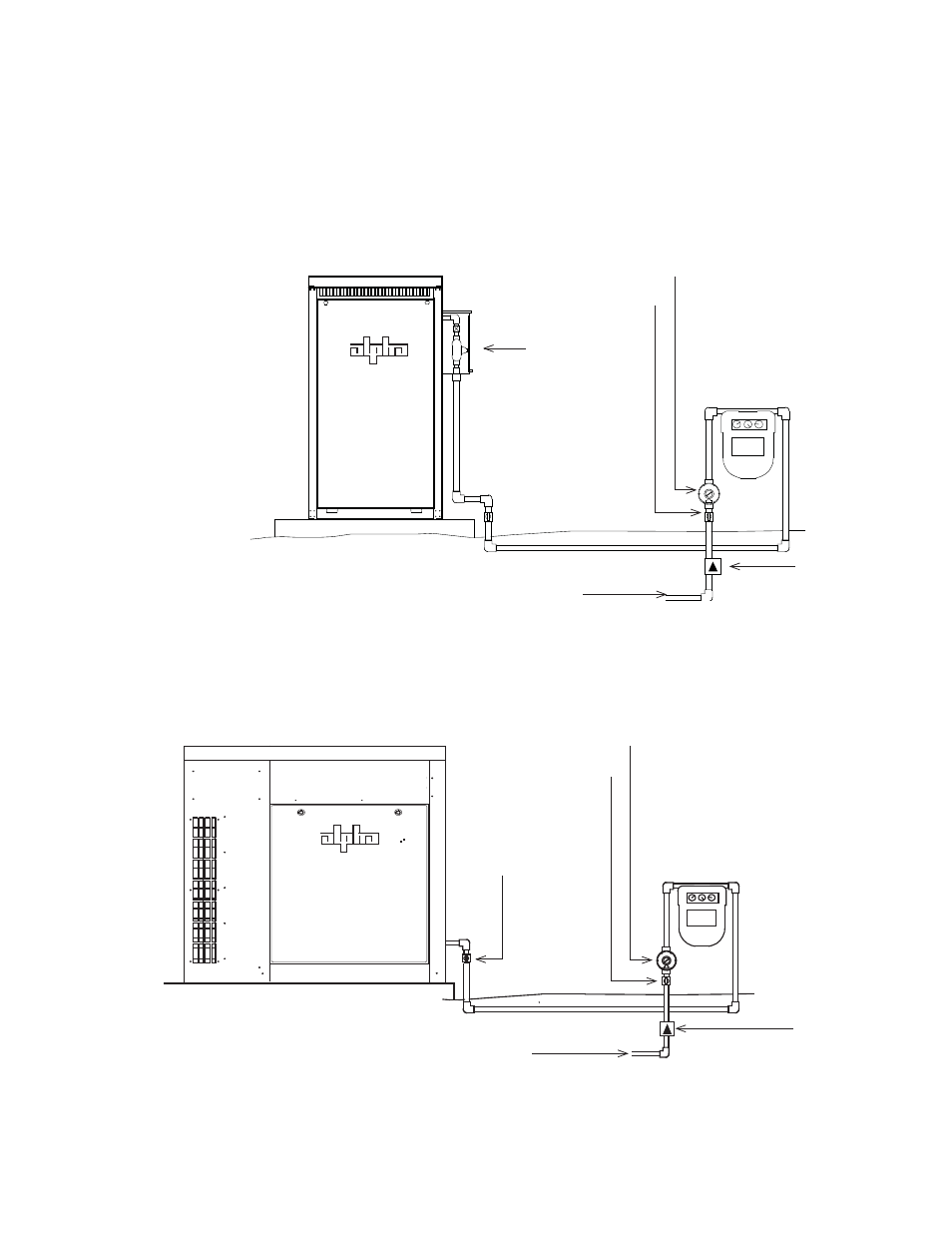

Fig. 2-8, Remote Natural Gas Meter Setup for PN-6x-T 7.5kW Generator
Fig. 2-7, Collocated CE-3x2 5K-T Generator with Remote Natural Gas Meter
Natural Gas Meter
Street Regulator
Manual Shutoff
Street Pressure
Manual
shutoff required if
meter cannot be
seen
Excess Flow Valve
(optional)
2.0 Site Preparation, continued
2.4 Natural Gas Meter Confi gurations, continued
The gas utility company should have the meter installed prior to generator arrival. Meter
confi gurations must comply with local codes. Examplesz provided are for illustrative purposes
only.
Gas Utility Box
Natural Gas Meter
Excess Flow Valve
(optional)
Street Pressure
Street Regulator
Manual Shutoff
