6.0 Installing the Cold Weather Kit, continued
6.2 Installing the Insulated Battery Box
1. Route the battery wiring and temperature probe through the center cutout in the top of the
battery box. Route the AC input wiring through the notches on the left side of the battery
box.
2. Position the battery box over the batteries and hang the box on the mounting stud. The
keyhole tab is on the top of the box (A).
3. Secure the bottom of the box with the provided Phillips screw (B).

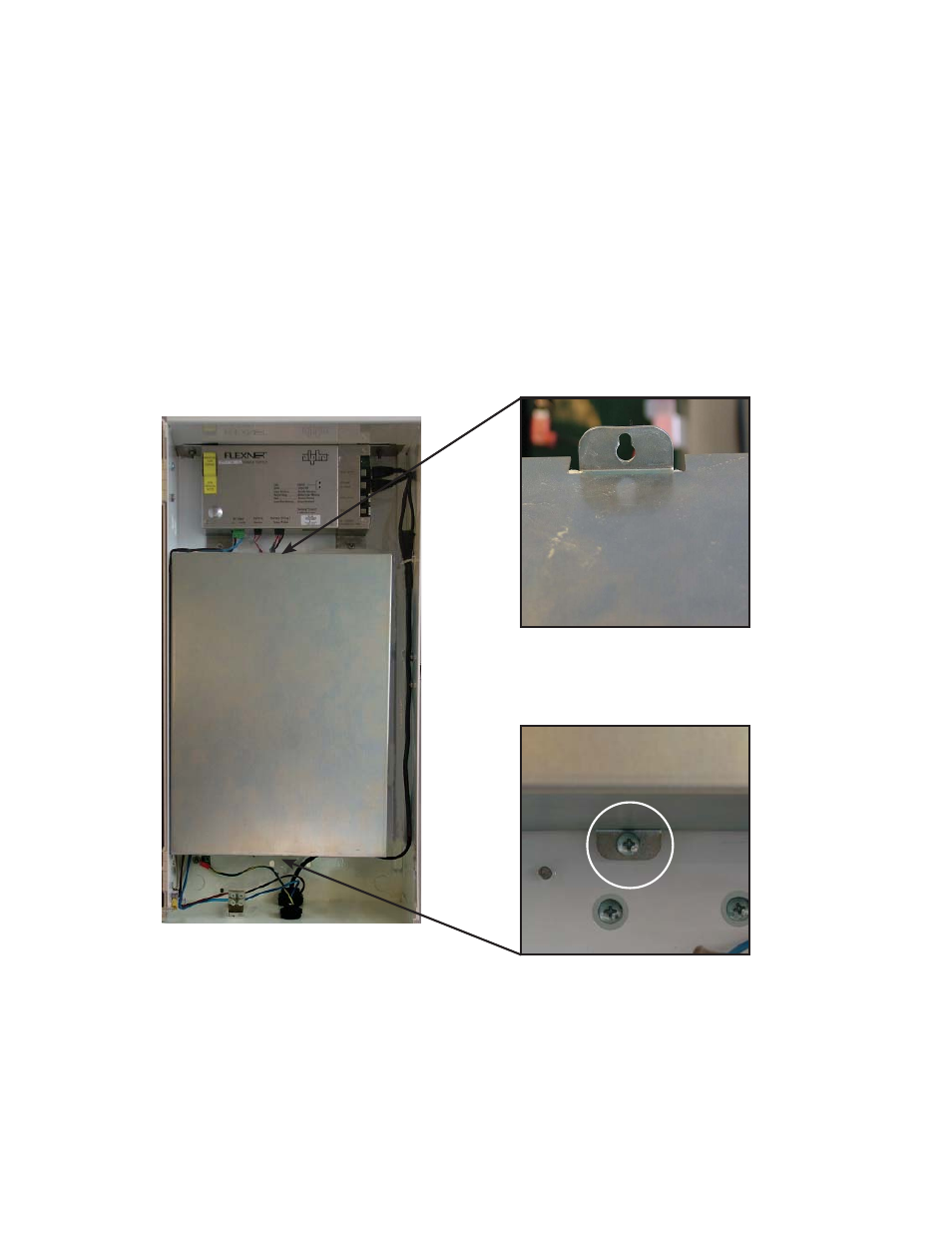

Fig. 6-2, Insulated Battery Box Installation
