1.0 Introduction
Alpha’s FlexNet MPS48-12M multipurpose power supply provides primary and standby power to
outdoor mesh access points in switched-streetlight applications. The MPS48-12M interface module
includes connections for the radio, Ethernet backhaul, and Local Craft Port. The MPS48-12M is
supported by a full complement of options including batteries, 120Vac or 230Vac battery heater
board, and preconnectorized communications cables.
Key Features:
• Supports applications with AC power available only at night from switched streetlights
• Rugged outdoor pole-mount 48Vdc UPS battery backup power supply
• Temperature compensated battery charging for optimum battery life
• Preconnectorized cables reduce installation time and errors
• Optional cold weather kit provides extended runtimes in cold conditions
• Local and remote status monitoring and reporting

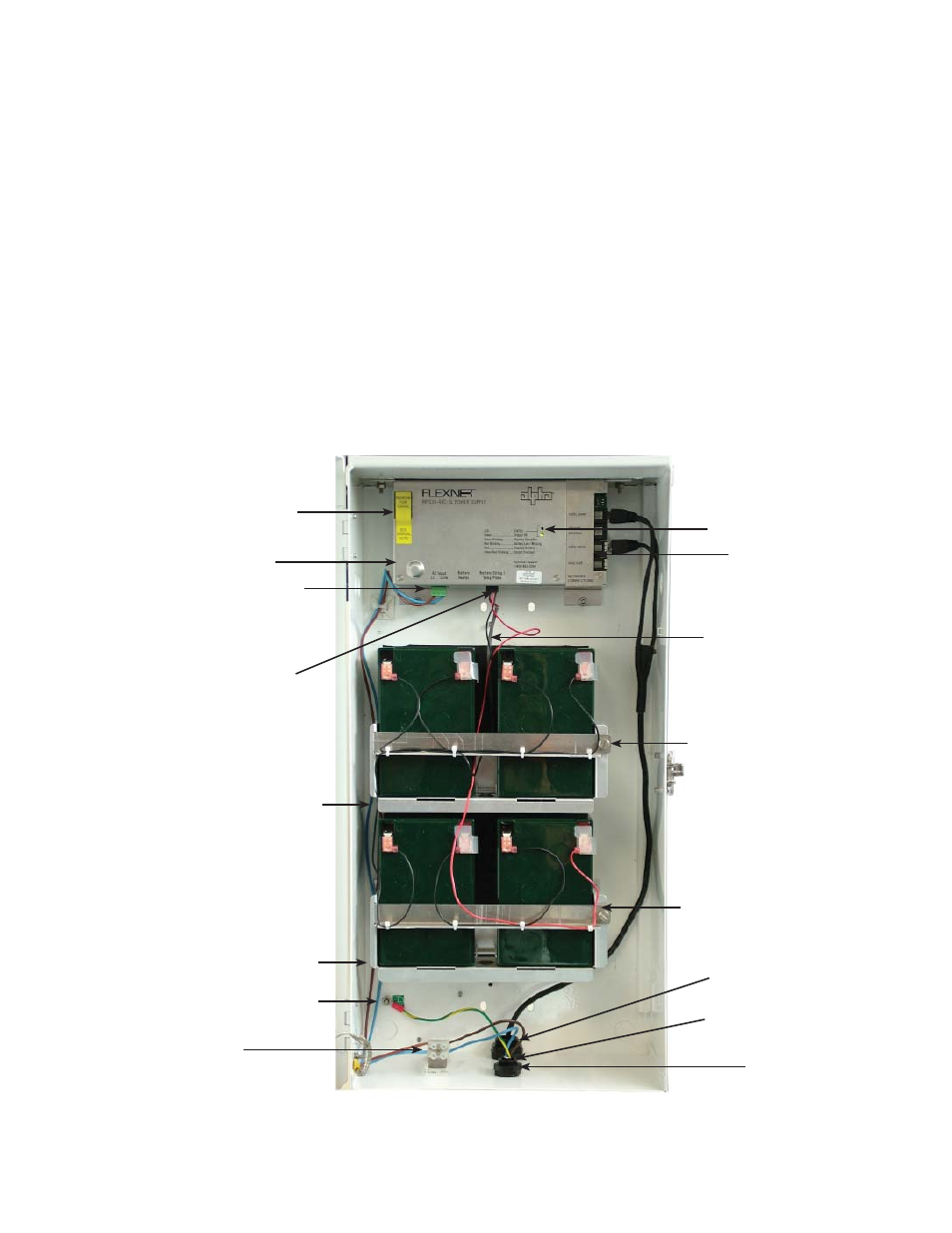

Fig. 1-1, MPS48-12M Overview
AC Input
(1/2" EMT Knockout)
Customer Connections
(3/4" EMT Knockout)
Status LEDs
Power Module
Internal Ground Stud
1/2" EMT Knockout
(optional use)
Power Interface
Module
Input Power
Voltage Select
Input Power
Terminal Block
Battery Retaining
Bracket
AC Input Connector
Battery Temperature
Probe
Battery Heater Mat
Connector
Battery Shelf
Battery Shelf
Battery Retaining
Bracket
