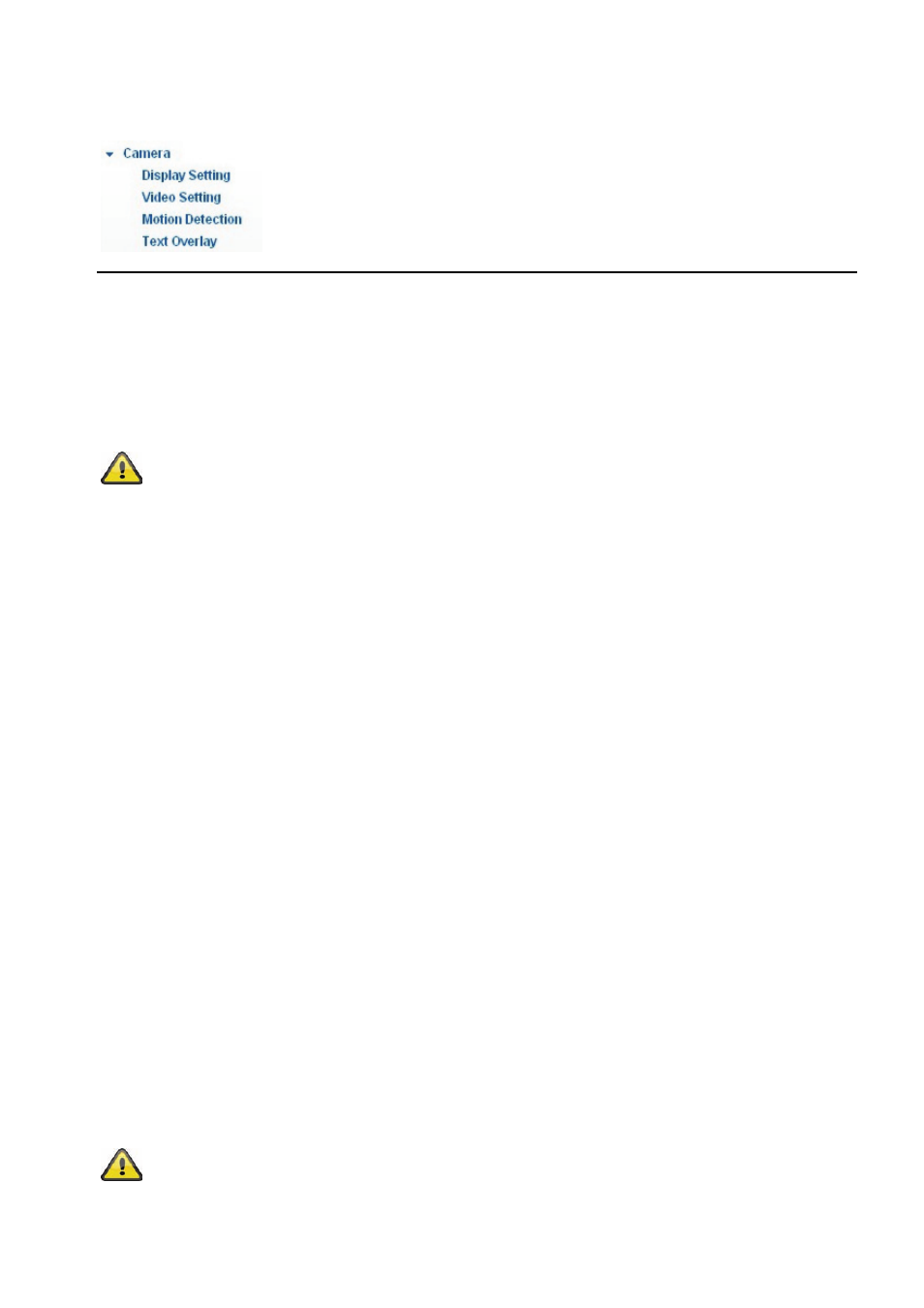

6.2 Camera
Display Setting
Date & time:
Activate this selection box to display the date and time in the live view.
Weekday:
Activate this selection box to show the weekday in the live view.
Date format:
Select the desired date format for the display from the list.
OSD Status:
Select a display mode for the elements (date and time, week and camera name) in the
on-screen display.
Accept the settings by pressing “Save”.
Video Setting
Values for both different video streams can be specified here (e.g. bit rate or resolution).
Stream type:
Stream 1 -> Main stream for local display and storage
Stream 2 -> Sub-stream for mobile access
All values listed under Stream 1 and 2 can be specified individually for each of the
two streams.
Channel name:
A description can be entered here for the camera. A maximum of 12 characters can
be displayed in the live image.
Video Codec type:
Select the compression method here. H.264 has the highest compression rate. The
following options are available:
Stream 1: H.264
Stream 2: H.264/MJPEG
Resolution:
Select the resolution values here.
Image quality:
Select an image quality level here.
Stream type:
A constant bit rate or variable bit rate can be selected here.
Constant bit rate ->
The camera limits the bit rate to the specified value. The
image quality is automatically reduced or adjusted accordingly.
Variable bit rate ->
The camera increases or reduces the bit rate depending on
the requirements (up to max. 16 MB/sec). If increased movement occurs in the
video image, then the required bit rate will increase rapidly (H.264, differential image
procedure).
Max. Bitrate:
Maximum value for “Constant bit rate” mode
Frame Rate:
Setting for the displayed video frame rate. The displayed frame rate is strongly
dependent on the network performance (bandwidth).
Multicast Address:
When using “Multicast”, the video data is distributed to the clients from a Multicast
router. The load on the network camera does not increase, even when multiple
users are logged on simultaneously. Enter the IP address of the Multicast router
here.
RTSP Port:
Network port for data streaming via RTSP protocol.
Mirror:
Horizontal or vertical mirror of live video image
Exposure Mode:
Image exposure mode Auto or manual setting
Max. Exposure Time:
Setting for the maximum value of the exposure time
Gain:
Maximum gain value for the video processing
Accept the settings by pressing “Save”.
