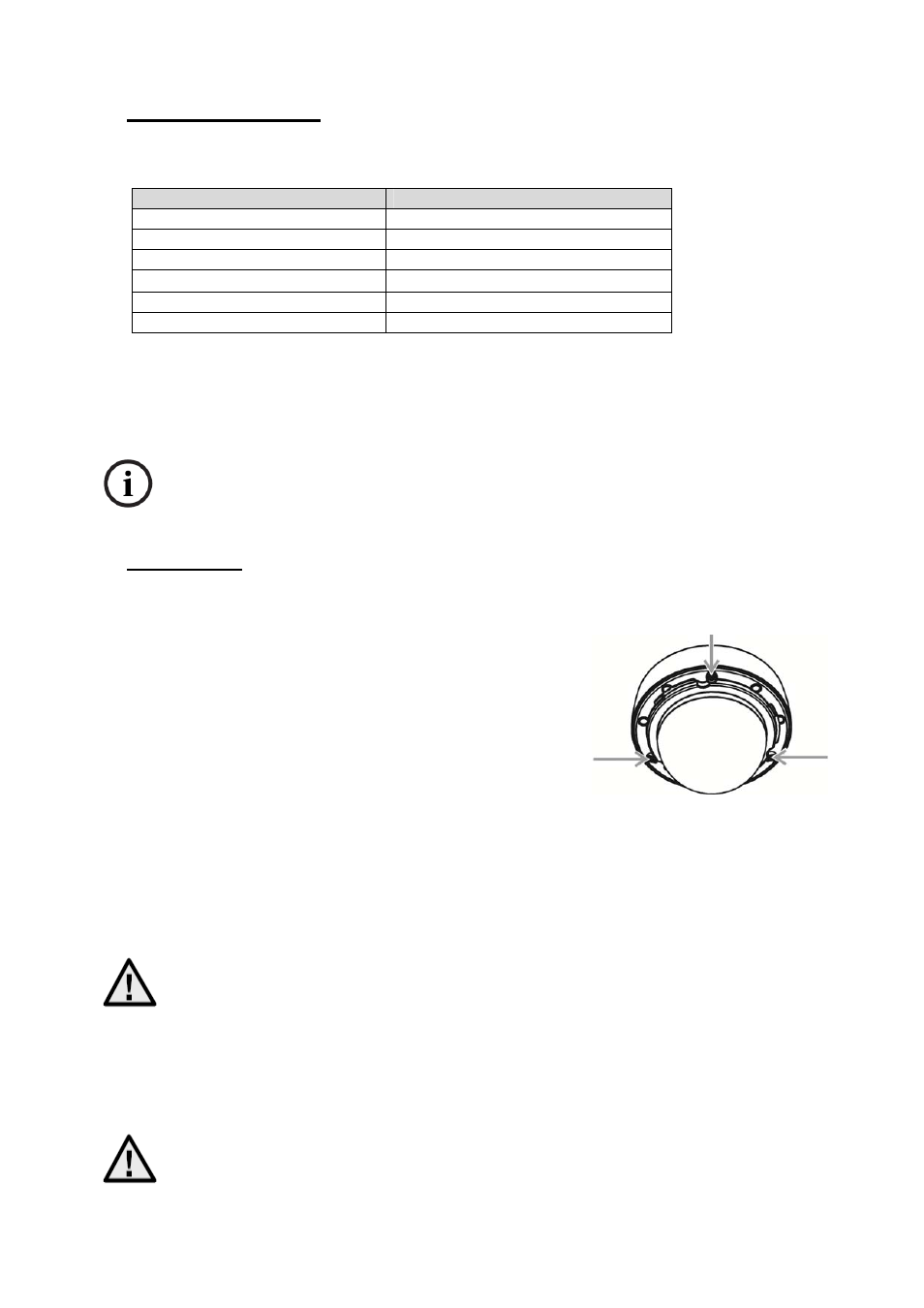

5. Device description
5.1 Overview – Model numbers
Model number TVHD71000
Resolution 1080p / 2.0 MPx
WDR √
DNR √
Day & Night (IR swivel filter) √
IR LEDs No
Operating voltage 12 V DC
5.2 Unpacking the device
Handle the device with extreme care when unpacking it.
If the original packaging has been damaged, inspect the device. If the device shows signs
of damage, return it in the original packaging and inform the delivery service.
6. Installation
6.1 Removing the dome
Firstly, remove the white dome ring by turning it anti-
clockwise.
Then loosen the three adjustment screws on the dome. The
dome can now be removed.
6.2 Laying the cables
The cables can be laid on the side (so that they are visible) or through the underside (so that they
are hidden). A cable connection (M25X1.5) is attached to the housing to protect against moisture.
The cable connection and the connecting cable are pre-installed on the side as standard.
Carefully loosen the fixing screw for the cable inside the camera. Carefully loosen
both connecting cables (round plug for HD-SDI signal and two-pin plug for power
supply).
Open the union nut of the cable connection and remove the cable connection with the connecting
cable. Remove the cover and the underside of the camera. Feed the connecting cable through the
opening on the underside and screw the cable connection into the opening. Then connect the cable
connection correctly with the union nut.
The connections for HD-SDI video signal and power supply inside the camera must be
carefully reinstalled. Then fix the cable using the fixing screw.
