PTZ control
26

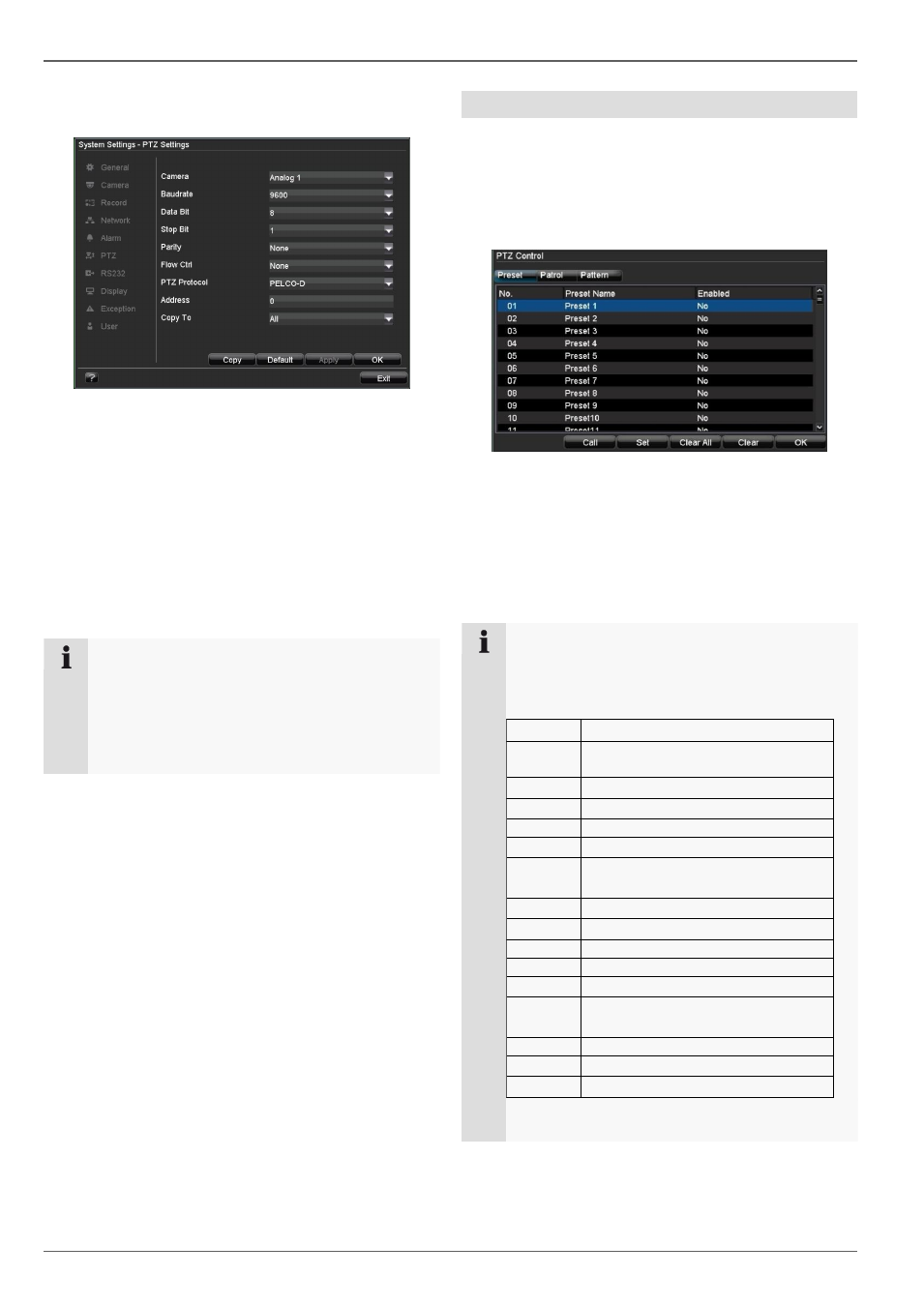

PTZ Settings
The following settings are necessary on the PTZ camera:
The settings are used for configuring the camera on the
corresponding connections.
1. Select the installed camera.
2. Enter the data of the connected camera.
3. The address (ID) is used to clearly identify and con-
trol the PTZ camera.
4. If several cameras of the same type are connected,
then you can copy the settings to the other connec-
tions.
5. Exit the settings by pressing “Apply” and “OK”.
Note
Compare the settings with the technical data of
the connected camera.
If a connected camera does not work correctly,
then check the entered parameters (baud rate,
data bit etc.).
Preset Settings
Presets are previously defined locations of a PTZ cam-
era. Various positions can be defined for each PTZ cam-
era. The cameras can then pan and tilt quickly to the cor-
responding locations.

Select the camera in the control panel, then click on
“Preset Settings” in the pop-up menu:
1. Pan, tilt and zoom the camera to the desired posi-
tion.
2. Select “Preset 1” from the list.
3. Click on “Set”. The position is now set as “Preset 1”.
4. Repeat steps 1 –3 to define further presets.
5. Exit the settings by pressing “Apply” and “OK”.
Note
When using ABUS PTZ-Cameras with the Pelco-
D protocol some presets are predefined and can-
not be used.
Preset Beschreibung
1~64,
100~200 Calls preset 1~64 &, 100~200
65 Display preset Status
66 Starts Auto Scan
67 Auto Flip mode On/Off
68 Camera reset
69 Digital Slow Shutter function
On/Off
71~78 Calls tour 1~8
81~88 Calls pattern 1~8
91 Calls zero Position
92 Freezes image
93 BLC-Function On/Off
94 Switches between day / night /
auto mode
95 Calls OSD menu
96 Focus adjust
97 Enable/Disable all alarms
Further information can be found in the manual of
the PTZ-Camera.
