2
10
7
6
9
11
3
5
1
4
8
3.50
.56
2.56
FLOW
OUTLET INLET
3.12 DIA
ITEM DESCRIPTION
When ordering
parts, please
specify:
• All nameplate data
• Description
• Part Number
• Item Number
• Material
*Recommended Spare Parts

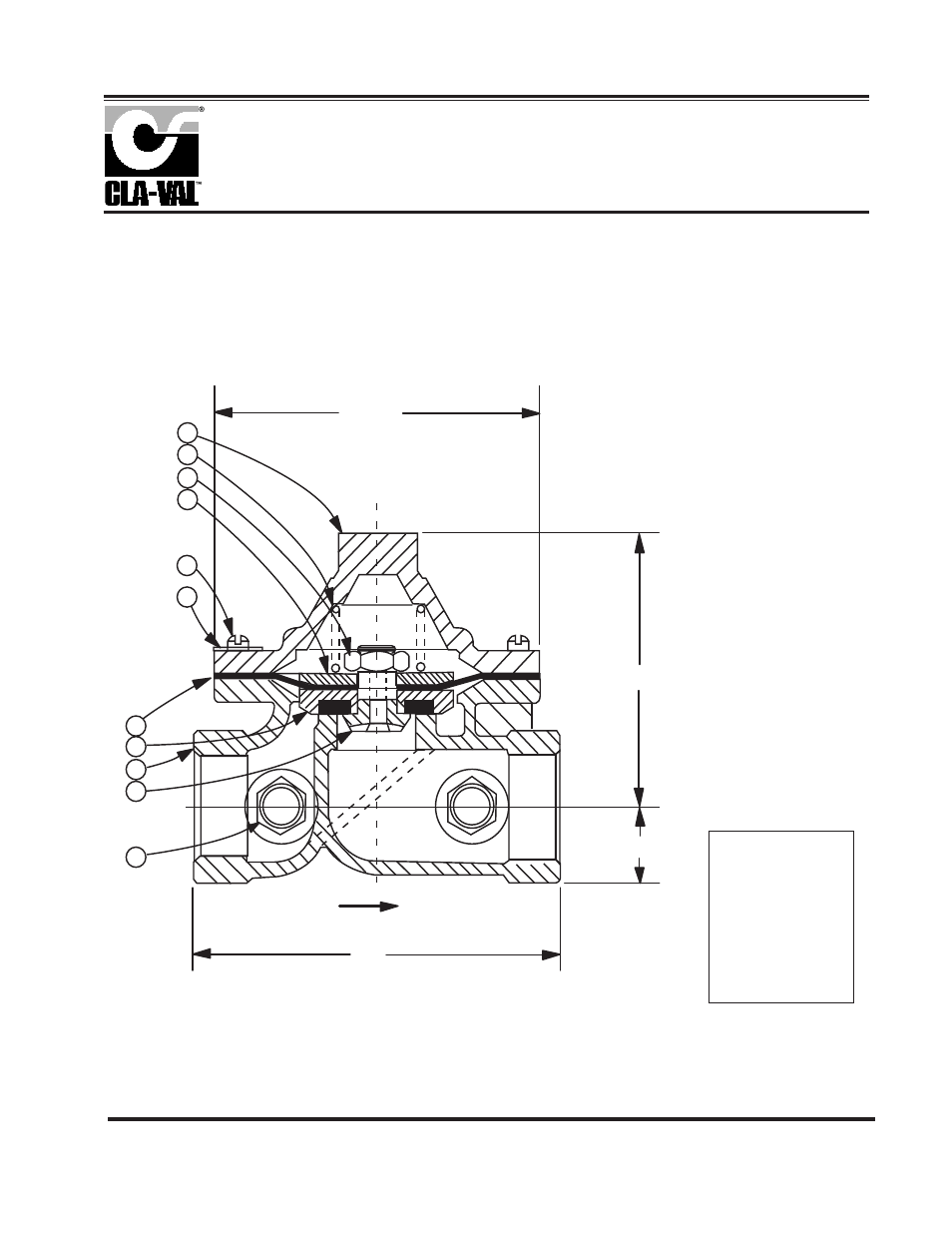

1/2" & 3/4 Check Valve
81-01
CLA-VAL
Copyright Cla-Val 2008 Printed in USA Specifications subject to change without notice.
P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: 949-722-4800 • Fax: 949-548-5441 • E-mail: [email protected] • Website cla-val.com
©
PL-81-01 (R-1/08)
PARTS LIST
1. Body 1
2. Cover 1
*3. Diaphragm 1
4. Guide Disc 1
*5. Disc Retainer Assembly 1
7. Nut Hex 3/8 - 24UNF 28 1
8. Plug Pipe Hex NPT 2
9. Screw, Fil HD 10 32UNF 2 x 2LG 8
10. Spring 1
11. Nameplate 1
