Cla-Val 750B-4KG - Manual (Page 20)

A
2.50
A
2.75
SECTION
AA
3/8 N.P.T.
1.25
1.50
3/8 N.P.T.
BOTH ENDS
6
5
4
1
3
2
8
7
Outlet Inlet
Flow

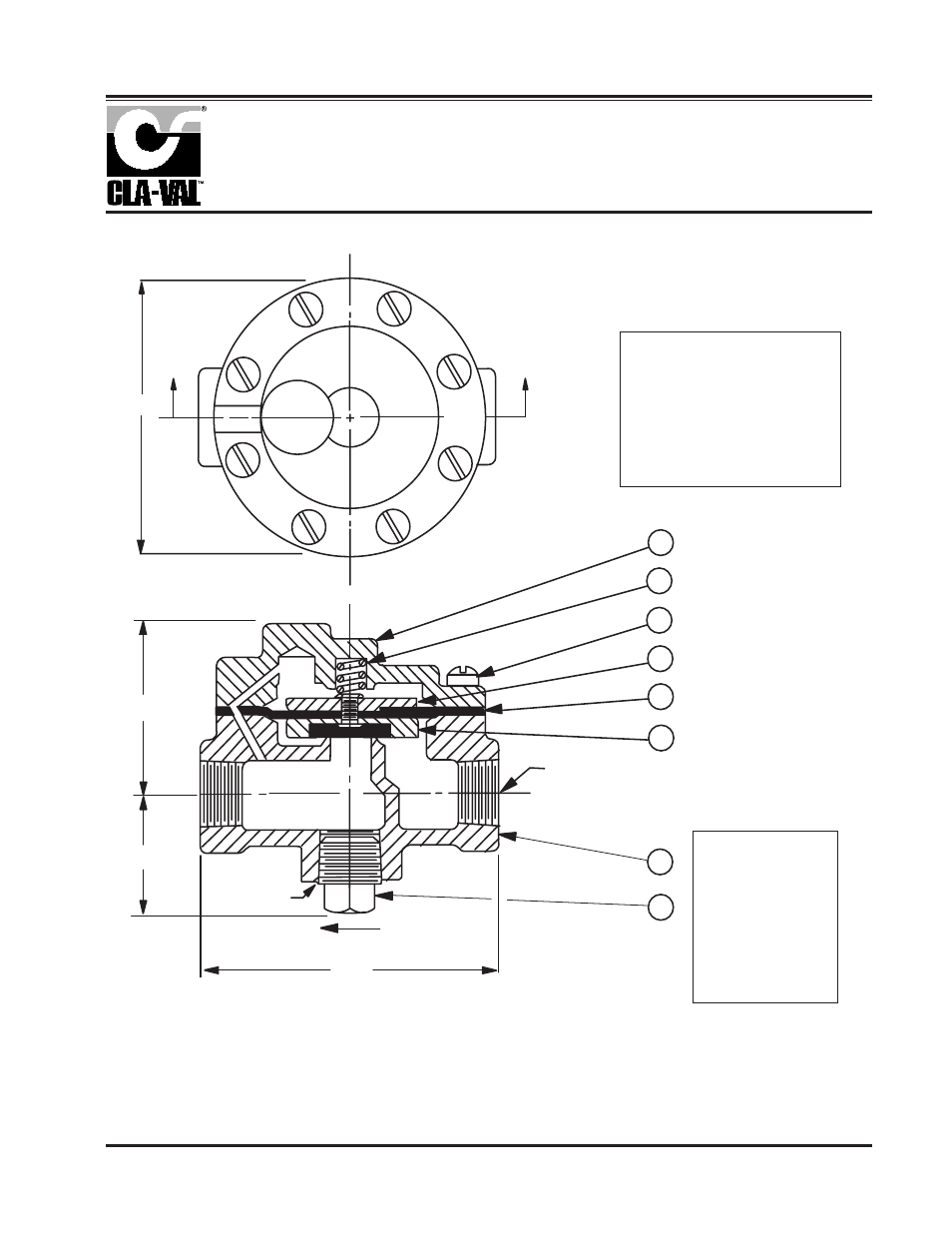

1. Cover Screw (8 Required)
2. Cover
*3. Spring
4. Diaphragm Washer
*5. Diaphragm
*6. Disc Retainer Assembly
7. Body Plug (3/8 NPT)
8. Body (Threaded)
ITEM DESCRIPTION
When ordering
parts, please
specify:
• All nameplate data
• Description
• Part Number
• Item Number
• Material
*Recommended Spare Parts
3/8" Check Valve
81-01
PARTS LIST
