Item
No.
No.
Req'd
Material
(Standard)
Description
1
2*
3
4
5
6
7
8
Body
Liner
Nameplate
Drive Screw
Liner Retainer
Retaining Ring
Slip-on Flange
Flange Retainer Ring
1
1
1
2
1
1
2
2
316L Stainless Steel "L"
Natural Rubber
Aluminum
316L Stainless Steel
316L Stainless Steel
316L Stainless Steel
Steel-Cad. Pl.
Steel-Cad. Pl.
*Recommended Spare Part

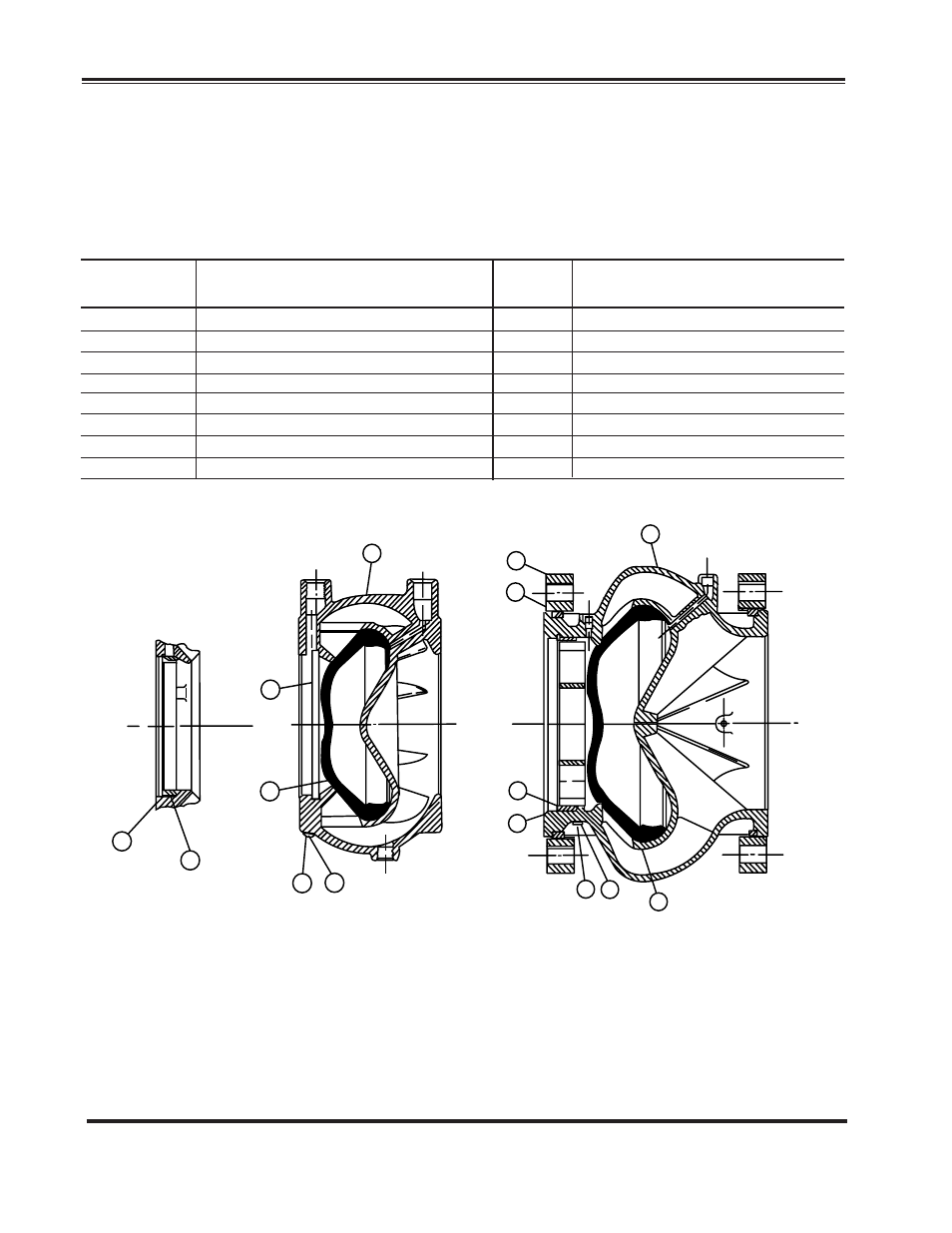

4" Wafer Style Valve 2-3" Wafer Style Valve 6"-12" Flanged Valve
6
5
5
1
2
3 4
5
6
4 3
2
8
7
1
When ordering
please specify:
• All nameplate data
• Description
• Part Numbers
• Item Number
• Material
