Arrangement 8: four-bearing overhung design – Spencer Single-Stage Scroll Blowers User Manual
Page 8
1
2
3
4
5
6
7
9
8
8

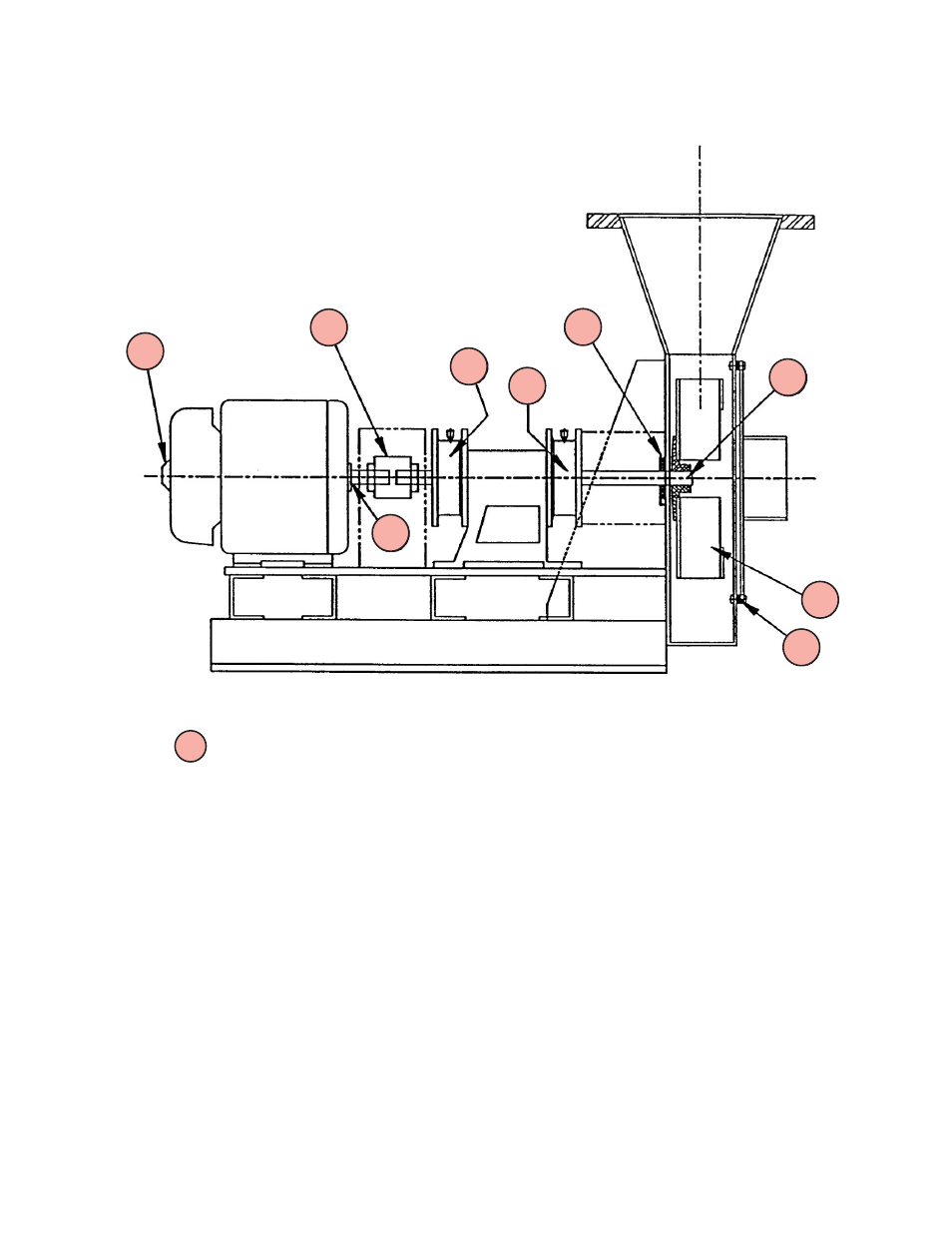

Recommended spare parts
1 - Flexible Coupling
2 - Coupling End Bearing
3 - Blower End Bearing
4 - Division Head Packing
5 - Shaft
6 - Impeller
7 - End Head Gasket
8 - Drive End Motor Bearing
9 - Opposite Drive End Motor Bearing
Arrangement 8: Four-Bearing Overhung Design
