3
S-DGAS65/S-AS65/S-TIFAS65 kits: DO NOT
include the mechanically fastening clamp down
drain due to the variance of material by local
code. This a residential drain that is available
through Infinity Drain or your local plumbing
supply from various manufacturers (i.e. Oatey®,
Sioux Chief™, JSC™, PROFLO™, Matco-Norca™).
S-DGAS99/S-AS99/S-TIFAS99 kits are
provided with a (CDI43W) Cast Iron
mechanically fastening clamp down drain
body. This item can be substituted for an ABS
or PVC drain body (CDA 43/CDP 43).
S-DGAS65/S-AS65/S-TIFAS65 kits: NO
INCLUYE la sujeción mecánica del drenaje
por la razón que varía el material de código
local. Este drenaje es residencial que está
disponible a través de Infinity Drain o su
local suministro de plomería de diversos
fabricantes. (i.e. Oatey®, Sioux Chief™, JSC™,
PROFLO™, Matco-Norca™).
S-DGAS99/S-AS99/S-TIFAS99 kits son proveído
con (CDI 43 W) drenaje en hierro fundido. Este
artículo puede ser sustituto en ABS en plástico, o
PVC. (CDA 42/CDP 42/CDA 43/CDP 43).
Available Clamp Down Drains:
CDI 22 Clamp Down Drain Cast Iron
CDA 42 Clamp Down Drain, ABS,
4” Throat, 2’ No Hub Outlet
CDP 22 Clamp Down Drain PVC
CDI 43 Clamp Down Drain, Cast Iron,
4” Throat, 3” No Hub Outlet
CDA 22 Clamp Down Drain ABS
CDP 43 Clamp Down Drain, PVC,
4” Throat, 3” No Hub Outlet
CDI 42 Clamp Down Drain, Cast Iron,
4” Throat, 2” No Hub Outlet
CDA 43 Clamp Down Drain, ABS,
4” Throat, 3” No Hub Outlet
CDP 42 Clamp Down Drain, PVC,
4” Throat, 2” No Hub Outlet
CDI43W Clamp Down Drain,
Cast Iron with threaded ring
Optional Components: (Not Included)
SLA 65 Stainless Steel 90° Angle
Joiner for LC/SC Channel
ERB Eccentric Reducer
Bushing 4”x2”
SE 65 2” Stainless Steel
End Section
TNRN Stainless Steel Threaded
Nipple Extension
TE 65 2” Stainless Steel
End Section
SC 6548 48" Stainless Open
Ended Channel
UCP 2 Universal 2” Clamping Plate TC 6548 48" Stainless Open
Ended Channel
SC 6596 96" Stainless Open
Ended Channel
UCP 4 Universal 4” Clamping Plate TC 6596 96" Stainless Open
Ended Channel
SHA 65 Stainless Steel 90° Joiner
for HC/TC Channel
2” clamp down drain
not included in kit

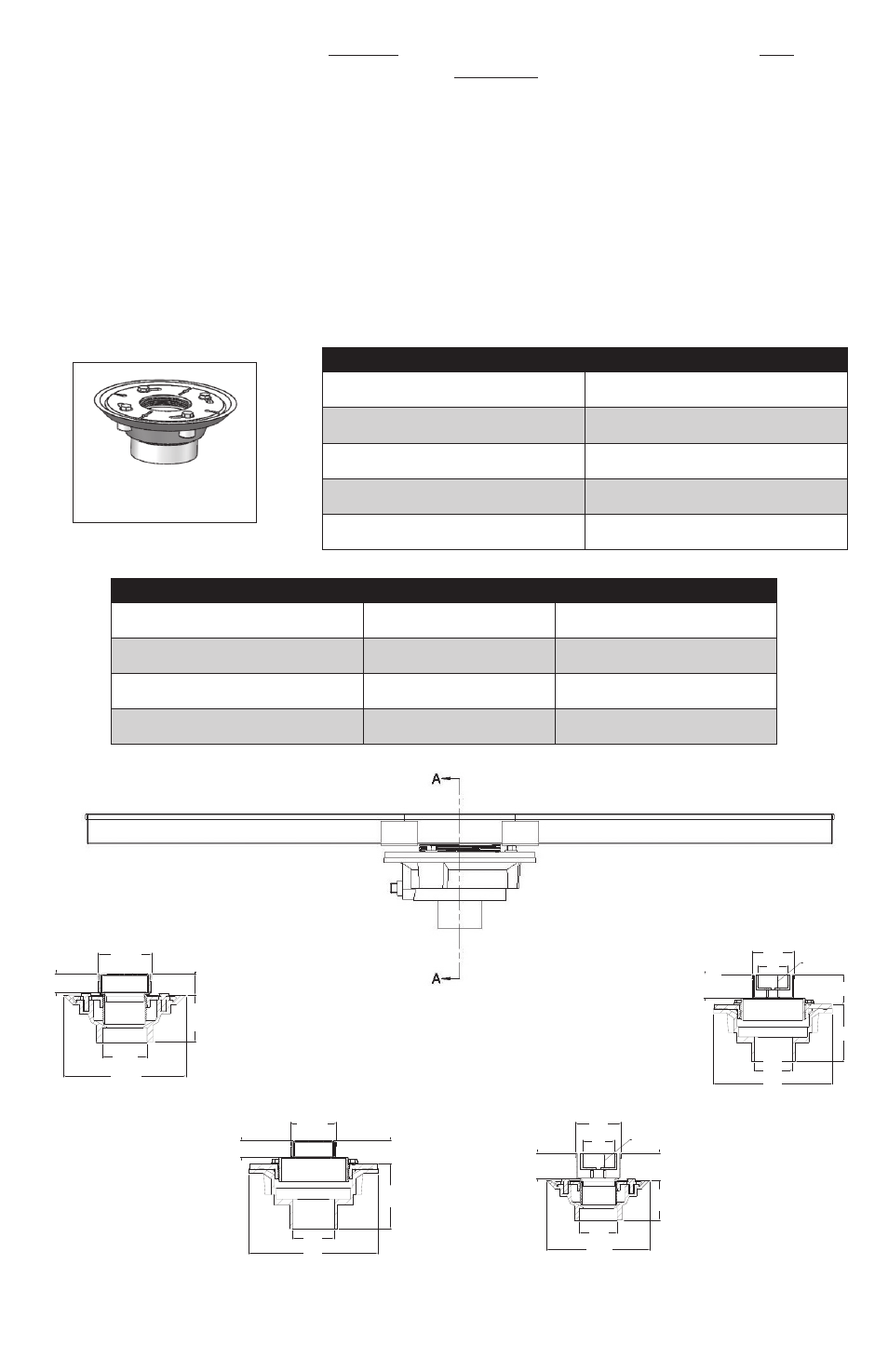

Section A-A
S-TIFAS 65
Section A-A
S-DGAS 65, S-AS 65
Section A-A
S-DGAS 99, S-AS 99
Section A-A
S-TIFAS 99
1"
2⅞"
1³⁄¹⁶"
2½"
6½"
2"
1"
2⅞"
1⁷⁄¹⁶"
4¹⁄¹⁶"
8"
3"
1⅝"
2⅞"
2"
1¹¹⁄¹⁶"
2½"
6½"
2"
¾"
1⅝"
2⅞"
2"
2"
4"
8"
3"
¾"
