Gotham 6 AF Open Reflector DTT SpecSheet - Manual (Page 2)

GOTHAM ARCHITECTURAL DOWNLIGHTING | 1400 Lester Road Conyers GA 30012 | P 800.315.4982 | gothamlighting.com
© 2003-2014 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 01/21/14. Specifications subject to change without notice. PAGE 2 OF 3
AF-6-OPEn-DTT
DIM
EN
SIO
N
AL D
AT
A
EL
EC
TR
IC
AL
N
OT
ES
6” AF
Open Reflector
Horizontal Lamp, Double Twin-Tube
PH
OTO
M
ET
RY

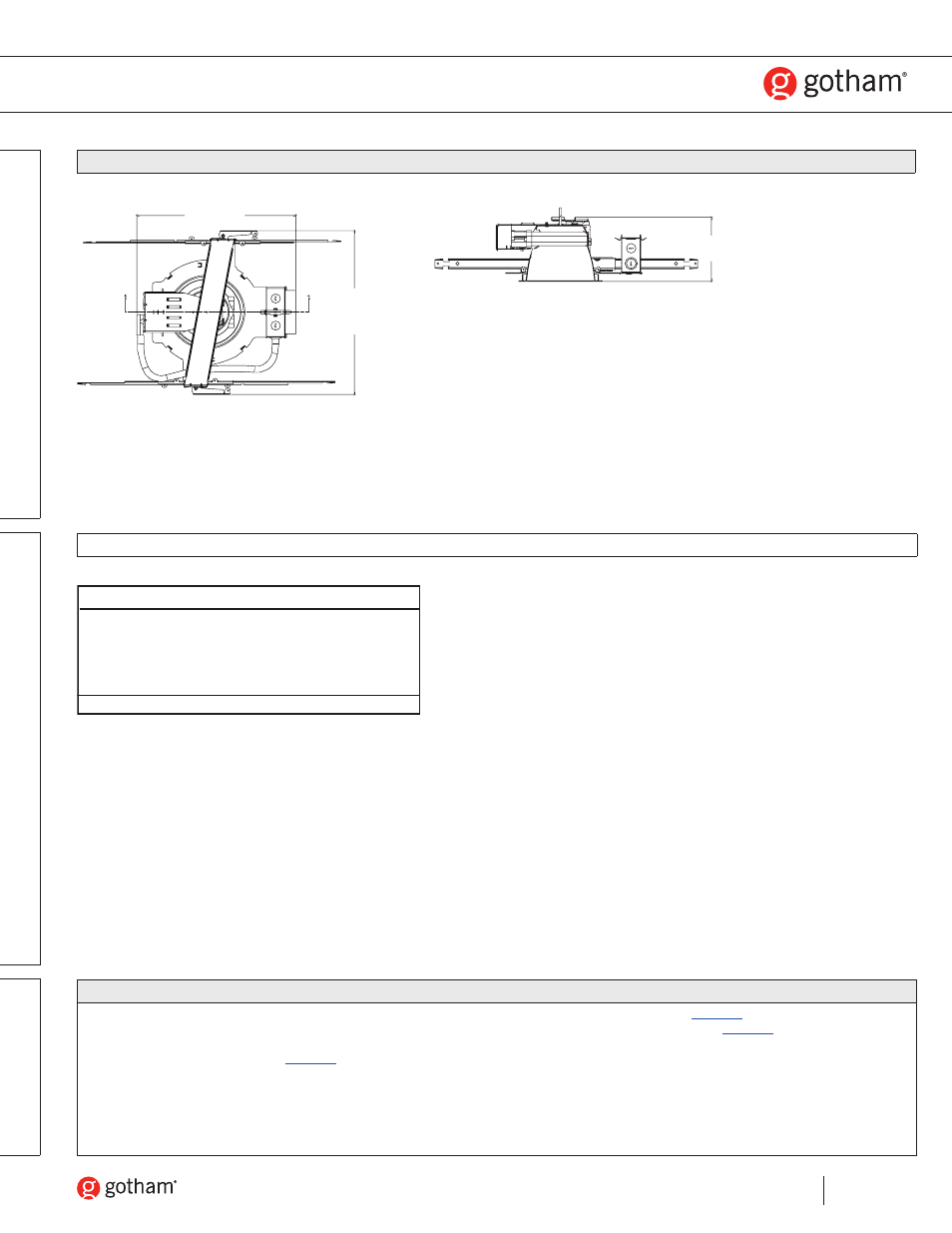

All dimensions are inches (centimeters) unless otherwise noted.
ORDERING NOTES
1. Not available with finishes.
2. Multi-volt electronic ballast capable of operating on any voltage from 120V
through 277V, 50 or 60 Hz.
3. For additional ballast types, refer to TECH-250 .
4. Not available with 13DTT.
5. Available in 120V or 277V only.
6. For dimensional changes, refer to TECH-140 .
7. For compatible RELOC systems, refer to TECH-110 .
8. Not available with emergency options.
9. Meets codes that require in-fixture disconnect.
10. Must specify wattage. EX.:WRL32
Aperture: 6-1/4 (15.9)
Ceiling opening: 7-1/8 (18.1)
Overlap trim: 7-5/8 (19.4)
Lens recess: 1-3/4 (4.4)
6-3/4 (17.1)
15-3/4 (40.0)
15-7/8
(40.3)
Annual*
Energy
Cost
$5.51
$6.08
Lamps
(2) 18W DTT
(2) 26W DTT
Lamp
Lumens
2500
3200 0.98
1.00
Input
Watts
38
55
* Comparative yearly lighting energy cost per 1000 lumens
LER.DOL
44
40
Ballast
Factor
ENERGY (Calculated in accordance eith NEMA standard LE-5A)
