AF-10-OPEN-TRT
DIM
EN
SIO
N
AL D
AT
A
EL
EC
TR
IC
AL
N
OT
ES
10” AF
Open Reflector
Horizontal Lamp, Triple-Tube
PH
OTO
M
ET
RY

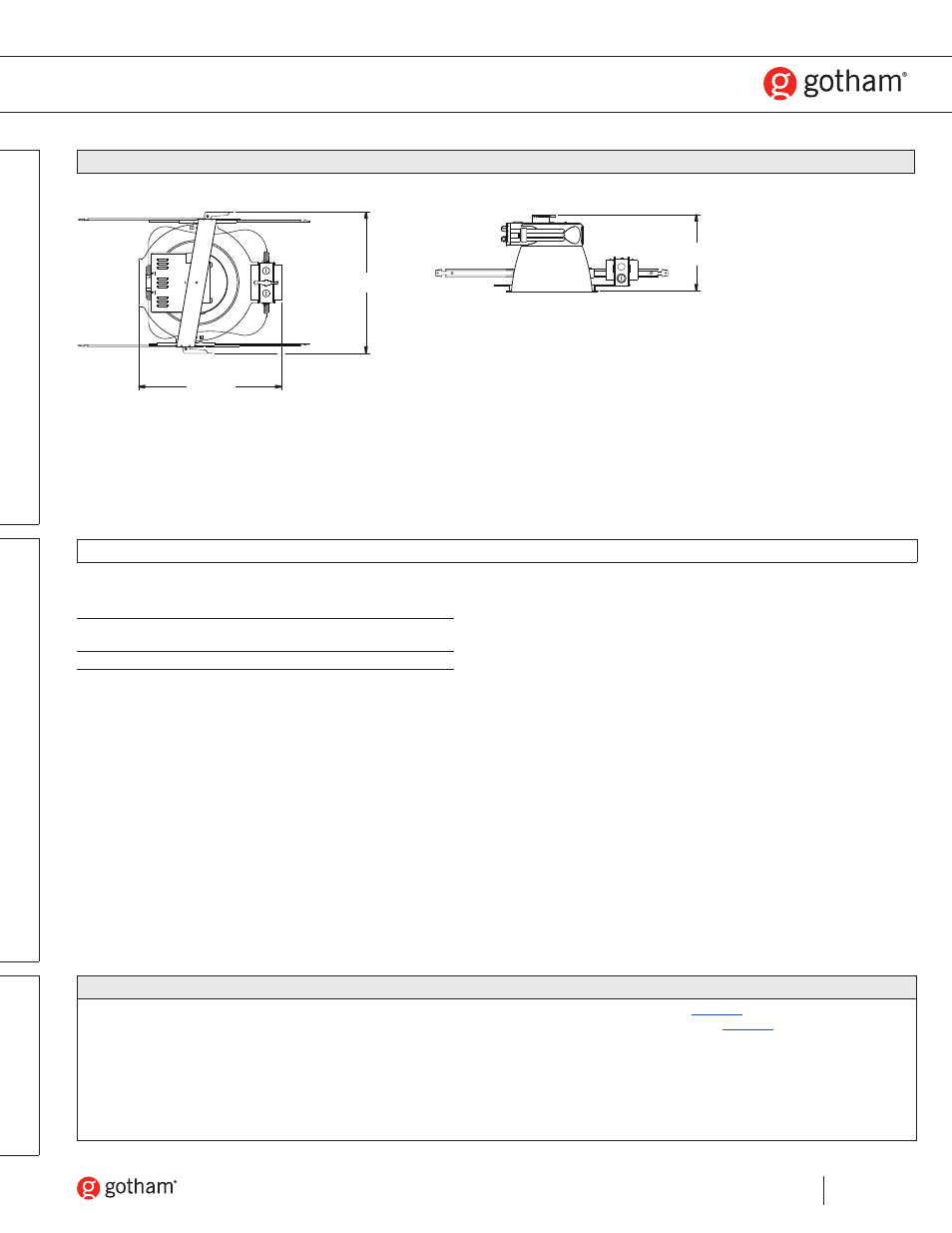

All dimensions are inches (centimeters) unless otherwise noted.
Aperture: 9-3/4 (24.8)
Ceiling Opening: 10-1/2 (26.7)
Overlap Trim: 11-1/8 (28.3)
Lens recess: 3 (7.6)
9-3/4 (24.8)
17-1/2
(44.5)
17-3/16 (43.7)
ENERGY
LER.DOL Annual
Lamps
Lamp
Ballast
Input
Energy Cost
Lumens
Factor
Watts
43
$5.55
2/42TRT
6400
.98
90
Calculated in accordance with NEMA standard LE-5.
ORDERING NOTES
1.
Not available with finishes.
2.
Lens position below optical break.
3.
Multi-volt electronic ballast capable of operating on any voltage from 120V
through 277V, 50 or 60 Hz.
4.
Not available with 57W.
5.
Available in 120V or 277V only.
6.
7.
For compatible RELOC systems, refer to
8.
Not available with emergency options.
9.
Must specify wattage. Ex.: WRL32
