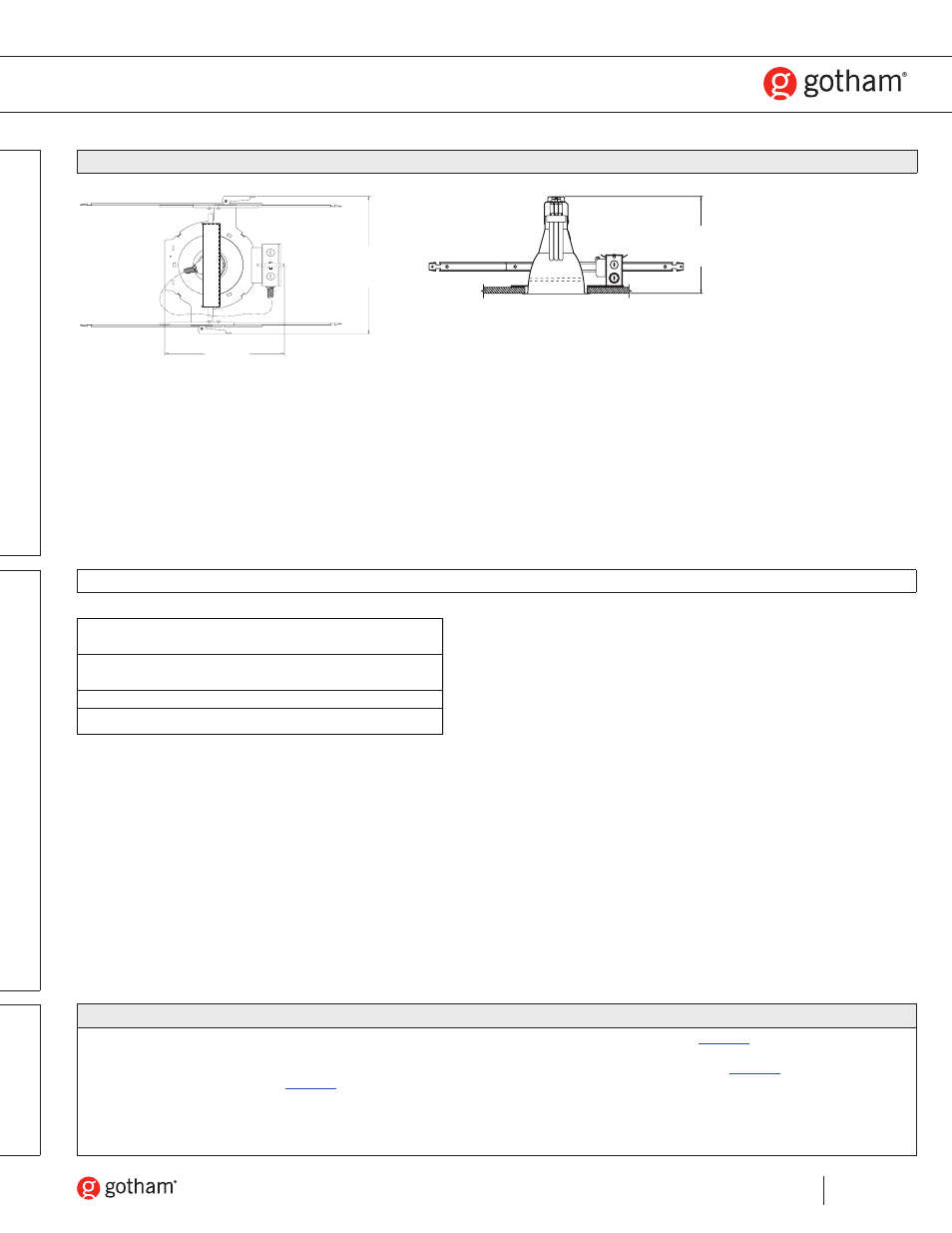

AFV-5-OPEN
DIM
EN
SIO
N
AL D
AT
A
EL
EC
TR
IC
AL
N
OT
ES
5” AFV
Open Reflector
Vertical Lamp, Double Twin-Tube or Triple-Tube
PH
OTO
M
ET
RY
All dimensions are inches (centimeters) unless otherwise noted.
ORDERING NOTES
1.
Not available with finishes.
2.
Multi-volt electronic ballast capable of operating on any voltage from 120V
through 277V, 50 or 60 Hz.
3.
4.
Not available with 13W.
5.
Available in 120V or 277V only.
6.
For dimensional changes, refer to
7.
Not available with MVOLT;must specify voltage
8.
For compatible RELOC systems, refer to
9.
Not available with ELR or ELRHL option.
10. Meets codes that require in-fixture disconnect.
11. Must specify wattage: Ex.: WRL26
Aperture:
5 (12.7)
Ceiling opening: 5-1/2 (14.0)
Overlap trim:
6-1/4 (15.9)
9-1/8
(23.2)
Lens recess:
1-1/2 (3.8)
13-7/8
(35.2)
13-1/8
(33.3)
ENERGY
Annual
Lamp
Ballast
Input
LER.DOH Energy Cost
Lamps
Lumens
Factor
Watts
30
$7.99
(1) 26TRT
1800
.98
27
Calculated in accordance with NEMA standard LE-5.
