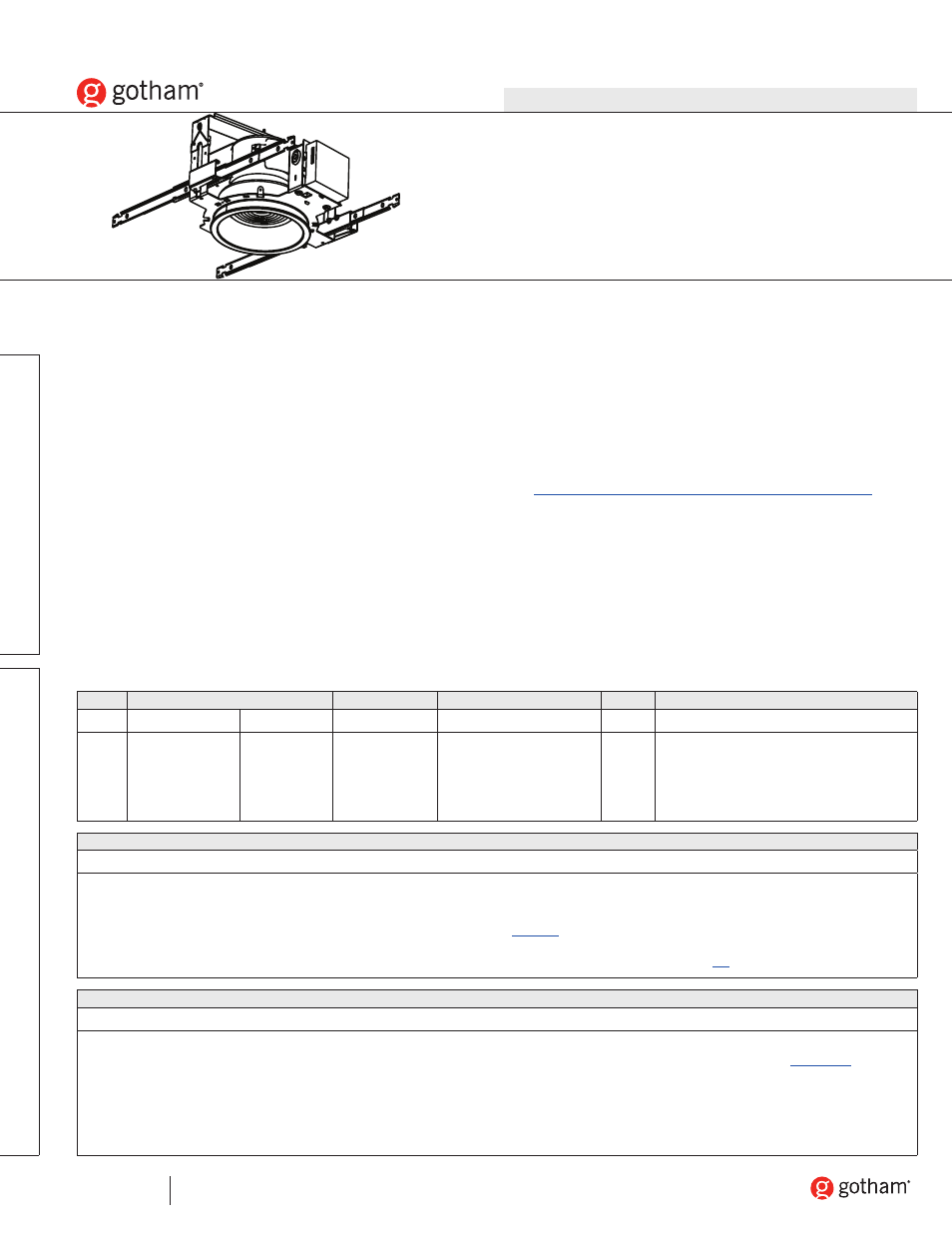

LGF-8-ROUND-LENS

Gotham Architectural Downlighting
Compact Fluorescent Downlights

8” LGF

Round Lens

Wet Location
Horizontal Triple-Tube Lamp

FE

AT

U

RE

S

OR

DER

ING

IN

FO

RM

AT

ION

OPTICAL SYSTEM

Aluminum upper reflector coated with highly reflective white paint provides high
efficiency and an evenly illuminated aperture appearance.

Available with tempered prismatic lens (T73), flat Fresnel lens (FFL) or flat opal
lens (FOL).

Regressed white door (RW) or stepped black baffle (SB) provided standard with
white painted flange.

Door is retained by self-aligning, torsion support springs, preventing gaps
between door and ceiling.

MECHANICAL SYSTEM

16-gauge galvanized steel mounting/plaster frame with integral yoke to retain
optical system. Maximum 1-1/2” ceiling thickness.

16-gauge galvanized steel mounting bars with continuous 4” vertical adjust-
ment are shipped pre-installed. Post installation adjustment possible without
the use of tools from above or below ceiling.

Galvanized steel junction box with hinged access covers and spring latch. Two
combination 1/2”–3/4” and three 1/2” knockouts for straight-through conduit
runs. Capacity: 8 (4 in, 4 out) No. 12 AWG conductors, rated for 90°C.

ELECTRICAL SYSTEM

Galvanized steel lampholder housing.

Horizontally-mounted, four-pin, positive-latch, thermoplastic socket(s).

Class P, thermally protected, high-power-factor, electronic ballast(s) mounted to
the junction box.

LISTING

Fixtures are UL Listed for thru-branch wiring, non-IC recessed mounting and wet
locations. Listed and labeled to comply with Canadian standards.

WARRANTY

1-year limited warranty. Complete warranty terms located at

www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx

EXAMPLE: LGF 2/26TRT 8RW T73 MVOLT

Series

Number of lamps/

Wattage/Lamp Door frame

Lens type

Voltage Ballast

4

LGF

1
2

18TRT
26TRT

1

32TRT
42TRT
57TRT

2

8RW Regressed

white door

8SB

Stepped
black baffle

T73

Tempered prismatic lens

FFL

Flat fresnel lens

FOL

Flat opal lens

PPC

Prismatic polycarbonate
lens

MVOLT

3

120
277
347

(blank)

Electronic ballast (standard)

ECOS

Lutron

®

EcoSystem

®

electronic dimming

ballast. Minimum dimming level 5%.

ADEZ

5

Advance Mark 10

®

electronic dimming bal-

last. Minimum dimming level 5%

Options

CP

Chicago plenum

TRDA

6

Tamper-resistant door assembly

DS

Dual switching

GMF

Single, slow-blow fuse (not available with MVOLT)

GLR

Single, fast-blow fuse (not available with MVOLT)

WLP

3500 K lamp (shipped separately)

ELR

7

Emergency battery pack with remote test switch

GSKT

Foam gasketing ships uninstalled

NEPP

8

Interface for Sensor Switch

®

nLight

®

network provided with integral power supply. Refer to

TN-623-01

. Not for use with emergency options.

RRL__

RELOC

®

-ready luminaire connectors enable a simple and consistent factory installed op-

tion across all ABL luminaire brands. Refer to

RRL

for complete nomenclature.

ACCESSORIES order as separate catalog numbers (shipped separately)

SCA8

Sloped ceiling adapter. Degree of slope must be specified (10D, 15D, 20D, 25D, 30D). Ex: SCA8 10D.

NSP5 D ER KIT

Sensor Switch nLight secondary relay and dimming pack device used to switch and dim luminaires powered via an emergency circuit. Refer to

NSP5 D ER KIT

.
