SQF-4
DIM
EN
SIO
N
AL D
AT
A
N
OT
ES

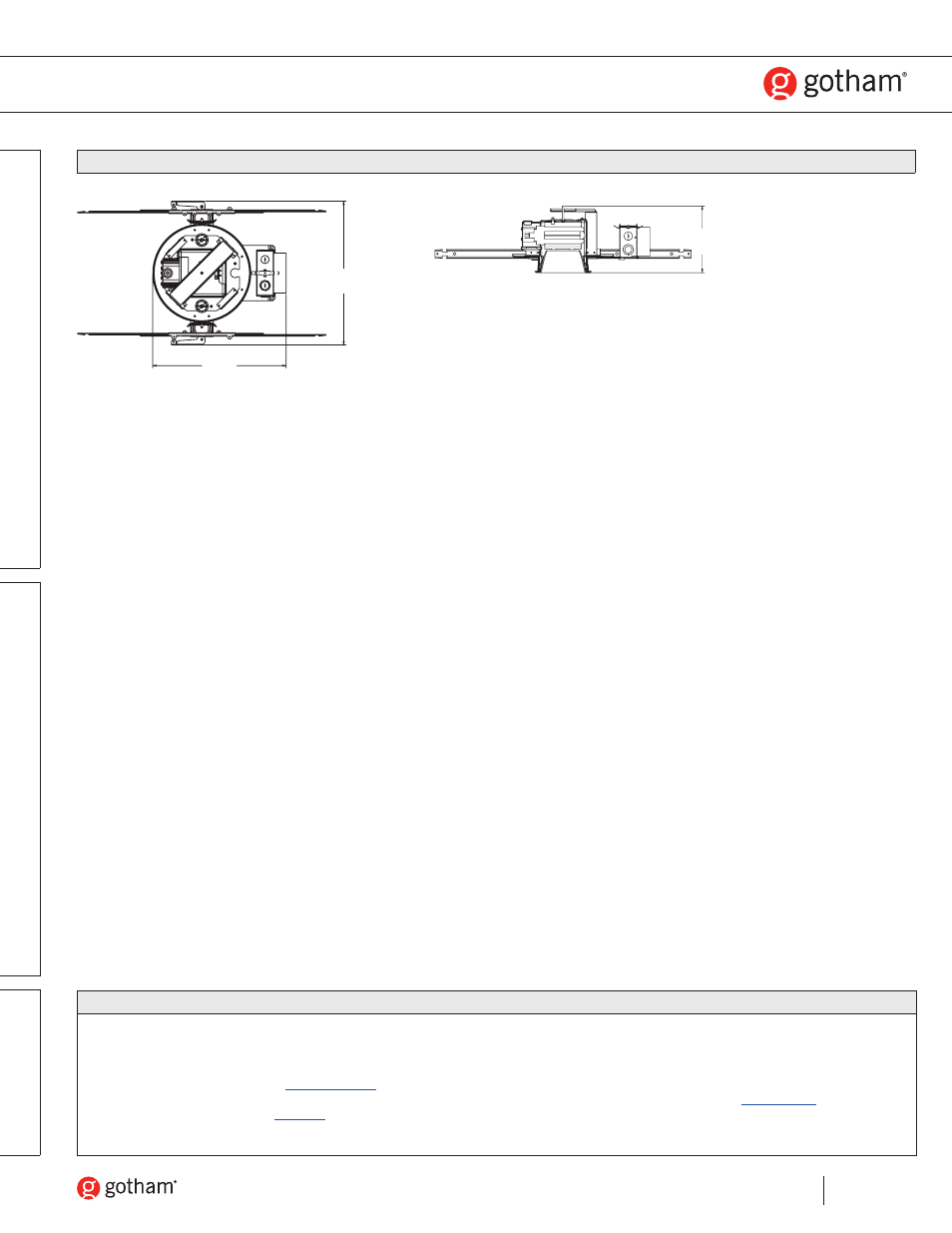

4” SQF
Square Open Reflector
Triple-Tube lamp
PH
OTO
M
ET
RY
All dimensions are inches (centimeters) unless otherwise noted.
ORDERING NOTES
1. Not available with finishes.
2. Available with WR and BR trim colors and SQMT metal trim option.
3. Multi-volt electronic ballast capable of operating on any line voltage from
120V through 277V, 50 or 60HZ.
4. For additional ballast types, refer to Technical Bulletins .
5. Available in 120V or 277V only.
6. For dimensional changes, refer to TECH-140 .
7. Not available with MVOLT. Must specify voltage.
8. Meets codes that require in-fixture disconnect.
9. Requires CSL lens option.
10. Order ships as 3 components: housing, trim and microflange gypsum board.
11. Not available with stepped reflector or MFLG option.
12. For emergency generator/inverter applications order non-nLight enabled fixture
and NSP5 D ER KIT as an accessory. Refer to NSP5 D ER KIT .
13. Not available with white reflector.
14. Not available with black reflector.
14-1/16
(35.7)
15-3/16
(38.6)
Aperture: 4-1/2 (11.4)
Ceiling Opening: 5-1/8 (13.0)
Overlap Trim:
5-3/4 (14.6)
6-13/16
(17.3)
