LGF-10-ROund-LEnS
DIM
EN
SIO
N
AL D
AT
A
N
OT
ES
10” LGF
Round Lens
Wet Location, Horizontal Triple-Tube Lamp
PH
OTO
M
ET
RY
All dimensions are inches (centimeters) unless otherwise noted.
ORDERING NOTES
1.
Will also operate 26DTT 4-PIN lamp.
2.
Not available in 3 lamp configurations.
3.
Multi-volt electronic ballast capable of operating on any voltage from 120V
through 277V, 50 or 60 Hz.
4.
Not available with MVOLT.
5.
Not available with 347V.
6.
Uses Torx T15 rejection pin drive system.
7.
Not available with 57TRT.
8.
9.
Not available with ELR option.
10. For dimensional changes refer to
factory.

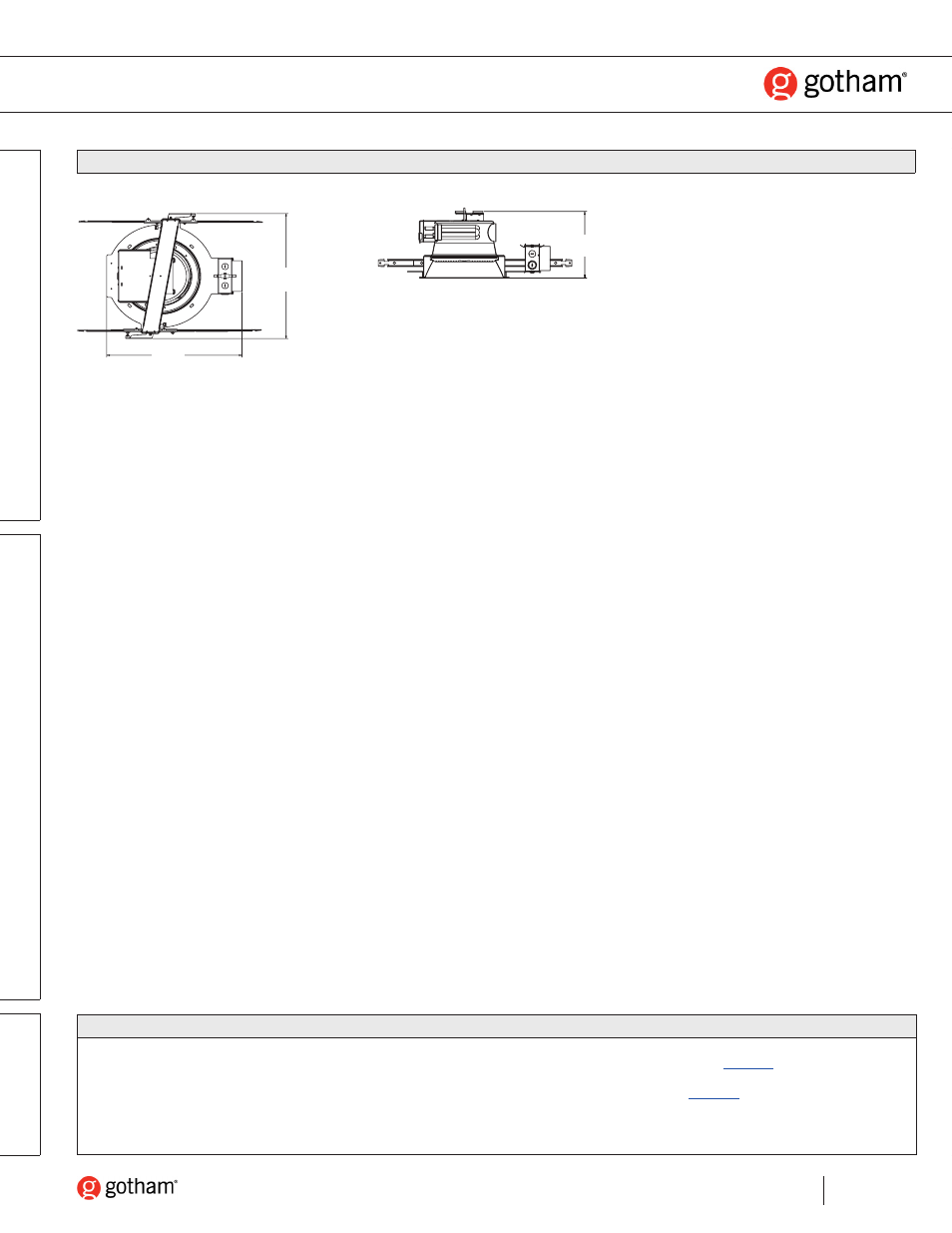

17-3/4
(45.1)
17-1/4
(43.8)
Aperture:
9-3/4 (24.8)
Ceiling Opening: 10-1/2 (26.7)
Overlap Trim:
11-1/8 (28.3)
8-5/8
(21.9)
