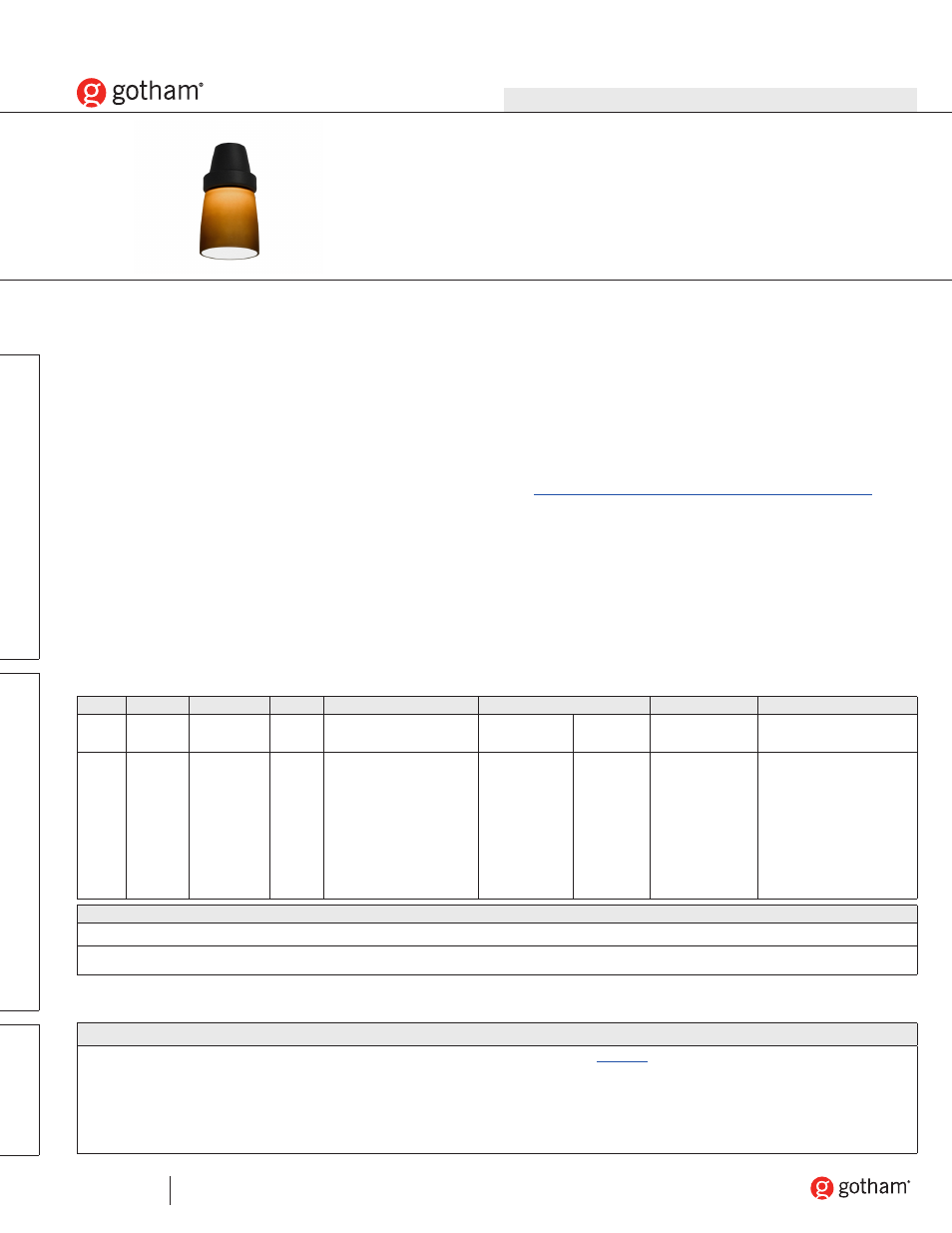

4” pdpf
Luminaire Type:
Catalog Number
(autopopulated):
© 2006-2014 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 01/13/14. Specifications subject to change without notice.
PAGE 1 OF 3
PDPF-4-SHADE
Gotham Architectural Downlighting
Compact Fluorescent Surface Downlights
4” PDPF
Elevations
®
with Glass Shade
Performance Downlight Pendant
Vertical Triple-Tube Lamp
DECORATIVE HOUSING/GLASS SHADE
•
Durable, heavy-gauge aluminum housing. Textured polyester powder paint finish
available in Matte Black, Satin Silver or White.
•
Shade is pressed, colored glass with an acid etched exterior finish and a matte
white painted interior décor. Available in white, amber or blue.
DECORATIVE ELEMENT
•
Four configurations allow customization suitable in any space - black polyester
powder paint.*
•
No Ring (NR): Clean, simple form - no decorative element.
•
Soft Ring* (S): Subtle, formed black aluminum band.
•
Stacked Rings (C): Three black acrylic rings.
•
Gear* (G): Precision-formed from black aluminum.
MOUNTING OPTIONS
•
RC120 - 120” black cord is provided for electrical connection between
luminaire and canopy. Canopy mounts directly to 4” square or octagonal
junction box.
•
SM - Luminaire is mounted directly to the surface mounted canopy. Canopy
mounts directly to 4” square or octagonal junction box.
ELECTRICAL SYSTEM
•
Vertically-mounted, four-pin positive-latch thermoplastic socket.
•
Class P, thermally protected, high power factor electronic ballast.
LISTING
•
Fixtures are UL Listed for damp locations. Listed and labeled to comply with
Canadian standards.
WARRANTY
•
1-year limited warranty. Complete warranty terms located at:
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
EXAMPLE: PDPF 32TRT 4WG MVOLT SSNR RC120
Series
Wattage/
Lamp
Aperture/
Shade color
Voltage Ballast
Housing
Decorative
element
4
Mounting
method
4
Options
PDPF
18TRT
26TRT
32TRT
4WG White
glass
4AG
Amber
glass
4BG
Blue
glass
MVOLT
1
120
277
347
(blank) Electronic ballast
ECOS
1,2
EcoSystem electronic
dimming ballast.
Minimum dimming
level 5%.
ADEZ
2,3
Advance Mark 10
®
electronic dimming
ballast. Minimum
dimming level 5%.
SB
Short matte
black
SS
Short satin
silver
SW Short white
NR No ring
S
Soft ring
C
Stacked
rings
G
Gear
RC120
5
Reinforced
cord mount
SM
Surface
mount
WLP With 35K lamp (shipped
separately)
ELR
6
Emergency battery pack
GRS
4
Recessed mounting
frame
ACCESSORIES order as separate catalog numbers (shipped separately)
nEPP5 D
Sensor Switch
®
nLight
®
0-10V dimming relay. Only available with ADZT.
ORDERING NOTES
1.
Multi-volt electronic ballast capable of operating on any line voltage from
120V through 277V, 50 or 60 Hz.
2.
Must specify GRS and SM options.
3.
Available in 120V or 277V.
4.
for decorative element and mounting method details.
5.
Dimming not available with RC120.
6.
Available with GRS option only.
