GOTHAM ARCHITECTURAL DOWNLIGHTING | 1400 Lester Road Conyers GA 30012 | P 800.315.4982 | gothamlighting.com
© 2011-2013 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 07/01/13. Specifications subject to change without notice. PAGE 2 OF 3
AFV-6-DEcO
DIM
EN
SIO
N
AL D
AT
A
N
OT
ES
6” AFV
Drop Luminous Ring/Disk
Vertical Lamp, Double Twin-Tube or Triple-Tube
PH
OTO
M
ET
RY

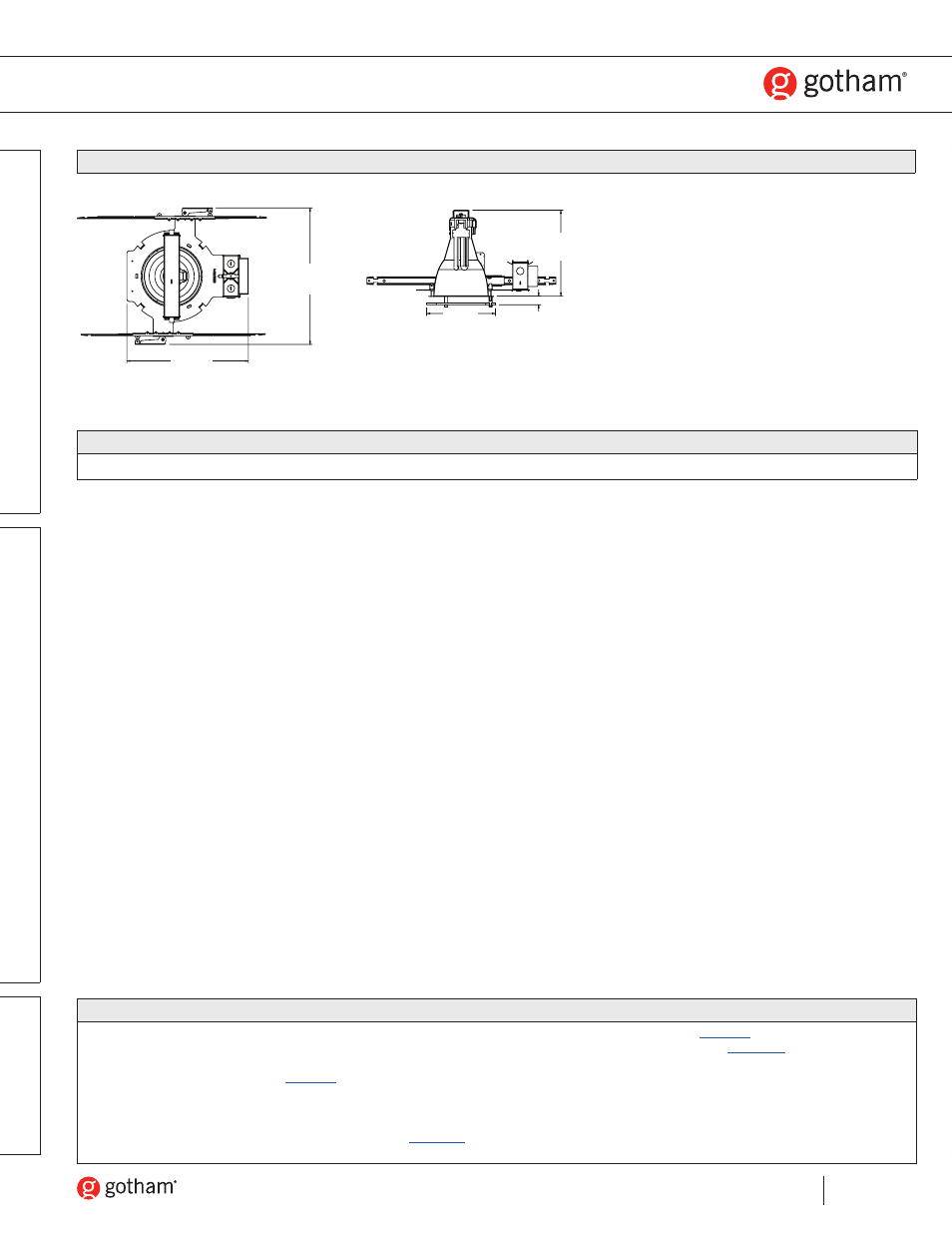

All dimensions are inches (centimeters) unless otherwise noted.
ORDERING NOTES
1. Not available with finishes.
2. Multi-volt electronic ballast capable of operating on any voltage from 120V
through 277V, 50 or 60 Hz.
3. For additional ballast types, refer to TECH-250 .
4. Not available with 13W.
5. Available in 120V or 277V only.
6. SIMPLY5 includes 9’ S5 MLC RELOC wiring system (shipped separately). Avail-
able in 120V or 277V only. Not available in 13W or 18W. See
simply5.net for
more information.
7. For dimensional changes, refer to TECH-140 .
8. For compatible RELOC systems, refer to TECH-110.
9. Not available with emergency option.
10. Meets codes that require in-fixture disconnect.
11. Must specify wattage. Ex.: WRL18
DIMENSIONAL NOTES
• Maximum height depends on lamp wattage/type, dimensions range from 11-1/4” for 18DTT, 26DTT and 42TRT; 10-1/16” for 13DTT, 18TRT, 26TRT and 32TRT.
1578 [40.3]
1418 [35.9]
15-7/8
(40.3)
14-1/8
(35.9)
8 [20.3]
10 [25.4]
1 [2.5]
Aperture: 6-1/4 (15.9)
Ceiling opening: 7-1/8 (18.1)
Overlap trim: 7-1/2 (19.1)
11-1/4
(28.6)
1 (2.5)
8 (20.3)
