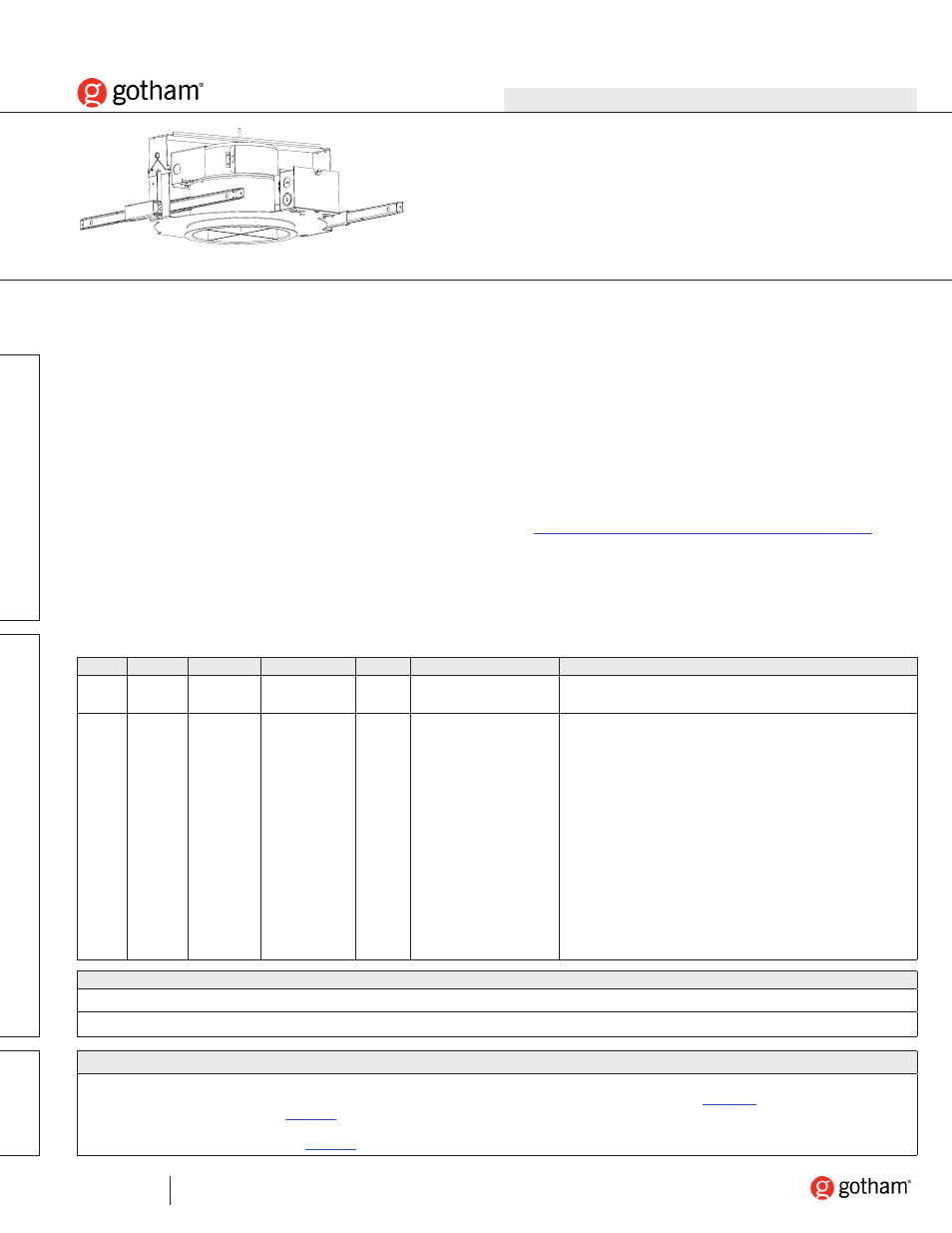

Gotham 6 PDXF Ice Blade SpecSheet User Manual
Clrf, 6” pdxf
Luminaire Type:
Catalog Number
(autopopulated):
© 2005-2013 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 09/09/13. Specifications subject to change without notice.
PAGE 1 OF 3
PDXF-6-BLADE
Gotham Architectural Downlighting
Decorative Compact Fluorescent Downlights
6” PDXF
Ice™ Blade
Horizontal Lamp,
Triple-Tube
OPTICAL SYSTEM
•
Reflector - Self-flanged, matte-finished clear anodized reflector. Fluted vertical
upper section works in conjunction with patented Bounding Ray™ Optical
Principle design (U.S. Patent No. 5,800,050) to provide lamp before lamp
image and smooth transition from top of reflector to bottom. Minimum flange
matches reflector finish. White painted flange optional.
•
Cross Baffle - Clear acrylic cross baffle with surface that provides a decorative
edge-glow appearance.
•
Hinged lampdoor seals upper trim for optimal fixture efficiency and the reduc-
tion of stray light in the plenum.
MECHANICAL
•
16-gauge galvanized steel mounting/plaster frame with integral yoke to retain
optical system. Maximum 1-1/2” ceiling thickness.
•
16-gauge galvanized steel mounting bars with continuous 4” vertical adjust-
ment are shipped pre-installed. Post installation adjustment possible without
the use of tools from above or below ceiling.
•
Galvanized steel junction box with bottom-hinged access covers and spring
latches. Two combination 1/2”- 3/4” and three 1/2” knockouts for straight-
through conduit runs. Capacity: 8 (4 in, 4 out) No. 12 AWG conductors rated
for 90°C.
ELECTRICAL SYSTEM
•
Horizontally-mounted, positive-latch, thermoplastic socket.
•
Class P, thermally protected, high power factor electronic ballast mounted to the
junction box.
LISTING
•
Fixtures are UL listed for thru-branch wiring, recessed mounting and damp
locations. Listed and labeled to comply with Canadian standards.
WARRANTY
•
1-year limited warranty. Complete warranty terms located at
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
EXAMPLE: PDXF 1/32TRT 6AR CLRF MVOLT
Series
Lamp/
Wattage
Trim color
Baffle type
Voltage
Ballast
2
Options
PDXF
1/18TRT
1/26TRT
1/32TRT
1/42TRT
6AR
Clear
CLRF
Clear
flush
CLRR
Clear
round
CLRA
Clear
angular
MVOLT
1
120
277
347
(blank) GEB10 standard,
electronic ballast
ECOS
Lutron EcoSystem
®
electronic dimming
ballast. Minimum
dimming level 5%.
ADEZ
3
Advance Mark 10
®
electronic dimming
ballast
ADZT
Advance Mark 7
®
electronic 0-10
VDC dimming
ballast
TRW
White painted flange
WLP
With 35 K lamp (shipped separately)
RRL
4
RELOC
®
-ready luminaire. Provides compatibility with Lithonia
RELOC system. Access above ceiling required.
GMF
5
Single, slow-blow fuse
GLR
5
Single, fast-blow fuse
RIF
Radio interference filter
ELR
6
Emergency battery pack. Remote test switch provided.
QDS
Quick disconnect for easy ballast replacement.
GSKT
1/8” X 3/8” foam, adhesive backed gasketing; shipped uninstalled.
CSA
Listed and labeled to comply with Canadian Standards.
CP
Chicago plenum
CAL
Clear acrylic lens. For use where enclosed fixture is required.
NEPP
Interface for Sensor Switch
®
nLight
®
network with integral power
supply
ACCESSORIES order as separate catalog numbers (shipped separately)
SCA6FL
Sloped ceiling adapter. Degree of slope must be specified (10D, 15D, 20D, 25D, 30D). Ex: SCA6FL
10D.
CLRF
FE
AT
U
RE
S
OR
DER
ING
IN
FO
RM
AT
ION
N
OT
ES
ORDERING NOTES
1.
Multi-volt electronic ballast capable of operating on any line voltage from
120V through 277V, 50 or 60 HZ.
2.
For additional ballast types, refer to
3.
Specify 120V or 277V only.
4.
For compatible RELOC systems, refer to
5.
Not available with MVOLT.
6.
For dimensional changes, refer to
. Not available with QDS or
CP options.
CLRF
