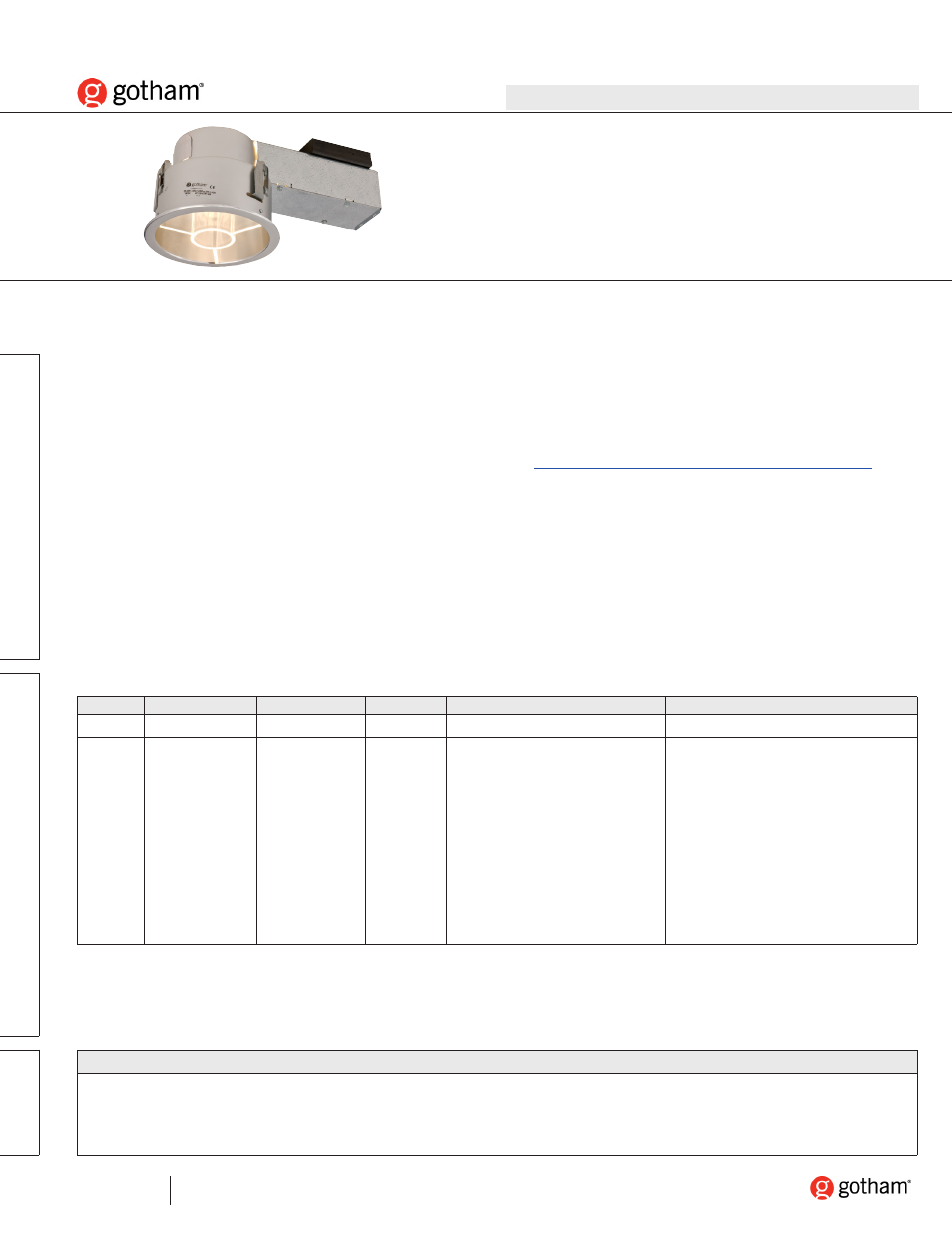

8” pdtfi
Luminaire Type:
Catalog Number
(autopopulated):
© 2010-2013 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 09/03/13. Specifications subject to change without notice.
PAGE 1 OF 3
PDTFI-R-8-IcE
Gotham Architectural Downlighting
Renovation Decorative Compact Fluorescent Downlights
8” PDTFI
Ice™ Turbo
Horizontal Triple-Tube Lamp
OPTICAL SYSTEM
•
Reflector - Self-flanged, matte-finished clear anodized reflector. Fluted vertical
upper section works in conjunction with patented Bounding Ray™ Optical
Principle design (U.S. Patent No. 5,800,050) to provide lamp before lamp
image and smooth transition from top of reflector to bottom. Minimum flange
matches reflector finish. White painted flange optional.
•
Turbo Baffle - Clear acrylic, three-spoke turbo baffle with surface that provides a
decorative edge-glow appearance.
•
Hinged lampdoor provided for optimal fixture efficiency and the reduction of
stray light in the plenum.
MECHANICAL
•
Pre-wired galvanized steel junction box mount to reflector provided with remov-
able access cover. No. 12 AWG conductors rated for 90°C.
•
Three (3) swinggate brackets allow for installation from below the ceiling.
Suitable for ceiling thickness ranging from 5/8” (1.59cm) to 1” (2.54cm).
ELECTRICAL SYSTEM
•
Horizontally-mounted, positive-latch, thermoplastic socket(s).
•
Thermally protected, high power factor electronic ballast (50/60Hz) mounted to
the junction box.
LISTING
•
Fixtures are UL Listed, Non-IC recessed mounting and damp locations.
WARRANTY
•
1-year limited warranty. Complete warranty terms located at
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
EXAMPLE: PDTFI 1/32TRT 8AR MVOLT
Series
Lamp/Wattage
Aperture/Trim
Voltage
Ballast
Options
PDTFI
1/18TRT
1/26TRT
1/32TRT
1/42TRT
2/18TRT
2/26TRT
2/32TRT
2/42TRT
8AR
clear
MVOLT
1
120
277
(blank)
Electronic ballast
ADEZ
2
Advance Mark 10
®
electronic
dimming ballast. Minimum
dimming level 5%
ECOS
Lutron EcoSystem
®
electronic
dimming ballast. Minimum
dimming level 5%.
TRW
White painted flange
WLP
With 3500 K lamp (shipped separately)
GMF
2
Single, slow-blow fuse
GLR
2
Single, fast-blow fuse
GSKT
Foam gasketing, ships uninstalled
FE
AT
U
RE
S
OR
DER
ING
IN
FO
RM
AT
ION
N
OT
ES
ORDERING NOTES
1.
Multi-volt electronic ballast capable of operating on any line voltage from
120V through 277V, 50 or 60Hz.
2.
Available in 120V or 277V only.
