GOTHAM ARCHITECTURAL DOWNLIGHTING | 1400 Lester Road Conyers GA 30012 | P 800.315.4982 | gothamlighting.com
© 2012-2013 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 09/10/13. Specifications subject to change without notice. PAGE 2 OF 3
VRAFV-8-LEnSEd
8” VRAFV
Lightshield™
Vertical Double Twin-Tube or Triple-Tube Lamp
PH
OTO
M
ET
RY
All dimensions are inches (centimeters) unless otherwise noted.
ORDERING NOTES
1. Not available with finishes.
2. Provided standard with clear polycarbonate underlay (2 lenses total).
3. Multi-volt electronic ballast capable of operating on any voltage from 120V
through 277V, 50 or 60 Hz.
4. For additional ballast types, refer to TECH-250 .
5. Not available with 13W.
6. Available in 120V or 277V only.
7. SIMPLY5™ includes 9’ S5 MLC RELOC wiring system (shipped separately).
Available in 120V or 277V only. Not available in 13W or 18W. See
www.sim-
ply5.net for more information.
8. For dimensional changes, refer to TECH-140 .
9. For compatible RELOC systems, refer to TECH-110 .
10. Not available with ELR or ELRHL option.
11. Meets codes that require in-fixture disconnect.
12. Not available with CVX, PCL or PPC lens.
13. Must specify wattage. Ex.: WRL32
14. Additional architectural colors available; see
www.lithonia.com/archcolors .
DIM
EN
SION
AL
D
AT
A
N
OT
ES

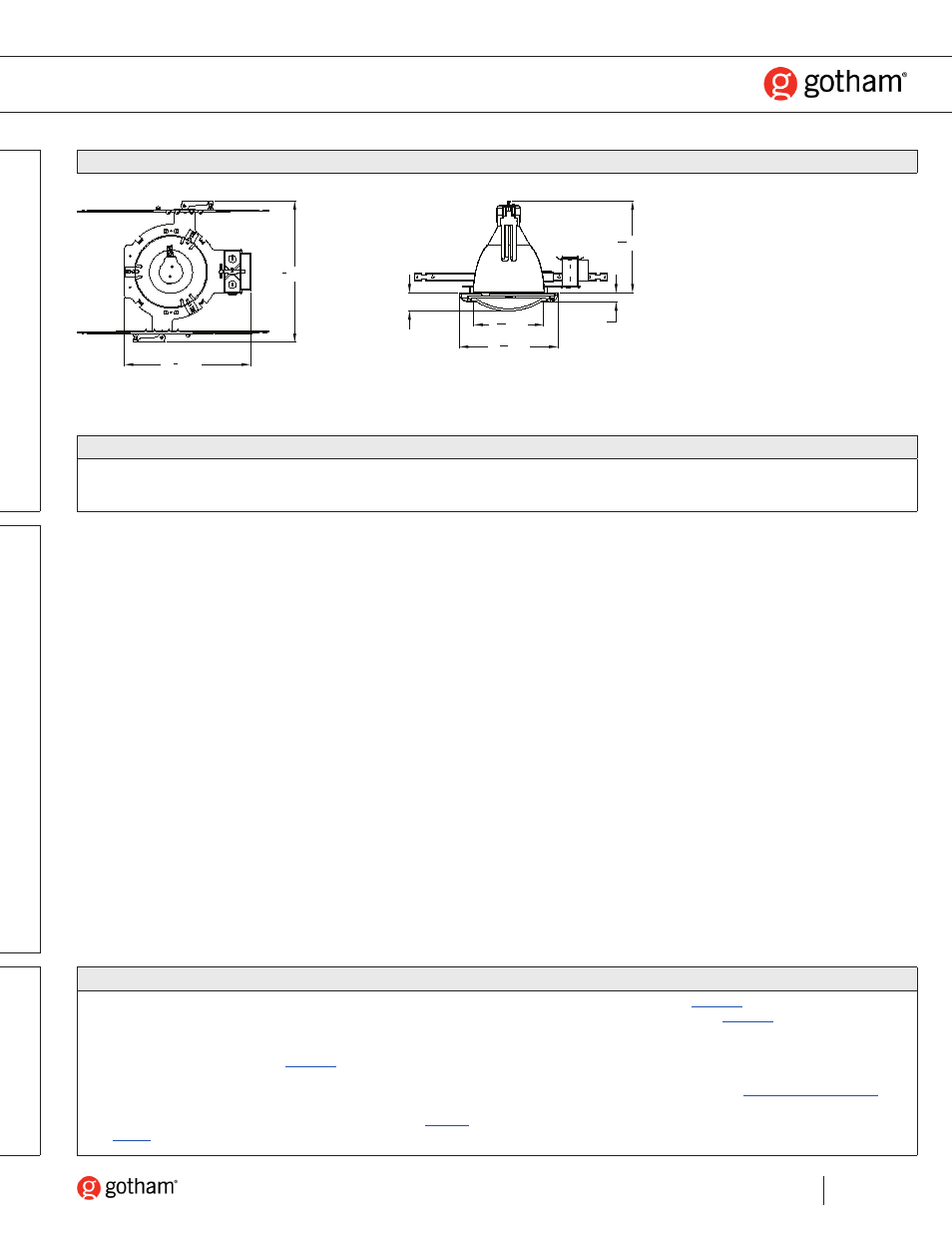

DIMENSIONAL NOTES
• Maximum height depends on lamp wattage/type: 11” for 18DTT, 26DTT and 42TRT; 10-1/8” for 13DTT, 13TRT, 18TRT, 26TRT and 32TRT.
Aperture: 7-7/8(20.1)
Ceiling Opening: 8-7/8 (21.5)
1 [2.6]
10 5
16 [26.2]
713
16 [19.8]
2 [5.1]
11 1
16 [28.0]
15 78 [40.3]
14 18 [35.9]
