6” pdrgh
Luminaire Type:
Catalog Number
(autopopulated):
© 2007-2013 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 08/20/13. Specifications subject to change without notice
PAGE 1 OF 3

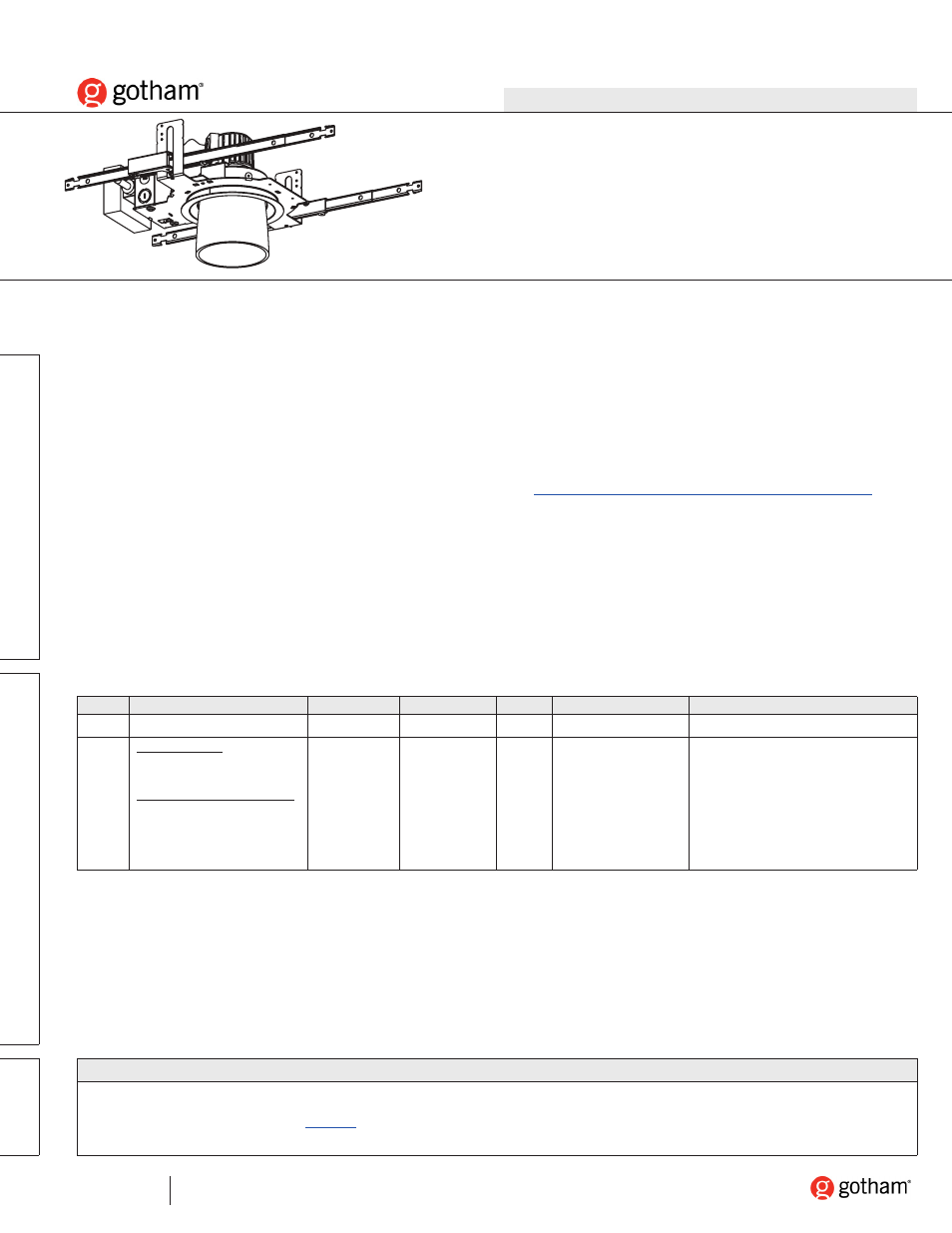

PDRGH-6-SHADE
Gotham Architectural Downlighting
Decorative HID Downlights
6” PDRGH
Semi-recessed Glass Shade
ED17 Lamp
GLASS SHADE
•
Semi-recessed shade is pressed, colored glass with an acid etched exterior fin-
ish and a matte white glazed interior décor. Available in white, amber and blue.
•
Minimum flange with textured polyester powder paint finish available in matte
white, matte black or satin silver.
MECHANICAL SYSTEM
•
16-gauge painted steel mounting/plaster frame with integral brackets to retain
glass shade. Maximum 1-1/2” ceiling thickness.
•
16-gauge galvanized steel mounting bars with continuous 4” vertical adjust-
ment are shipped pre-installed. Post installation adjustment possible without
the use of tools from above or below ceiling.
•
Galvanized steel junction box with hinged access covers and spring latch. Two
combination 1/2”-3/4” and four 1/2” knockouts for straight-through conduit
runs. Capacity: 8 (4 in, 4 out) No. 12 AWG conductors rated for 90°C.
ELECTRICAL SYSTEM
•
Medium-base porcelain socket with nickel-plated screw shell.
•
Pre-wired, electronic, 120 or 277V ballast module is standard. Assembly can be
attached before or after mounting of mounting/plaster frame.
•
Thermally activated insulation detector.
LISTING
•
Fixtures are UL Listed for thru-branch wiring, non-IC recessed mounting and
damp locations. Listed and labeled to comply with Canadian standards.
WARRANTY
•
1-year limited warranty. Complete warranty terms located at
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
EXAMPLE: PDRGH 50M 6WG DBLB 120
Series
Wattage/Lamp
1
Shade color
Flange color
Voltage
Ballast
Options
PDRGH
Metal halide (ED17)
50M
70M
Color-corrected metal halide (ED17)
70MHC
6WG
White
glass
6AG
Amber
glass
6BG
Blue
glass
DWHG
Matte
white
DBLB
Matte
black
DNAS
Satin
silver
120
277
347
2
(blank)
Electronic
ballast
EMB
Electromagnetic
ballast
SF
Single fuse
WLP
3000 K lamp (shipped separately)
RRL
3
RELOC
®
-ready luminaire. Provides
compatibility with Lithonia RELOC
system. Access above ceiling required.
CP
Chicago plenum
FE
AT
U
RE
S
OR
DER
ING
IN
FO
RM
AT
ION
N
OT
ES
ORDERING NOTES
1.
Recommended for use with coated lamps. Open rated lamps required.
2.
Available only with EMB.
3.
.
