8” ch cylinders – Gotham 8 CH Cylinder ED17 SpecSheet User Manual
Page 2
© 2008-2012 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 12/19/13. Specifications subject to change without notice.
PAGE 2 OF 3
CH-8-OPEN-ED17
8” CH
Cylinders
Metal Halide, 6” Aperture
PH
OTO
M
ET
RY

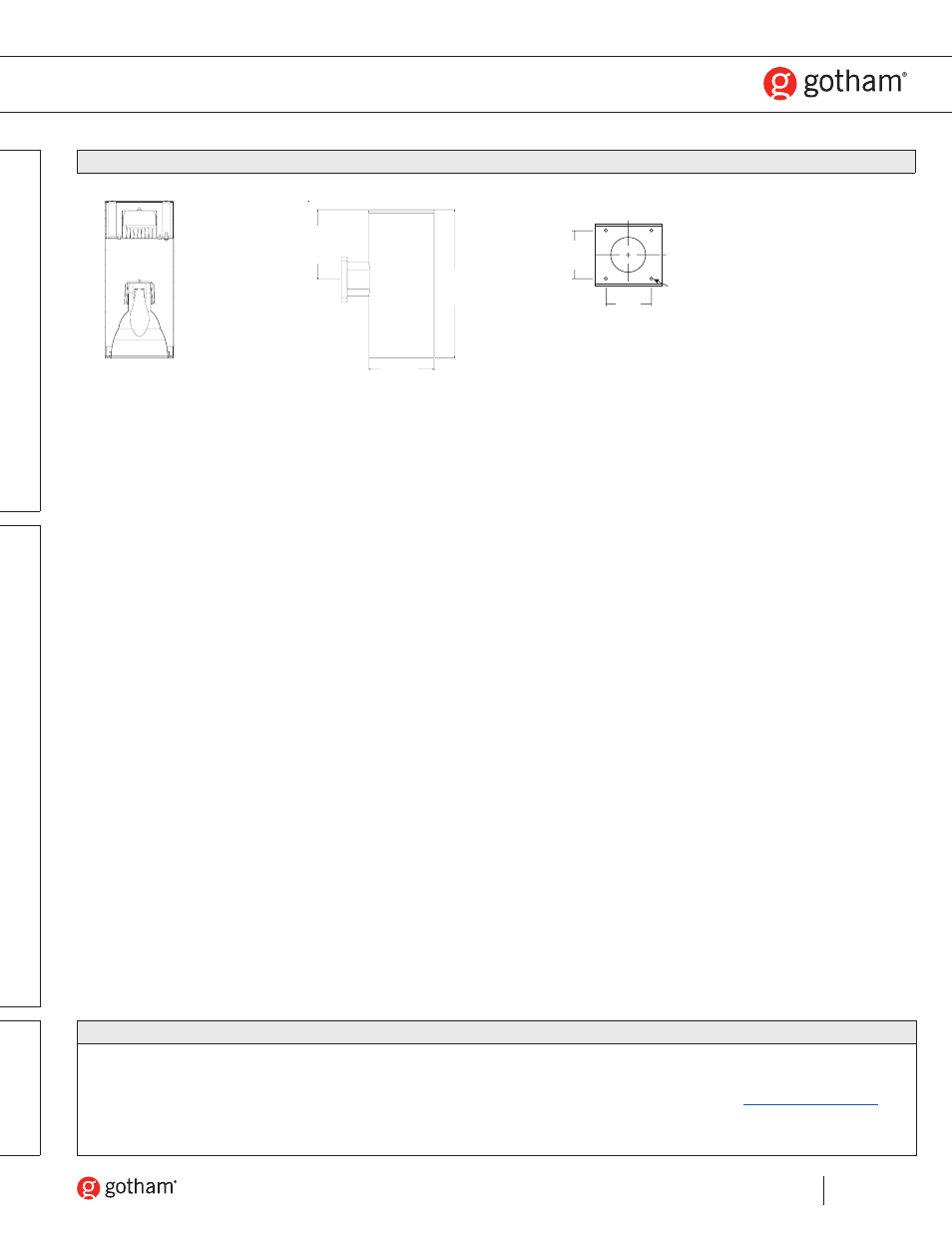

All dimensions are inches (centimeters) unless otherwise noted.
DIM
EN
SIO
N
AL D
AT
A
N
OT
ES
ORDERING NOTES
1.
Recommended for use with ceramic coated lamps.
2.
Ceramic ARC tube consistent-color lamp. Phillips Mastercolor or GE Con-
stant Color.
3.
Open only; N/A with lens options.
4.
Not available 50W.
5.
Not available with QRS.
6.
Wires supplied by others.
7.
Stem not included.
8.
Must specify 120 or 277V.
9.
Not available with EC.
10. Additional architectural colors available; see
www.lithonia.com/archcolors
.
11. Color and length of stem must be specified (from 6” to 240” in even incre-
ments in maximum sections of 48”). Ex.: CYS06 DWHG. Ceiling attachment for
interior use. Consult factory for exterior use. Wire not included.
Aperture: 6-1/4 (15.9)
Housing Diameter: 7-5/8 (19.4)
Housing Height: 17-3/8 (44.1)
A
B
A: 8-1/8 (20.7)
B: 17-3/8 (44.1)
C: 7-5/8 (19.4)
C
Wall Mount Bracket
Clearance holes
for 3/8" (.95)
anchors
CH8 WM
3-3/8
(8.6)
3-3/8
(8.6)
