Page 2

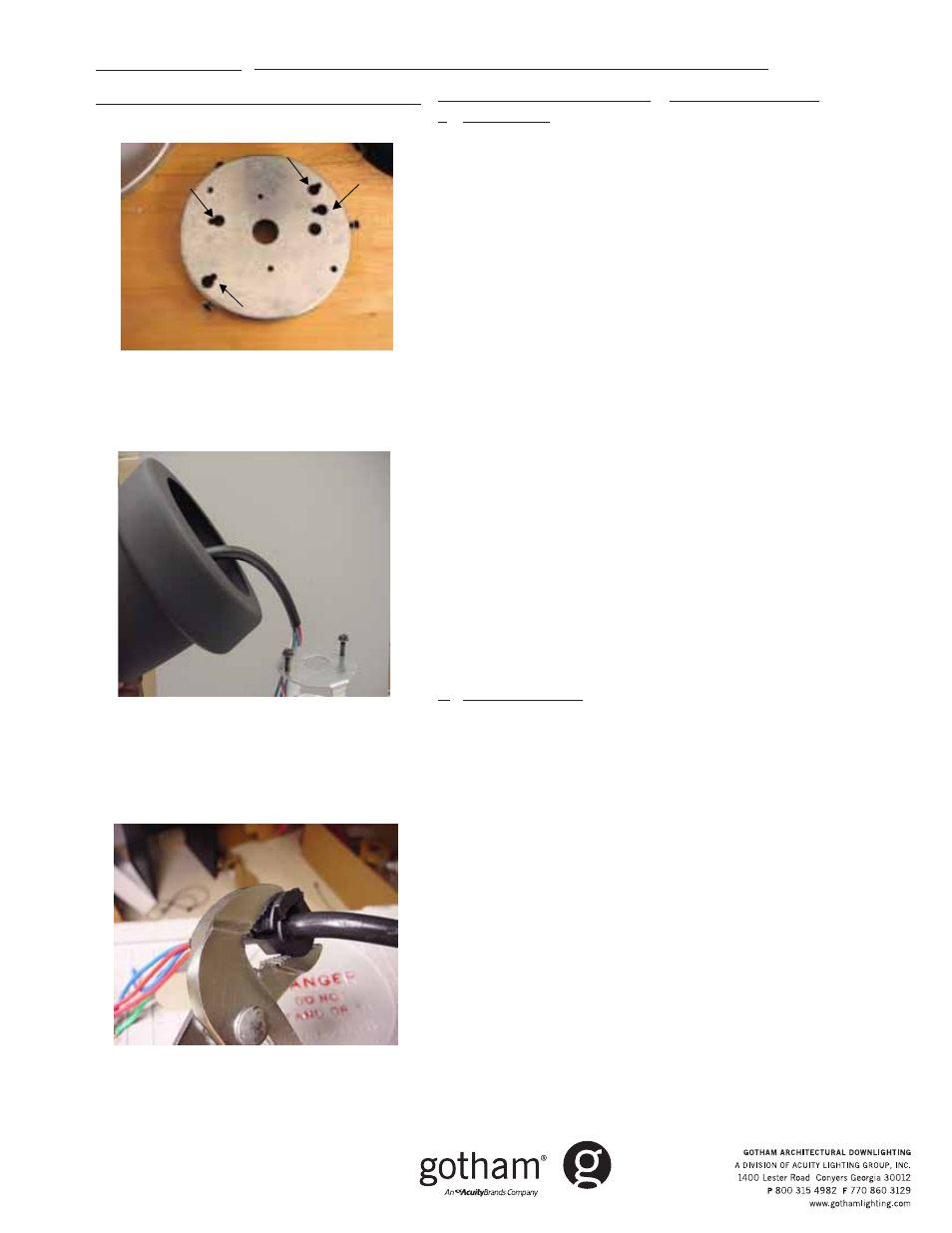

Figure 1C

Cord Mount -4" Elevations

(with glass shade)

I. Ground Prep

Temporarily remove cap and any round decorative piece to expose

support bracket.
2. Bundle wires inside housing (DO NOT pass wires through top hole).
3. Replace the top cap and round decorative piece, leaving

screws loose for later steps.

4. Measure desired hanging length from ceiling to top of fixture, then
subtract the thickness of the canopy and add 6 inches.
**DESIRED SUSPENSION LENGTH - CANOPY THICKNESS + 6 INCHES =
CORD LENGTH** Cut cord to calculated length.
5. Strip off 4 inches of cord jacket to expose inner conductors. Strip ½ inch
from each conductor to expose copper.
6. Secure the provided strain relief bushing with a minimum of 2 inches
above the stripped edge of the cord. Use pliers or vice-grips to crimp
around the cord jacket – flat side facing up.
IF ADJUSTMENT IS REQUIRED, USE EITHER A FLATHEAD SCREW-
DRIVER TO PRY-OFF BUSHING AND RECRIMP, OR CUT BUSHING OFF

AND USE EXTRA ONE PROVIDED. Figure 2B.

7. Remove the fixture cap to expose support bracket and to route cord

through top center hole of cap.

8. VERIFY CORD IS ROUTED THROUGH CAP AND ROUND

DECORATIVE PIECE IS ON FIXTURE. Align crimped bushing
inside top hole of housing, and press firmly to engage snaps and
suspend the fixture. Figure 2A

9. Gather both cord and socket leads and strain-relieve a minimum of 2

inches of cord conductors with socket conductors, using the provided
wire tie. Make connections with wire-nuts.

10. From canopy ASM separate J-box mounting pan from top of canopy by

loosening the 3 side screws, twisting and removing.

II. Ceiling Installation
11. Hang mounting pan by routing J-box wires through back of pan, and

using either 3.5 or 4.5 inch key holes, secure to J-box Figure 1C.

12. With canopy and fixture suspended on cord, make power connections

using wire nuts.

13. Tuck in all wires, close assembly to mounting pan and twist to engage

screws into L-slots.

14. Tighten screws. INSTALLATION COMPLETE.

Fixture connections and hanging instructions

Part No. CJ520706

7/06

4 " Elevations

Page 2 of 2

Figure 2A

Figure 2B

1/2
