INSTALLATION INSTRUCTIONS
4" Elevations
TM
Upon receipt, thoroughly inspect for any
freight damage which should be brought to
the attention of the delivery carrier. Com-
pare the catalog description listed on the
packing slip with the label on the carton to
ensure that you have received the correct
merchandise.
IMPORTANT SAFETY INFORMATION
For Your Protection, Read Carefully
WARNING - Risk of fire. Do not install
insulation within 3 inches of fixture sides
or wiring compartment, nor above the
fixture in such a manner as to entrap
heat.
1. Electric current can cause painful
shock or serious injury unless handled
properly. For your safety, always re-
member the following:
·
Turn off the power supply.
· Ground the fixture to avoid poten-
tial electrical shocks.
· Do not handle an energized fixture
or energize any fixture with wet
hands, when standing on a wet or
damp surface, or in water.
· Double check all electrical connections
to be sure they are tight and correct.
2. Specific safety information concern-
ing lamps:
·
Match wattage of fixture and lamp
exactly.
· Do not remove or insert lamp when
power is on.
· Do not scratch glass or subject lamp
to undue pressure as either may
cause lamp breakage.
· Protect operating lamp from sources
of moisture.
NEW INSTALLATION - J-box Preparation
1. Remove J-box mounting bracketfrom
hardware kit.
2. Mount the bracket to the J-box using
the flush-head screws provided. Be
sure that the thumbscrew is on top.
FIGURE 1.
3 .Once bracket is installed onto J-box
securely, loosen thumbscrew 1/8
inch from bracket, but be sure not to
remove. BRACKET INSTALLATION
C O M P L E T E .
Fixture Preparation – Table Top
1 .Retrieve fixture from carton and
remove top and bottom screws from
wall canopy. Temporarily store
screws.
2 .Slide canopy away to expose the
inner bracket assembly and side
screws. FIGURE 2.
3 .Remove side screws from inner
bracket to allow the fixture arm to
pivot, then lock arm in open position
by temporarily inserting side-screws
into secondary locking holes on
each side. FIGURE 3.
Fixture Wall Mount
1. Route source wires from J-box
through the ½ inch hole of rear
bracket, being sure to pull them
through to allow wiring access.
2. Hang fixture onto J-box using the
rear bracket keyhole slot and J-box
thumbscrew. Tighten thumbscrew
with fingers to secure fixture onto
wall. FIGURE 4.
3. From hardware bag, loosely install
#8 screw through inner bracket slot
into J-box bracket. Use level to
plumb fixture and once adjusted
vertically, tighten screw with tool to
lock position. SEE FIGURES 5A &
5B. If desired, additional drywall
screws can be installed through the
lower inner bracket holes and into
mounting wall (not provided).
Part No. CJ520702
©2006 Gotham 7/06
4" Elevations TM
Page 1 of 2

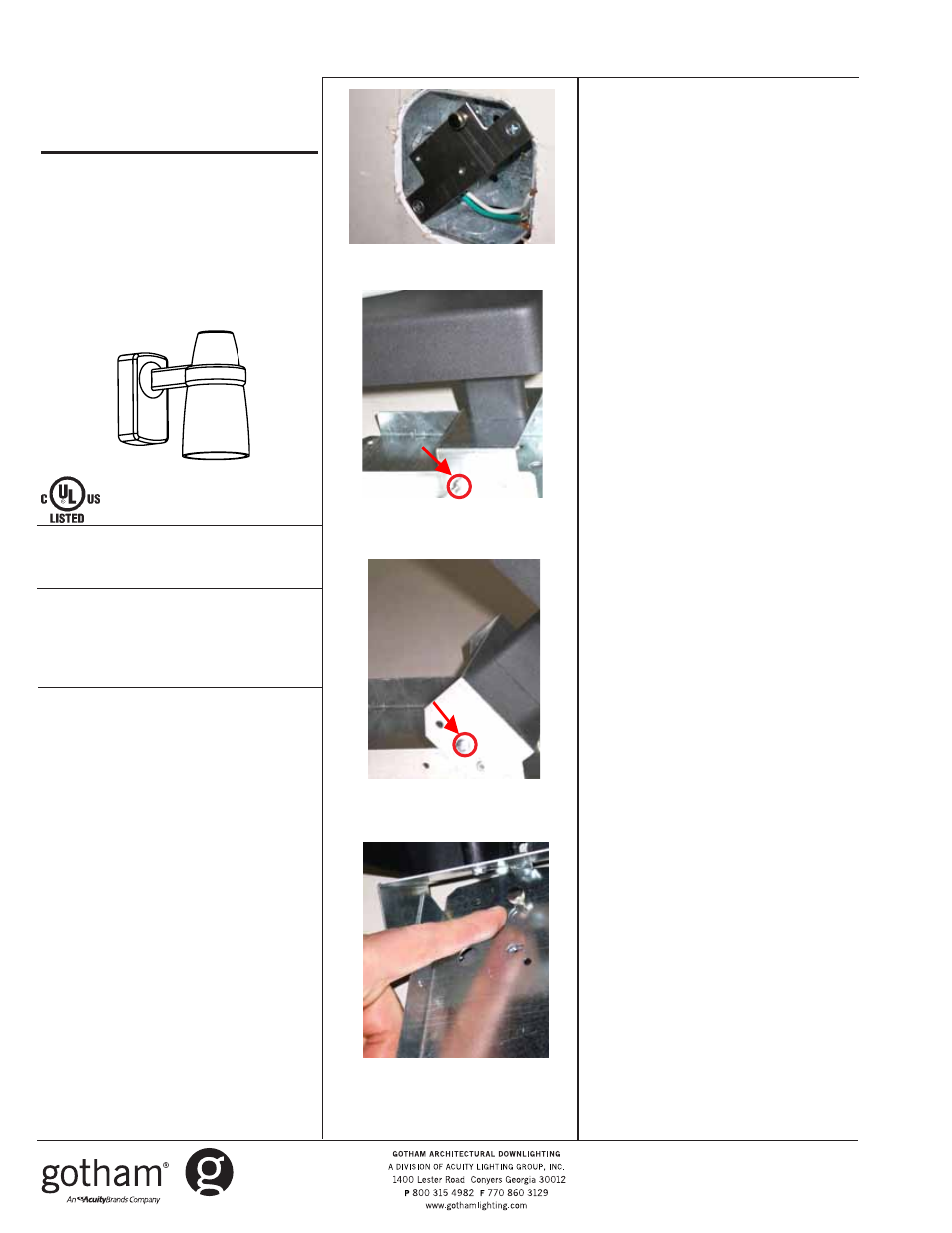

Figure 4
SAVE THESE INSTRUCTIONS
Figure 1
Figure 2
Figure 3
Performance Downlight Pendant
Wall Mount - Glass
