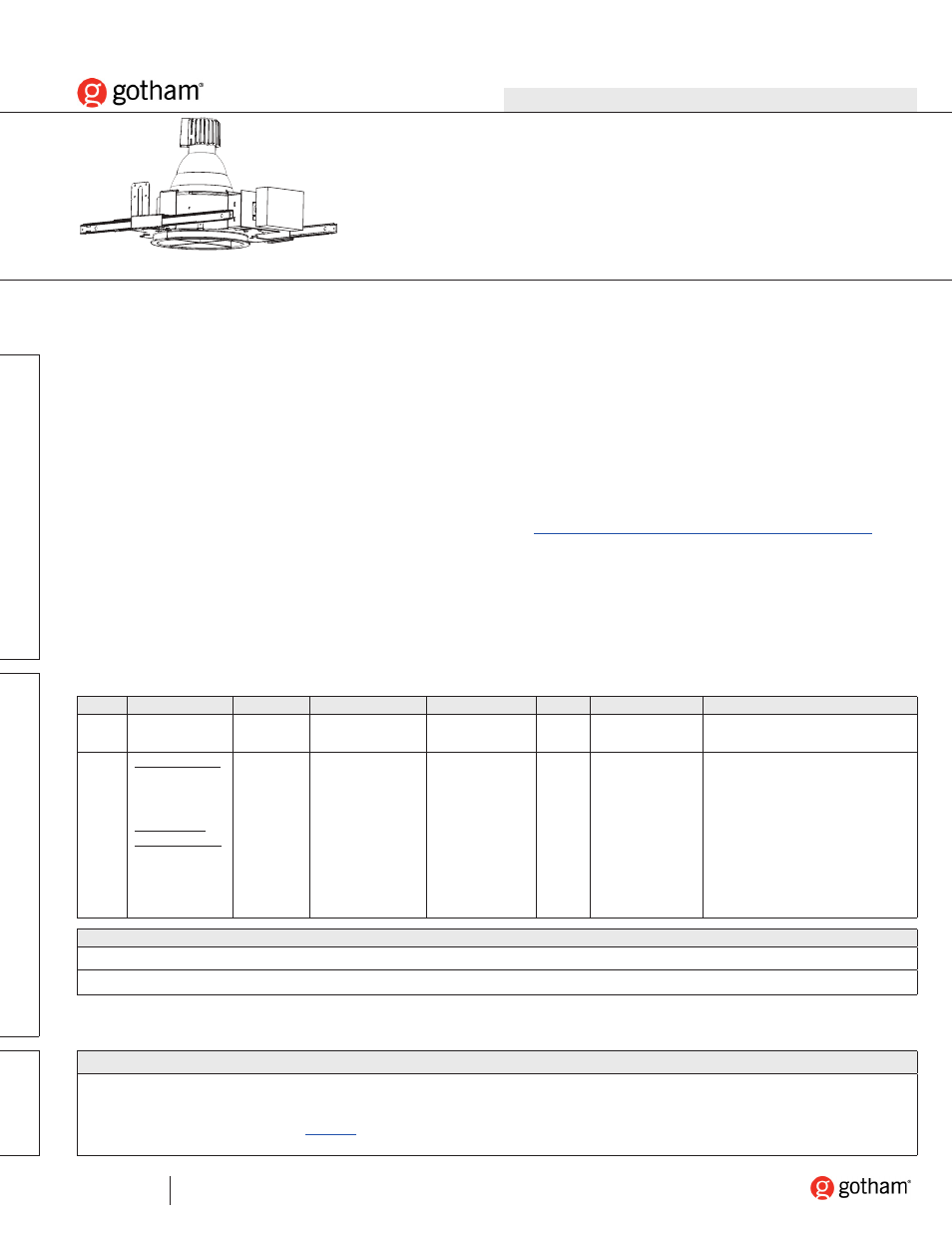

8” pdxh, Flush
Luminaire Type:
Catalog Number
(autopopulated):
© 2007-2013 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 09/17/13. Specifications subject to change without notice.
PAGE 1 OF 3
PDXH-8-COLOR
Gotham Architectural Downlighting
Decorative HID Downlights
8” PDXH
Ice™ Color
ED17 Lamp
OPTICAL SYSTEM
•
Self-flanged, matte-diffuse reflector. Patented Bounding Ray™ Optical Principle
design (U.S. Patent No. 5,800,050) provides lamp before lamp image and
smooth transition from top of the reflector to bottom. Minimum flange matches
reflector finish.
•
Cross Baffle - Red, blue, amber or white acrylic cross baffle, jacketed with
aluminum (U.S. Patent No. 6,273,592 B1), provides a vibrant edge-glow color
appearance. Available in flush or round (convex) baffle styles.
MECHANICAL SYSTEM
•
16-gauge galvanized steel mounting/plaster frame with integral brackets to
retain optical system. Maximum 1-1/2” ceiling thickness.
•
16-gauge galvanized steel mounting bars with continuous 4” vertical adjust-
ment are shipped pre-installed. Post installation adjustment possible without
the use of tools from above or below ceiling.
•
Galvanized steel junction box with hinged access covers and spring latch. Two
combination 1/2”-3/4” and four 1/2” knockouts for straight-through conduit
runs. Capacity: 8 (4 in, 4 out) No. 12 AWG conductors rated for 90°C.
ELECTRICAL SYSTEM
•
Medium-base porcelain socket with nickel-plated screw shell.
•
Pre-wired, electronic 120-277V ballast module is standard. Assembly can be
attached before or after mounting of mounting/plaster frame.
•
Thermally-activated insulation detector.
LISTING
•
Fixtures are UL Listed for thru-branch wiring, non-IC recessed mounting and
damp locations. Listed and labeled to comply with Canadian standards.
WARRANTY
•
1-year limited warranty. Complete warranty terms located at:
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
EXAMPLE: PDXH 70M 8AR RLRF 120
Series
Wattage/Lamp
1,2
Aperture/
Trim color
Baffle type
Lens style
Voltage Ballast
Options
PDXH
Metal halide (ED17)
50M
70M
100M
Color-corrected
metal halide (ED17)
50MHC
70MHC
100MHC
8AR
Clear
RLRF
Red flush
RLRR
Red round
BLRF
Blue flush
BLRR
Blue round
ALRF
Amber flush
ALRR
Amber round
WLRF
White flush
WLRR
White round
(blank) No lens
CGL
Clear glass
lens
120
277
347
3
(blank)
Electronic
ballast
EMB
Electro-
magnetic
ballast
SF
Single fuse
TRW
White painted flange
TRBL
Black painted flange
GSKT
Foam gasketing
WLP
3000 K Lamp (shipped separately)
RRL
4
RELOC
®
-ready luminaire. Provides
compatibility with Lithonia RELOC
system. Access above ceiling
required.
CP
Chicago plenum
ACCESSORIES order as separate catalog numbers (shipped separately)
SCA8
Sloped ceiling adapter. Degree of slope must be specified (10D, 15D, 20D, 25D, 30D). Ex: SCA8
10D.
Flush
ORDERING NOTES
1.
Recommended for use with coated lamps.
2.
Open rated lamp required.
3.
Available with 70W & 100W electromagnetic ballast only.
