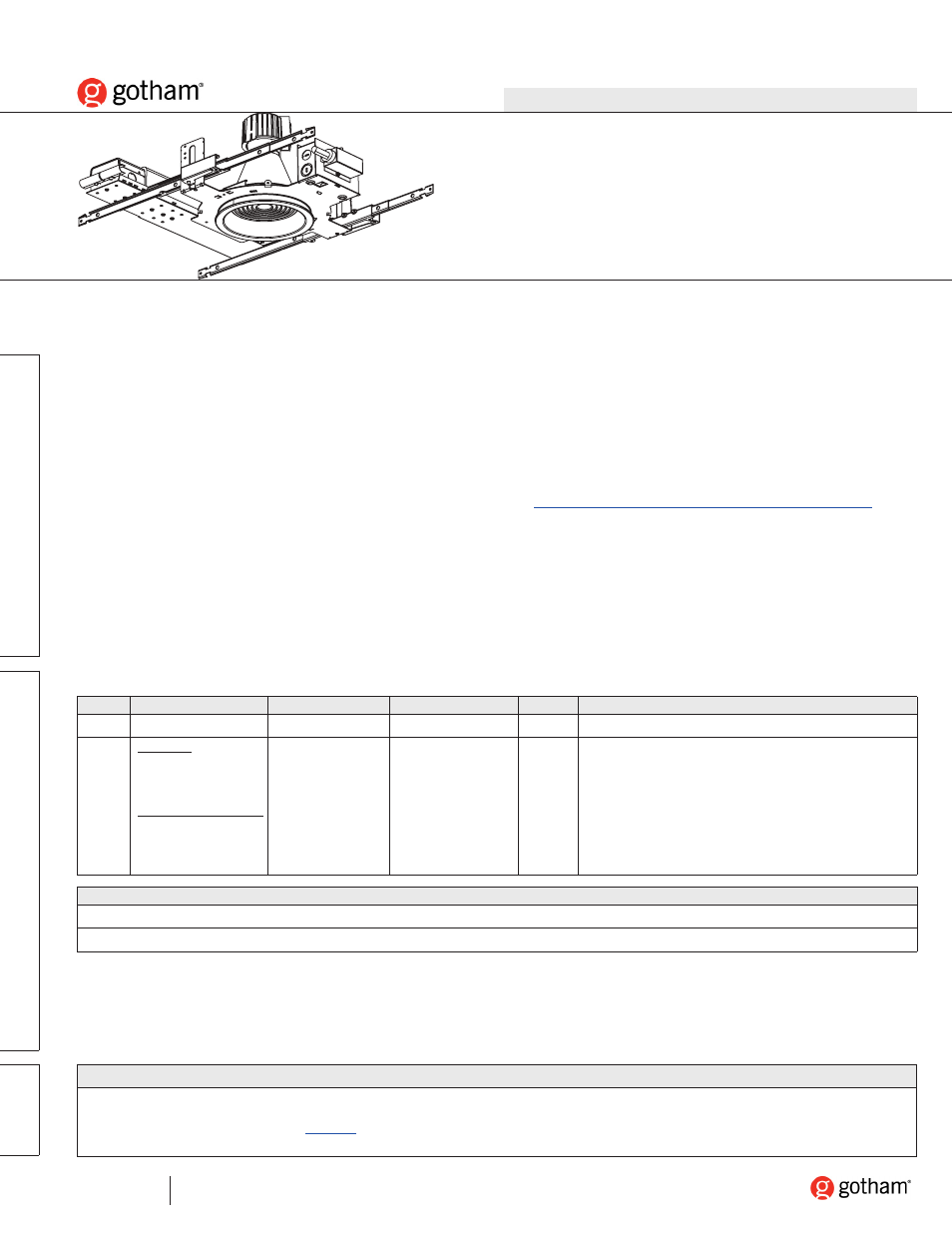

Gotham 6 LGH Round Lens SpecSheet User Manual
6” lgh
Luminaire Type:
Catalog Number
(autopopulated):
© 2005-2013 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 10/02/13. Specifications subject to change without notice.
PAGE 1 OF 3
LGH-6-ROund-LEnS
Gotham Architectural Downlighting
HID Downlights
6” LGH
Round Lens
Wet Location
Vertical Metal Halide Lamp
FE
AT
U
RE
S
OR
DER
ING
IN
FO
RM
AT
ION
N
OT
ES
OPTICAL SYSTEM
•
Aluminum upper reflector coated with highly reflective white paint provides high
efficiency and an evenly illuminated aperture appearance.
•
Available with tempered prismatic lens (T73), flat Fresnel lens (FFL) or flat opal
lens (FOL).
•
Regressed white door (RW) or stepped black baffle (SB) are available with white
painted flange provided.
•
Door is retained by self-aligning, torsion support springs, preventing gaps
between door and ceiling.
MECHANICAL SYSTEM
•
16-gauge galvanized steel mounting/plaster frame with integral brackets to
retain optical system. Maximum 1-1/2” ceiling thickness.
•
16-gauge galvanized steel mounting bars with continuous 4” vertical adjust-
ment are shipped pre-installed. Post installation adjustment possible without
the use of tools from above or below ceiling.
•
Galvanized steel junction box with hinged access covers and spring latch. Two
combination 1/2”-3/4” and four 1/2” knockouts for straight-through conduit
runs. Capacity: 8 (4 in, 4 out) No. 12 AWG conductors rated for 90°C.
ELECTRICAL SYSTEM
•
Die-cast aluminum lampholder housing.
•
Medium-base porcelain socket with nickel-plated screw shell.
•
Prewired encased-and-potted, 120/277 or 120/347 ballast tray module. Module
can be attached before or after mounting of mounting/plaster frame.
•
Thermally-activated insulation detector.
LISTING
•
Fixtures are UL Listed for thru-branch wiring, non-IC recessed mounting and wet
locations. Listed and labeled to comply with Canadian standards.
WARRANTY
•
1-year limited warranty. Complete warranty terms located at
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
EXAMPLE: LGH 100M 6RW T73 120
Series
Wattage/Lamp
1
Door frame
Lens type
Voltage
Options
LGH
Metal halide
50M
50W Ed17
70M
70W Ed17
100M
100W Ed17
Color-corrected metal halide
50MHC
50W Ed17
70MHC
70W Ed17
100MHC 100W Ed17
6RW Regressed white
door
6SB
Stepped black
baffle
T73
Tempered
prismatic lens
FFL
Flat fresnel lens
FOL
Flat opal lens
120
277
347
CP
Chicago plenum
TRDA
2
Tamper resistant door assembly
RRL
3
RELOC
®
-ready luminaire. Provides compatibility with Lithonia
RELOC system. Access above ceiling required.
WLP
Lamp (shipped separately)
GSKT
Foam gasketing, ships uninstalled
SF
Single fuse
ACCESSORIES order as separate catalog numbers (shipped separately)
SCA6
Sloped ceiling adapter. degree of slope must be specified (10d, 15d, 20d, 25d, 30d). Ex: SCA6 10d.
ORDERING NOTES
1.
Recommended for use with coated lamps.
2.
Uses Torx T20 rejection pin drive system. You may order RK1 T20DRV U Torx driver accessory.
3.
