4” ah

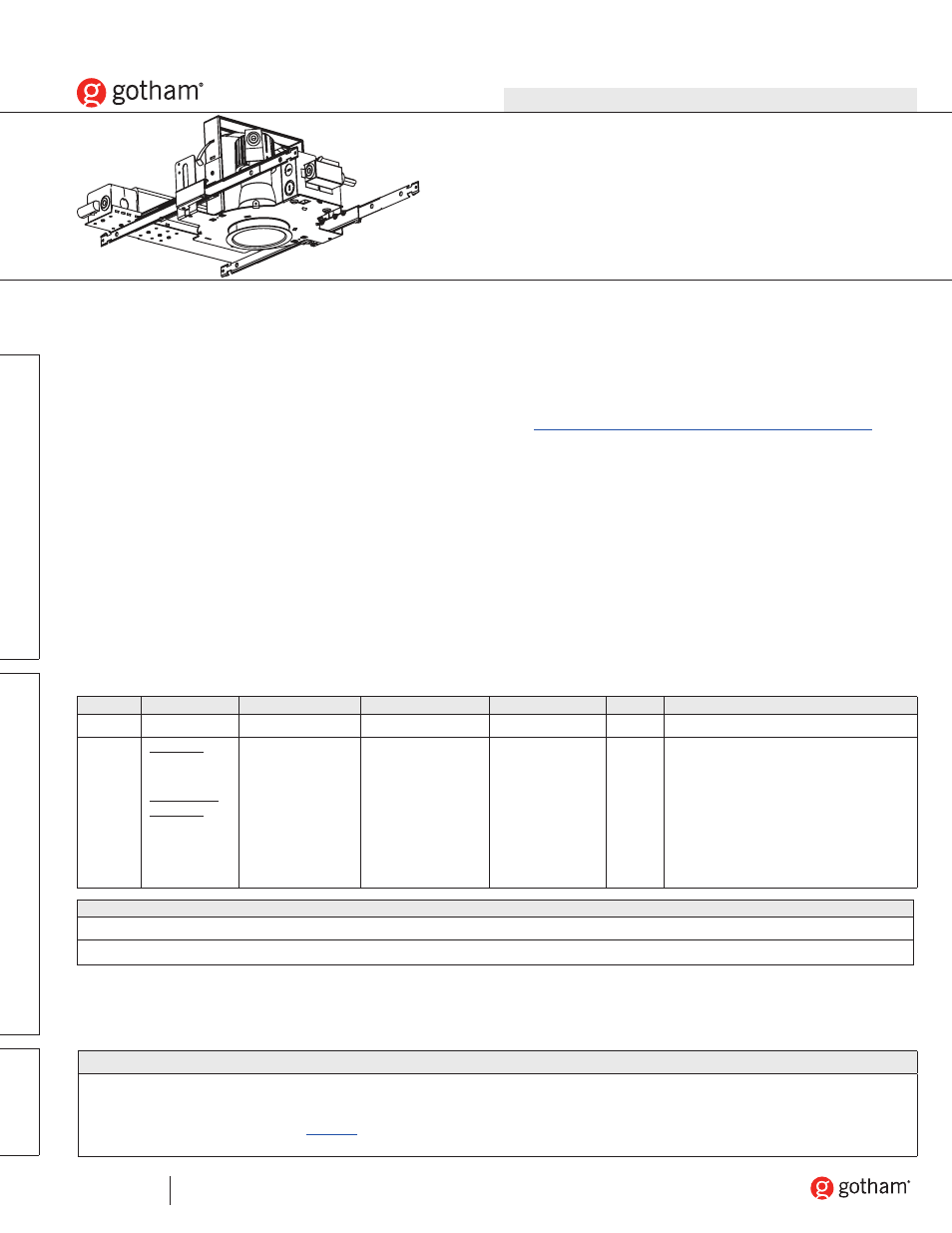

background image

Luminaire Type:
Catalog Number
(autopopulated):

GOTHAM ARCHITECTURAL DOWNLIGHTING | 1400 Lester Road Conyers GA 30012 | P 800.315.4982 | gothamlighting.com

© 2008-2013 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 07/01/13. Specifications subject to change without notice.

PAGE 1 OF 3

AH-4-OPEn

Gotham Architectural Downlighting
HID Downlights

4” AH

Open Reflector

Metal Halide Lamp

OPTICAL SYSTEM

Self-flanged semi-specular or matte-diffuse reflector. Patented Bounding
Ray™ Optical Principle design (U.S. Patent No. 5,800,050). Minimum flange
matches reflector finish.

MECHANICAL SYSTEM

16-gauge galvanized steel construction; maximum 7/8” ceiling thickness.

Telescopic mounting bars maximum of 32” and minimum of 15”, preinstalled,
4” vertical adjustment.

Toolless post-installation adjustments.

Junction box capacity: 8 (4 in, 4 out) 12AWG rated for 90°C.

ELECTRICAL SYSTEM

Die-cast aluminum lampholder housing.

Medium-base porcelain socket with nickel-plated screw shell. Extended
porcelain socket for “open fixture” rated lamps.

Prewired, encased-and-potted, 120/277V or 120/347V ballast tray module.
Module can be attached before or after mounting of mounting/plaster frame.

Thermally activated insulation detector.

LISTING

Fixtures are UL Listed for thru-branch wiring, non-IC recessed mounting and
damp locations. Listed and labeled to comply with Canadian standards.

WARRANTY

1-year limited warranty. Complete warranty terms located at

www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx

EXAMPLE: AH 50M 4AR 120 TRW

Series

Wattage/Lamp

1

Aperture/Trim color

Finish

Lens type

2

Voltage

Options

AH

Metal halide
50M
70M
Color-corrected
metal halide
50MHC
70MHC

4AR

Clear

4PR

Pewter

4WTR

Wheat

(blank) Semi-specular
LD

Matte-diffuse

(blank)

no lens

CGL

Clear glass
lens

T73

Tempered
prismatic
lens

120
277
347

3

TRW

White painted flange

TRBL

Black painted flange

RRL

4

RELOC

®

-ready luminaire. Provides compat-

ibility with Lithonia RELOC system. Access
above ceiling required.

HEB

5

Electronic ballast

SF

Single fuse

WLP

With lamp (shipped separately)

GSKT

Foam gasketing

ACCESSORIES order as separate catalog numbers (shipped separately)

SCA4

Sloped ceiling adapter. Degree of slope must be specified (10D, 15D, 20D, 25D, 30D). Ex: SCA4

10D.

FE

AT

U

RE

S

OR

DER

ING

IN

FO

RM

AT

ION

N

OT

ES

ORDERING NOTES

1.

Recommended for use with coated lamps.

2.

Required for use with enclosed rated lamp.

3.

Not available with HEB.

4.

For compatible RELOC systems, refer to

TECH-110

.

5.

MHC lamps only.
