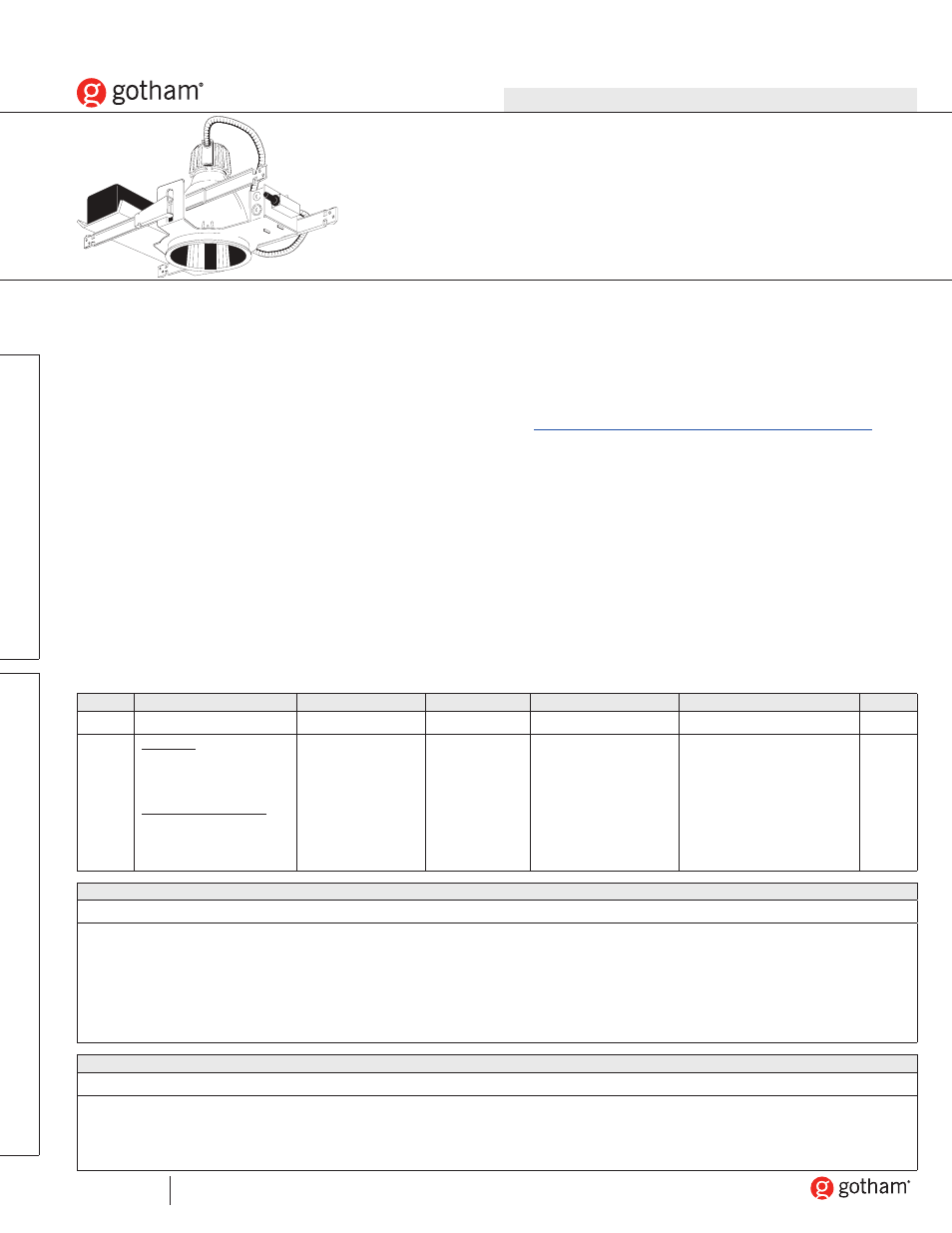

6” ah
Luminaire Type:
Catalog Number
(autopopulated):
© 2008-2013 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 07/01/13. Specifications subject to change without notice.
PAGE 1 OF 3
AH-6-OPEn
Gotham Architectural Downlighting
HID Downlights
6” AH
Open Reflector
Metal Halide Lamp
FE
AT
U
RE
S
OR
DER
ING
IN
FO
RM
AT
ION
OPTICAL SYSTEM
•
Self-flanged semi-specular or matte-diffuse reflector. Patented Bounding
Ray™ Optical Principle design (U.S. Patent No. 5,800,050). Minimum flange
matches reflector finish.
•
Baffle/cone – Semi-specular clear upper reflector. Microgroove baffle with white
painted flange or specular black cone with flange that matches cone finish.
MECHANICAL SYSTEM
•
16-gauge galvanized steel construction; maximum 7/8” ceiling thickness.
•
Telescopic mounting bars maximum of 32” and minimum of 15”, preinstalled,
4” vertical adjustment.
•
Toolless post-installation adjustments.
•
Junction box capacity: 8 (4 in, 4 out) 12AWG rated for 90°C.
ELECTRICAL SYSTEM
•
Die-cast aluminum lampholder housing.
•
Medium-base porcelain socket with nickel-plated screw shell. Extended
porcelain socket for “open fixture” rated lamps.
•
Prewired, encased-and-potted, 120/277V or 120/347V ballast tray module.
Module can be attached before or after mounting of mounting/plaster frame.
•
Thermally activated insulation detector.
LISTING
•
Fixtures are UL Listed for thru-branch wiring, non-IC recessed mounting and
damp locations. Listed and labeled to comply with Canadian standards.
WARRANTY
•
1-year limited warranty. Complete warranty terms located at
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
EXAMPLE: AH 100M 6AR N 120 TRW
Series
Wattage/Lamp
1
Aperture/Trim color
Distribution
Finish
Lens type
5
Voltage
AH
Metal halide
50M
70M
100M
Color-corrected metal halide
2
50MHC
70MHC
100MHC
6AR
Clear
6PR
Pewter
6WTR
Wheat
6MB
3
Black baffle
6WB
3
White baffle
(blank) Wide
N
narrow
(blank) Semi-specular
LD
Matte-diffuse
(blank)
no lens
CGL
Clear glass lens
T73
Tempered prismatic lens
120
277
347
4
Options
WLP
With lamp (shipped separately)
TRW
White painted flange (standard with 6MB and 6WB)
TRBL
Black painted flange
RRL
6
RELOC
®
-ready luminaire. Provides compatibility with Lithonia RELOC system. Access
above ceiling required.
QRS
7
Quartz restrike system
QRSTD
7
Quartz restrike system with time delay
EC
8
Emergency circuit
SF
Single fuse
HEB
9
Electronic ballast
CP
Chicago plenum
GSKT
Foam gasketing
ACCESSORIES order as separate catalog numbers (shipped separately)
SCA6
Sloped ceiling adapter. Degree of slope must be specified (10D, 15D, 20D, 25D, 30D). Ex: SCA6
10D
CTA4-8YK
Ceiling thickness adapter (extends mounting frame to accommodate ceiling thickness up to 3-1/4” narrow distribution and 2-1/4 standard)
