Gotham 10 A Open Reflector SpecSheet User Manual

10” a

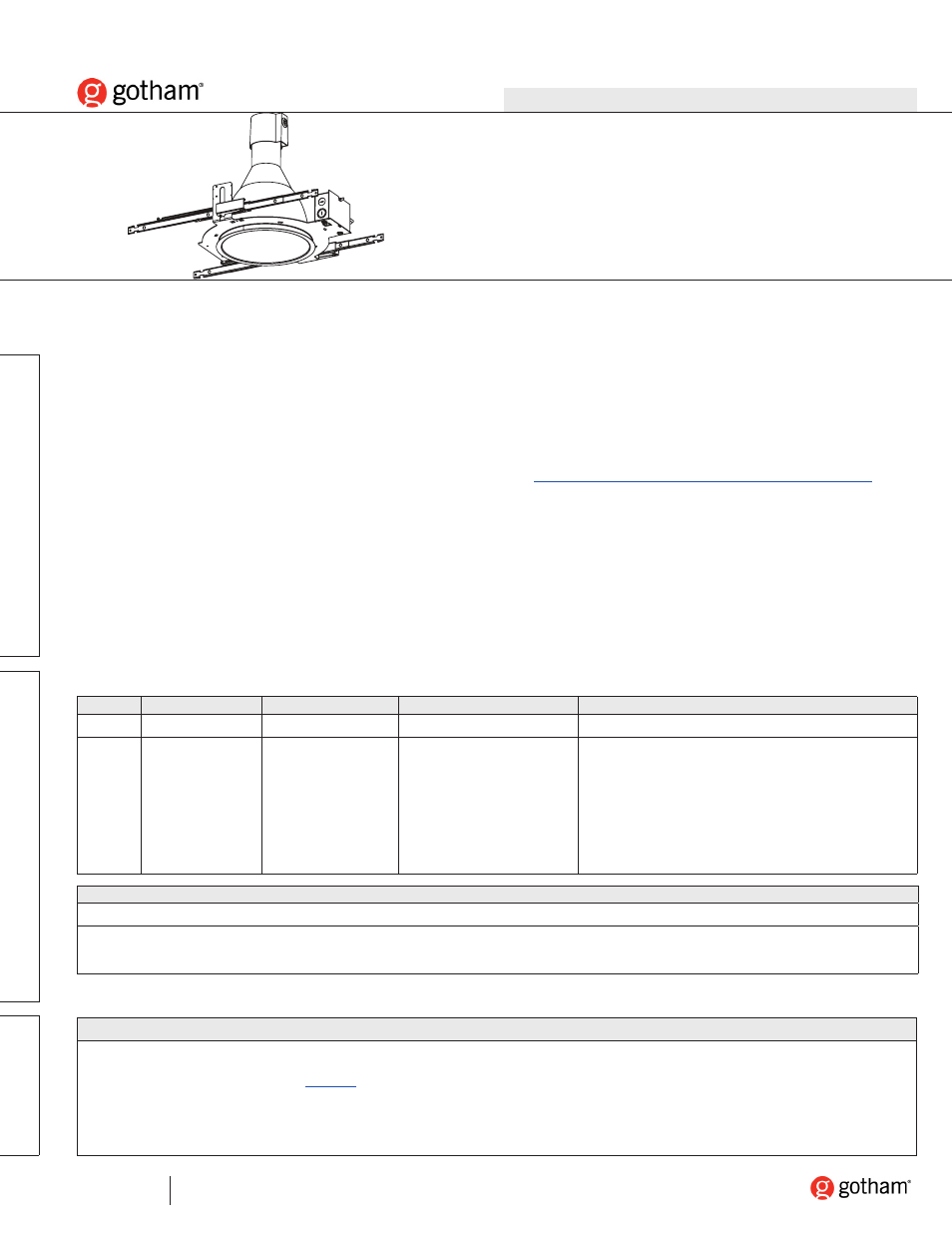

background image

Luminaire Type:
Catalog Number
(autopopulated):

GOTHAM ARCHITECTURAL DOWNLIGHTING | 1400 Lester Road Conyers GA 30012 | P 800.315.4982 | gothamlighting.com

© 2007-2013 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 06/26/13. Specifications subject to change without notice.

PAGE 1 OF 3

A-10-OPEN

Gotham Architectural Downlighting
Incandescent Downlights

10” A

Open Reflector

A21, A23 or PS25 Lamp

FE

AT

U

RE

S

OR

DER

ING

IN

FO

RM

AT

ION

N

OT

ES

OPTICAL SYSTEM

Reflector: Self-flanged, semi-specular, matte-diffuse or specular reflector.
Patented Bounding Ray™ Optical Principle design (U.S. Patent No. 5,800,050)
provides lamp before lamp image and smooth transition from top of reflector to
bottom. Minimum flange matches reflector finish.

Baffle: Semi-specular reflector. Microgroove baffle with white painted flange.

MECHANICAL SYSTEM

16-gauge galvanized steel mounting/plaster frame with friction support springs
to retain optical system. Accommodates up to 7/8” thick ceiling standard.

Integral yoke with constant force spring used to retain baffle optical system and
accommodates up to 6” thick ceiling with no additional parts or modifications.

16-gauge galvanized steel mounting bars with continuous 4” vertical adjust-
ment are shipped pre-installed. Post installation adjustment possible without
the use of tools from above or below ceiling.

Galvanized steel junction box with hinged access covers and spring latch. Two
combination 1/2”-3/4” and two 1/2” knockouts for straight-through conduit
runs. Capacity: 8 (4 in, 4 out) No. 12 AWG conductors rated for 90°C.

ELECTRICAL SYSTEM

Die-cast aluminum lampholder housing.

Medium-base porcelain socket with nickel-plated screw shell.

Thermally-activated insulation detector.

LISTING

Fixtures are UL Listed for thru-branch wiring, non-IC recessed mounting and
damp locations. Listed and labeled to comply with Canadian standards.

WARRANTY

1-year limited warranty. Complete warranty terms located at:

www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx

EXAMPLE: A 10AR

Series

1

Aperture/Trim color

Finish

Lens type

Options

A

10AR

Clear

10PR

Pewter

10UBR Umber
10WTR Wheat
10GR

Gold

10WR

2

White painted

10MB

2

Black baffle

10WB

2

White baffle

(blank) Semi-specular
LD

Matte-diffuse

LS

Specular

(blank)

No lens

CGL

Clear glass lens

T73

Tempered prismatic lens

SDT

Stepdown transformer (277V to 120V)

SF

Single fuse

TRW

White painted flange

TRBL

Black painted flange

GSKT

Foam gasketing

RRL

4

RELOC

®

-ready luminaire. Provides compatibility with Lithonia

RELOC system. Access above ceiling required.

ACCESSORIES order as separate catalog numbers (shipped separately)

SCA10

Sloped ceiling adapter. Degree of slope must be specified (10D, 15D, 20D, 25D, 30D). Ex: SCA10 10D.

CTA10 YK

Trim retention yoke with constant force spring to accommodate ceiling thickness up to 6” (ships standard with MB and WB trims)

ORDERING NOTES

1.

Maximum wattage: 150W A21-IF lamp; 200W A23-IF or 300W PS25-IF lamp.

2.

Not available with finishes.

3.

For compatible RELOC systems, refer to

TECH-110

.
