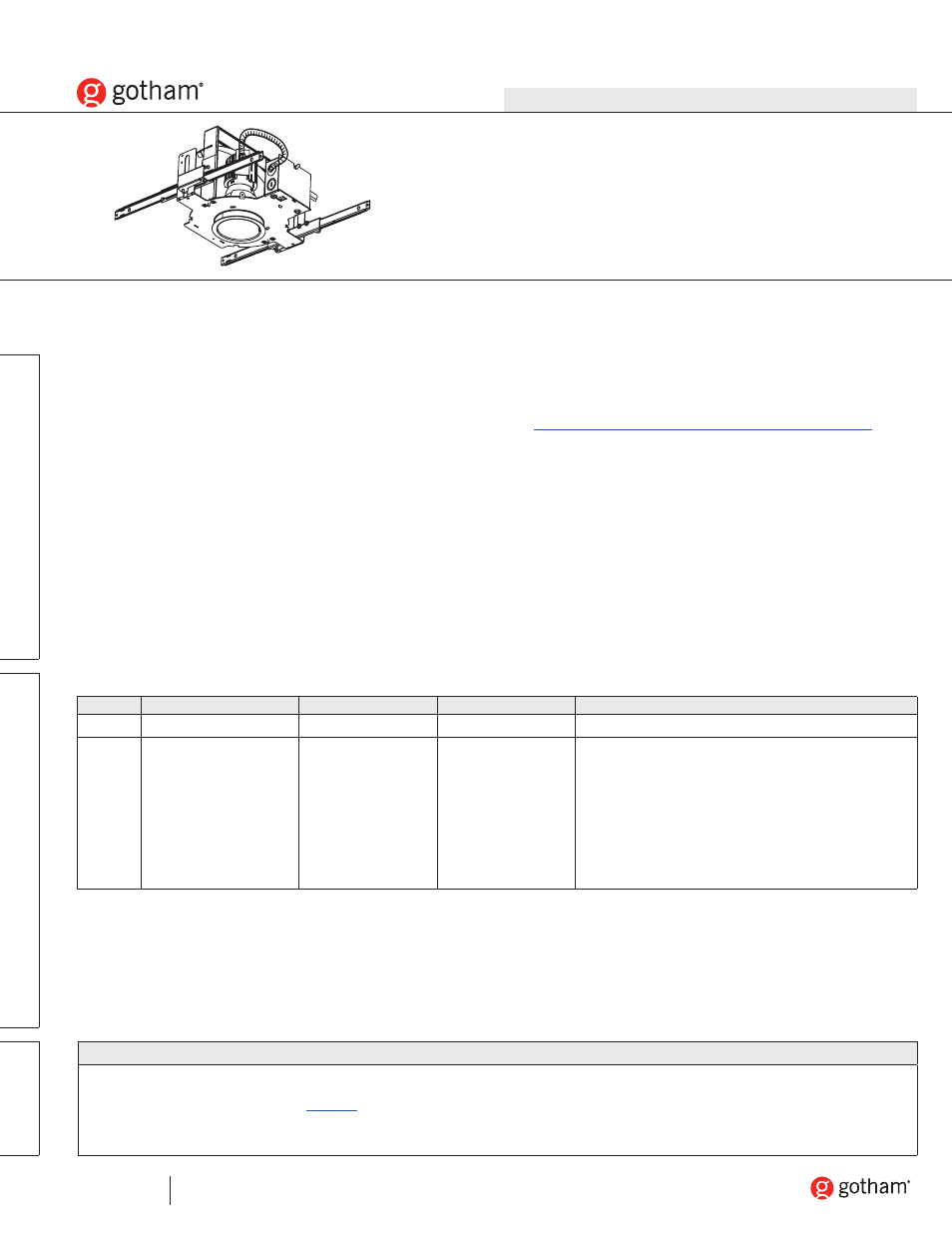

AW-4-OPEN
Gotham Architectural Downlighting
Incandescent Downlights
4” AW
Open Wallwash
A19 or BT15 Lamp
OPTICAL SYSTEM
•
Self-flanged, semi-specular, specular or matte diffuse reflector. Patented
Bounding Ray™ Optical Principle design (U.S. Patent No. 5,800,050).
•
Patented hybrid kicker utilizes a multi-finish process to provide maximum
vertical illumination on the wall.
MECHANICAL SYSTEM
•
16-gauge galvanized steel construction; maximum 1-5/8” ceiling thickness.
•
Telescopic mounting bars maximum of 32” and minimum of 15”, preinstalled,
4” vertical adjustment.
•
Toolless adjustments post installation.
•
Junction box capacity: 8 (4 in, 4 out) No. 12AWG rated for 90°C.
ELECTRICAL SYSTEM
•
Die-cast aluminum lampholder housing.
•
Medium-base porcelain socket with nickel-plated screw shell.
•
Thermally activated insulation detector.
LISTING
•
Fixtures are UL listed for thru-branch wiring, recessed mounting and damp loca-
tions and are non-IC rated. Listed and labeled to comply with Canadian standards.
WARRANTY
•
1-year limited warranty. Complete warranty terms located at:
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
EXAMPLE: AW 4AR
Series
1
Aperture/Trim color
Finish
Lens type
Options
AW
4AR
Clear
4PR
Pewter
4WTR
Wheat
4WG
Gold
4WR
2
White painted
(blank)
Semi-specular
LD
Matte-diffuse
LS
Specular
(blank)
No lens
CGL
Clear glass lens
TRW
White painted flange
TRBL
Black painted flange
RRL
3
RELOC
®
-ready luminaire. Provides compatibility with Litho-
nia RELOC system. Access above ceiling required.
SDT
Stepdown transformer (277V to 120V)
SDT347
Stepdown transformer (347V to 120V; 75W max.)
SF
Single fuse
GSKT
Foam gasketing
WRL
4
Wattage restriction label
FE
AT
U
RE
S
OR
DER
ING
IN
FO
RM
AT
ION
N
OT
ES
ORDERING NOTES
1.
Maximum wattage: 100W.
2.
Not available with LD or LS finish.
3.
For compatible R
4.
Must specify wattage: Ex.: WRL50
