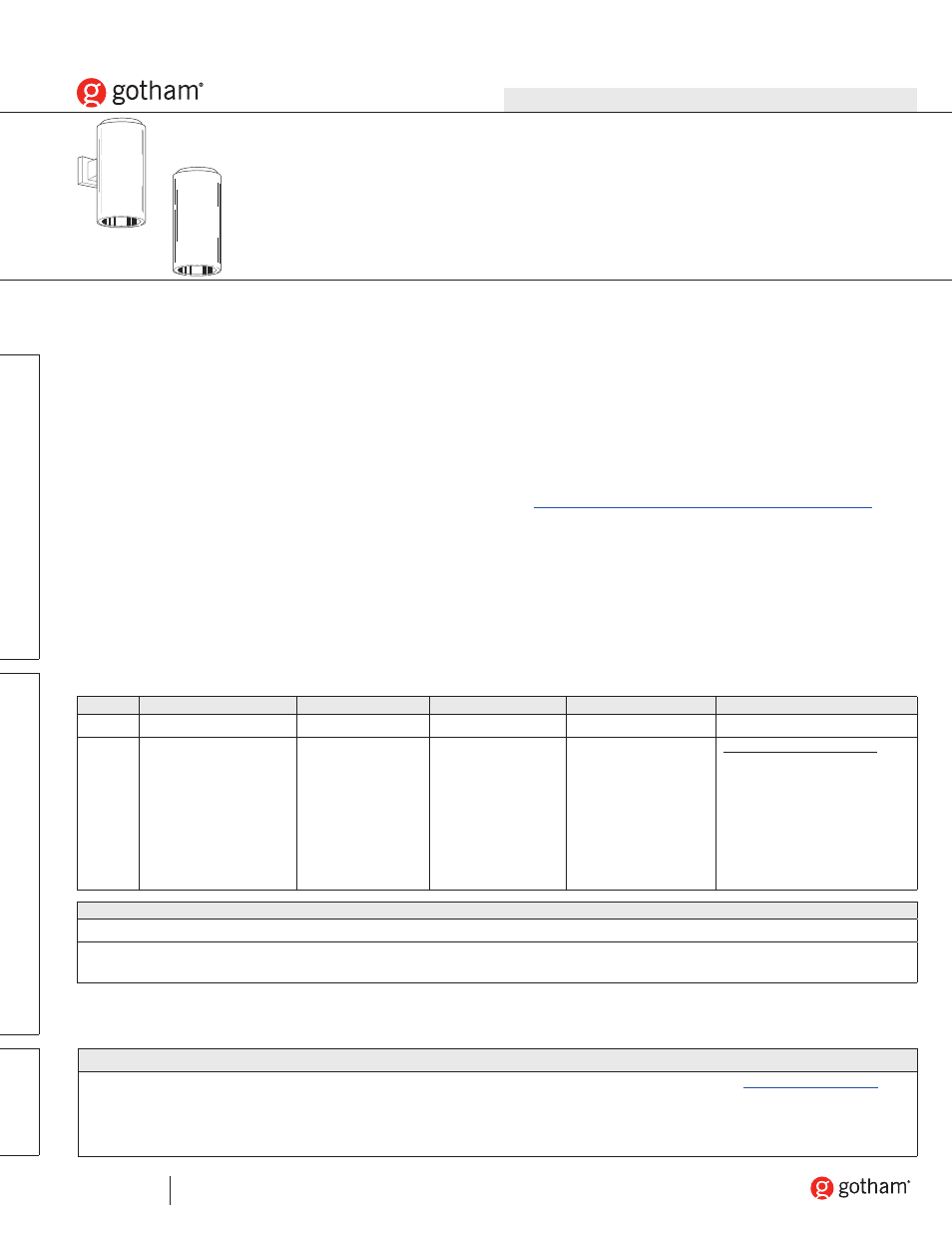

Gotham 8 CA Open Cylinders SpecSheet User Manual
8” ca
Luminaire Type:
Catalog Number
(autopopulated):
© 2006-2012 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 12/02/13. Specifications subject to change without notice.
PAGE 1 OF 3
CA-8-OPEn
Gotham Architectural Downlighting
Incandescent Cylinders
8” CA
Open Cylinders
A19, A21 or PAR Lamp,
6” Aperture
FE
AT
U
RE
S
OR
DER
ING
IN
FO
RM
AT
ION
N
OT
ES
OPTICAL SYSTEM
•
Reflector - Self-flanged, semi-specular, specular or matte diffuse reflector. Pat-
ented Bounding Ray™ Optical Principle design (U.S. Patent No. 5,800,050)
provides lamp before lamp image and smooth transition from top of reflector
to bottom.
•
Patent-pending integrated snoot on PAR 30 optical system minimizes striations
normally associated with PAR lamps.
HOUSING
•
Heavy-gauge aluminum housing with top deck for clean appearance. Matte
white textured polyester powder paint finish standard.
•
Reflector edge sits flush with cylinder wall for clean, one-piece appearance.
•
Reveal on standard ceiling and optional pendant mount give floating
luminaire appearance.
MOUNTING
•
Ceiling mount (standard) offers patented (U.S. Patent No. 4,300,190), quick
mount attachment plate for direct installation.
•
Wall mount or pendant mount available.
ELECTRICAL SYSTEM
•
Medium-base porcelain socket with nickel-plated screw shell.
LISTINGS
•
Fixtures are UL Listed for damp locations. Listed and labeled to comply with
Canadian Standards.
WARRANTY
•
1-year limited warranty. Complete warranty terms located at
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
EXAMPLE: CA8 6AR DWHG
Series
1
Lamp designation
Aperture/Trim color
Finish
Mounting
3
Options
CA8
(blank)
A19, A21 Lamp
PAR30
PAR30 (75W Max.)
6AR
Clear
6BR
2
Black
6PR
Pewter
6WTR
Wheat
6GR
Gold
6WR
2
White
(blank) Semi-specular
LD
Matte-diffuse
LS
Specular
(blank)
Ceiling mount
WM
Wall mount
PM
4
Pendant 3/8”
thread mount
Architectural Colors - Powder Paint
5
DWHG
Matte white (standard)
DDB
Dark bronze
DBL
Black
DNA
natural aluminum
DWH
Gloss white
DTG
Tennis green
DGC
Charcoal grey
DSS
Sandstone
ACCESSORIES order as separate catalog numbers (shipped separately)
CYS
6
3/8” stem and canopy with 5° “hang straight” swivel
CRS
6
3/8” stem and canopy with 45° swivel
ORDERING NOTES
1.
Maximum wattage 150W A21 lamp or 75W PAR30 lamp.
2.
Not available with finishes.
3.
Wires supplied by others.
4.
Stem not included.
5.
Additional architectural colors available; see
www.lithonia.com/archcolors
.
6.
Color and length of stem must be specified (from 6” to 240” in even incre-
ments in maximum sections of 48”). Ex.: CYS06 DWHG. Ceiling attachment for
interior use. Consult factory for exterior use. Wire not included.
