Gotham 9 CA Open Cylinders SpecSheet User Manual

9” ca

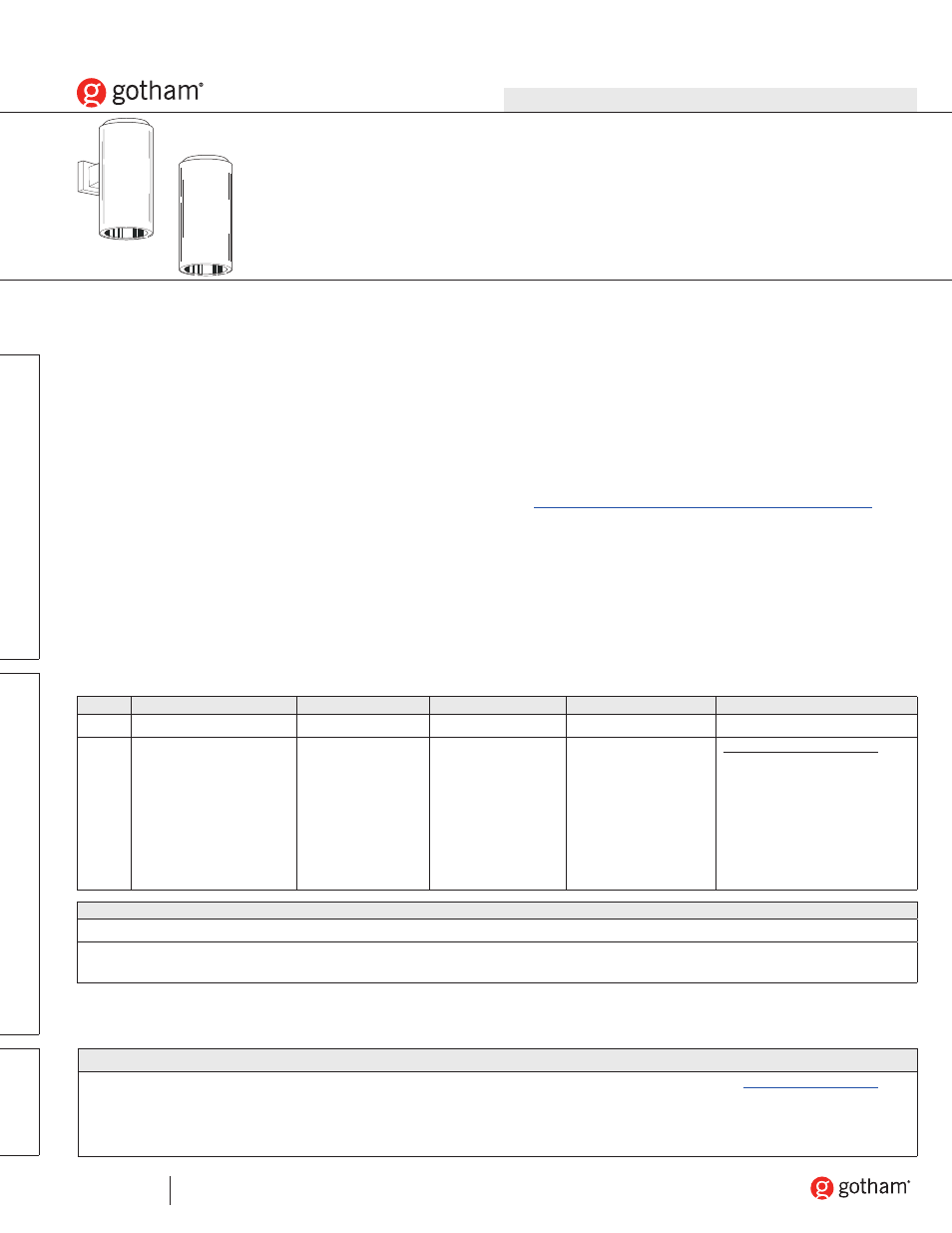

background image

Luminaire Type:
Catalog Number
(autopopulated):

GOTHAM ARCHITECTURAL DOWNLIGHTING | 1400 Lester Road Conyers GA 30012 | P 800.315.4982 | gothamlighting.com

© 2006-2013 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 12/05/13. Specifications subject to change without notice.

PAGE 1 OF 3

CA-9-OPEn

Gotham Architectural Downlighting
Incandescent Cylinders

9” CA

Open Cylinders

A21, A23, PS25 or PAR Lamp,
8” Aperture

FE

AT

U

RE

S

OR

DER

ING

IN

FO

RM

AT

ION

N

OT

ES

OPTICAL SYSTEM

Reflector - Self-flanged, semi-specular, specular or matte diffuse reflector. Pat-
ented Bounding Ray™ Optical Principle design (U.S. Patent No. 5,800,050)
provides lamp before lamp image and smooth transition from top of reflector
to bottom.

Patent-pending integrated snoot on PAR38 optical system minimizes striations
normally associated with PAR lamps.

HOUSING

Heavy-gauge aluminum housing with top deck for clean appearance. Matte
white textured polyester powder paint finish standard.

Reflector edge sits flush with cylinder wall for clean, one-piece appearance.

Reveal on standard ceiling and optional pendant mount give floating
luminaire appearance.

MOUNTING

Ceiling mount (standard) offers patented (U.S. Patent No. 4,300,190), quick
mount attachment plate for direct installation.

Wall mount or pendant mount available.

ELECTRICAL SYSTEM

Medium-base porcelain socket with nickel-plated screw shell.

LISTINGS

Fixtures are UL Listed for damp locations. Listed and labeled to comply with
Canadian standards.

WARRANTY

1-year limited warranty. Complete warranty terms located at

www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx

EXAMPLE: CA9 8AR DWHG

Series

1

Lamp designation

Aperture/Trim color

Finish

Mounting

4

Options

CA9

(blank)

A21, A23, PS25 Lamp

PAR38

PAR38 (150W Max.)

8AR

Clear

8BR

2

Black

8PR

Pewter

8WTR

Wheat

8MB

2.3

Black baffle

8WB

2,3

White baffle

8WR

2

White

(blank) Semi-specular
LD

Matte-diffuse

(blank)

Ceiling mount

WM

Wall mount

PM

5

Pendant 3/8”
thread mount

Architectural Colors - Powder Paint

6

DWHG

Matte white (standard)

DDB

Dark bronze

DBL

Black

DNA

natural aluminum

DWH

Gloss white

DTG

Tennis green

DGC

Charcoal grey

DSS

Sandstone

ACCESSORIES order as separate catalog numbers (shipped separately)

CYS

7

3/8” stem and canopy with 5° “hang straight” swivel

CRS

7

3/8” stem and canopy with 45° swivel

ORDERING NOTES

1.

Maximum wattage 300W PS25 lamp or 150W PAR38 lamp.

2.

Not available with finishes.

3.

Not available with PAR38.

4.

Wires supplied by others.

5.

Stem not included.

6.

Additional architectural colors available; see

www.lithonia.com/archcolors

.

7.

Color and length of stem must be specified (from 6” to 240” in even incre-
ments in maximum sections of 48”). Ex.: CYS06 DWHG. Ceiling attachment for
interior use. Consult factory for exterior use. Wire not included.
