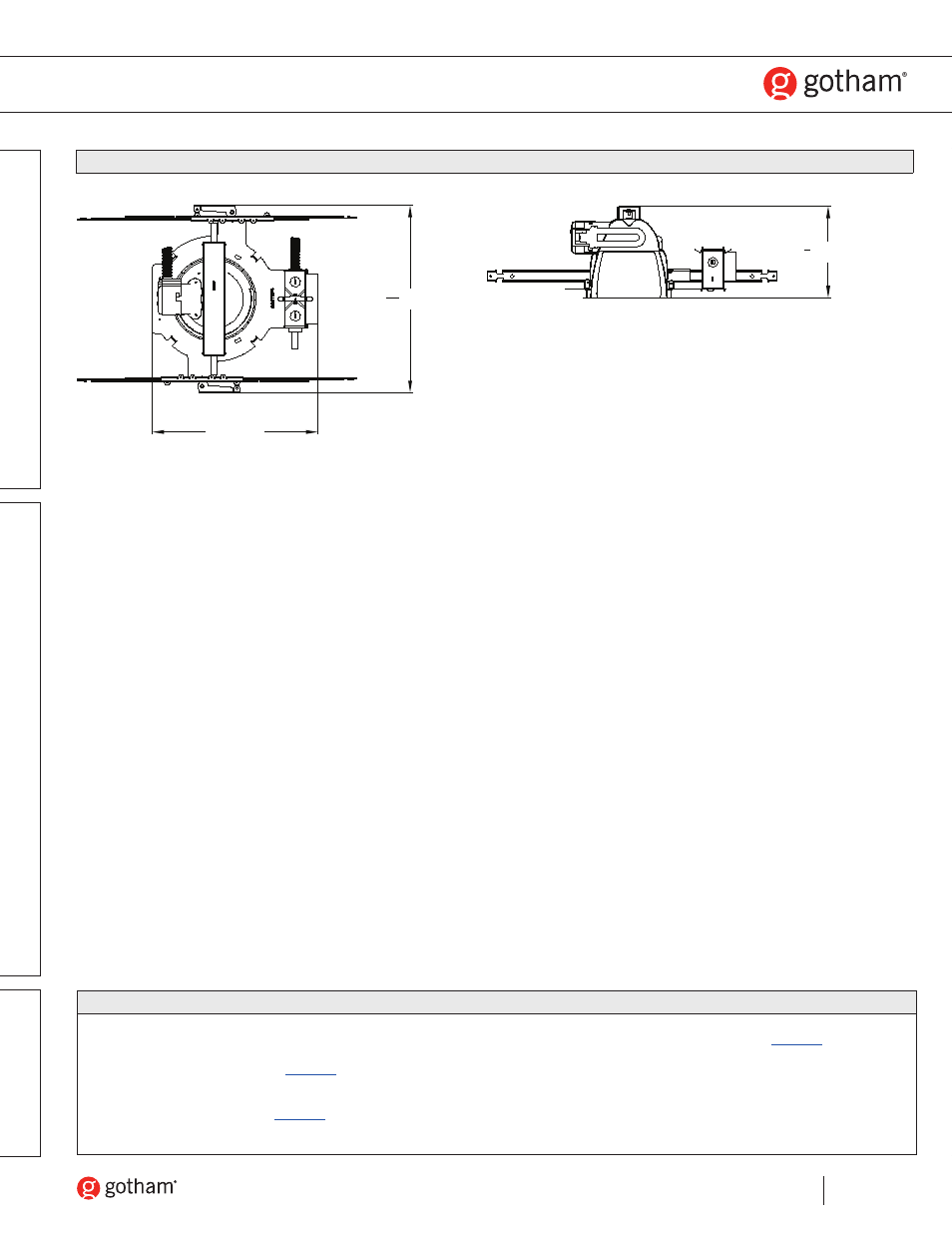

6” AFW
Open Wallwash
Horizontal Lamp, Triple-Tube
All dimensions are inches (centimeters) unless otherwise noted.
PH
OTO
M
ET
RY
ORDERING NOTES
1.
Not available with finishes.
2.
Multi-volt electronic ballast capable of operating on any voltage from 120V through
277V, 50 or 60 Hz.
3.
4.
Not available with 13W.
5.
Available in 120V or 277V only.
6.
7.
Not available with lens.
8.
For compatible RELOC systems, refer to
9.
Not available with emergency options.
10. Meets codes that require in-fixture disconnect.
11. Must specify wattage. Ex.: WRL32
14 [35.6]
1513
16 [40.2]
712 [19.1]
Aperture: 6-1/4 (15.9)
Ceiling Opening: 7-1/8 (18.1)
Overlap Trim: 7-1/2 (19.1)
Lens Recess: 2.0 (5.1)
