Gotham 6 AZW Open Wallwash SpecSheet User Manual
6” azw
Luminaire Type:
Catalog Number
(autopopulated):
© 2006-2013 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 06/26/13. Specifications subject to change without notice.
PAGE 1 OF 3

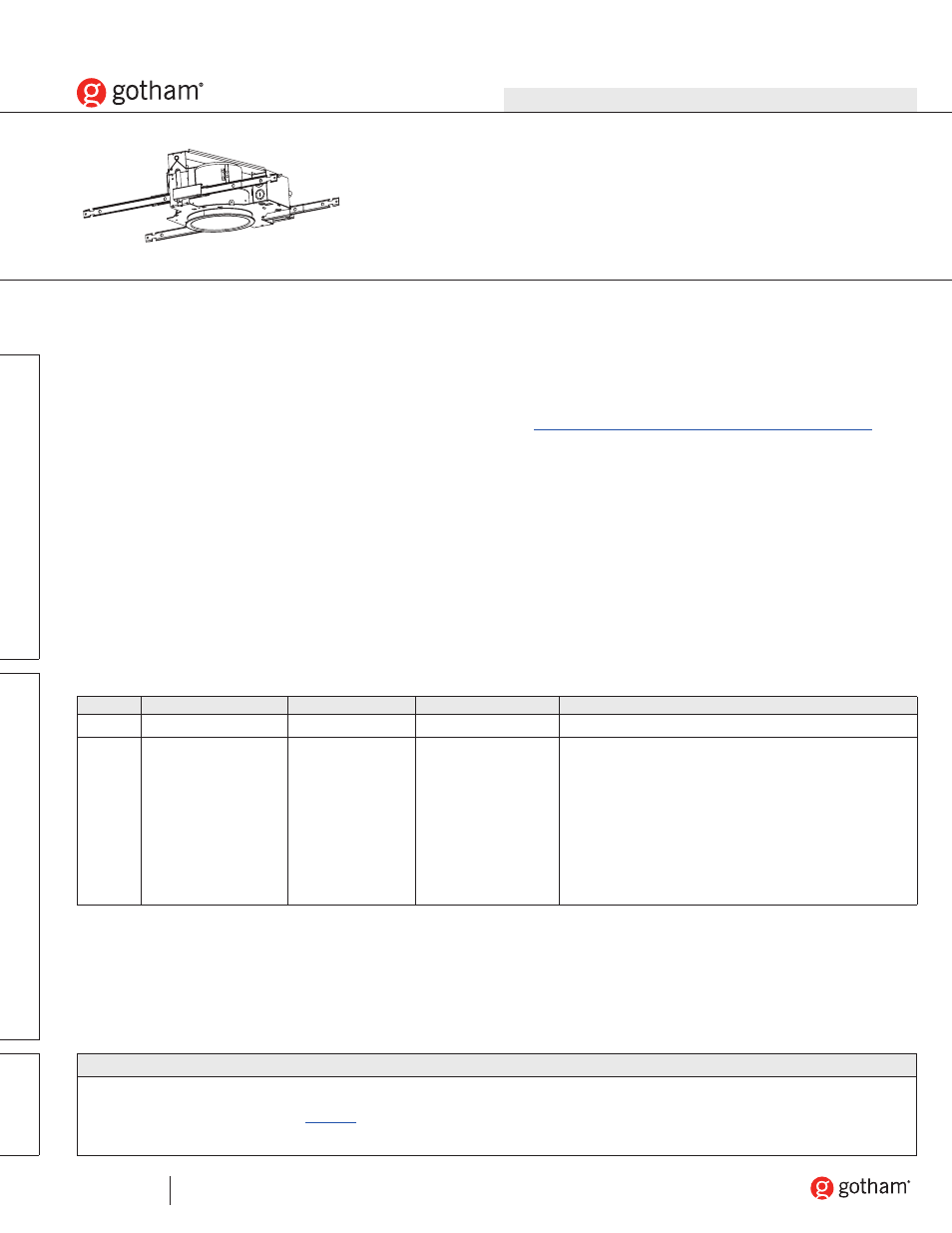

AZW-6-OPEN
Gotham Architectural Downlighting
Incandescent Low-Profile Downlights
6” AZW
Open Wallwash
Horizontal A17 or A19 Lamp
OPTICAL SYSTEM
•
Self-flanged, semi-specular, matte-diffuse or specular reflector. Patented
Bounding Ray™ Optical Principle design (U.S. Patent No. 5,800,050).
•
Patented hybrid kicker utilizes a multi-finish process to provide maximum
vertical illumination on the wall.
MECHANICAL SYSTEM
•
16-gauge galvanized steel construction; maximum 1-1/2” ceiling thickness.
•
Telescopic mounting bars maximum of 32” and minimum of 15”, preinstalled,
4” vertical adjustment.
•
Toolless adjustments post installation.
•
Junction box capacity: 8 (4 in, 4 out) No. 12AWG rated for 90°C.
ELECTRICAL SYSTEM
•
Galvanized steel lampholder housing.
•
Medium-base porcelain socket with nickel-plated screw shell.
•
Thermally activated insulation detector.
LISTING
•
Fixtures are UL Listed for thru-branch wiring, non-IC recessed mounting and
damp locations. Listed and labeled to comply with Canadian standards.
WARRANTY
•
1-year limited warranty. Complete warranty terms located at:
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
EXAMPLE: AZW 6AR
Series
1
Aperture/Trim color
Finish
Lens type
Options
AZW
6AR
Clear
6PR
Pewter
6WTR
Wheat
6GR
Gold
6WR
2
White painted
(blank) Semi-specular
LD
Matte-diffuse
LS
Specular
(blank)
No lens
CGL
Clear glass lens
TRW
White painted flange
TRBL
Black painted flange
CP
Chicago plenum
RRL
3
RELOC
®
-ready luminaire. Provides compatibility with Lithonia
RELOC system. Access above ceiling required.
SDT
Stepdown transformer (277V to 120V)
SDT347
Stepdown transformer (347V to 120V; 75W max.)
SF
Single fuse
GSKT
Foam gasketing
WRL
4
Wattage restriction label
FE
AT
U
RE
S
OR
DER
ING
IN
FO
RM
AT
ION
N
OT
ES
ORDERING NOTES
1.
Maximum wattage: 100W A17 or A19 lamp.
2.
Not available with finishes.
3.
For compatible R
4.
Must specify wattage: Ex.: WRL50
