CFZ-11-XBAFFLE
11” CFZ
Cylinders, Cross Baffle
Horizontal Lamp, Double Twin-Tube, 8” Aperture
PH
OTO
M
ET
RY

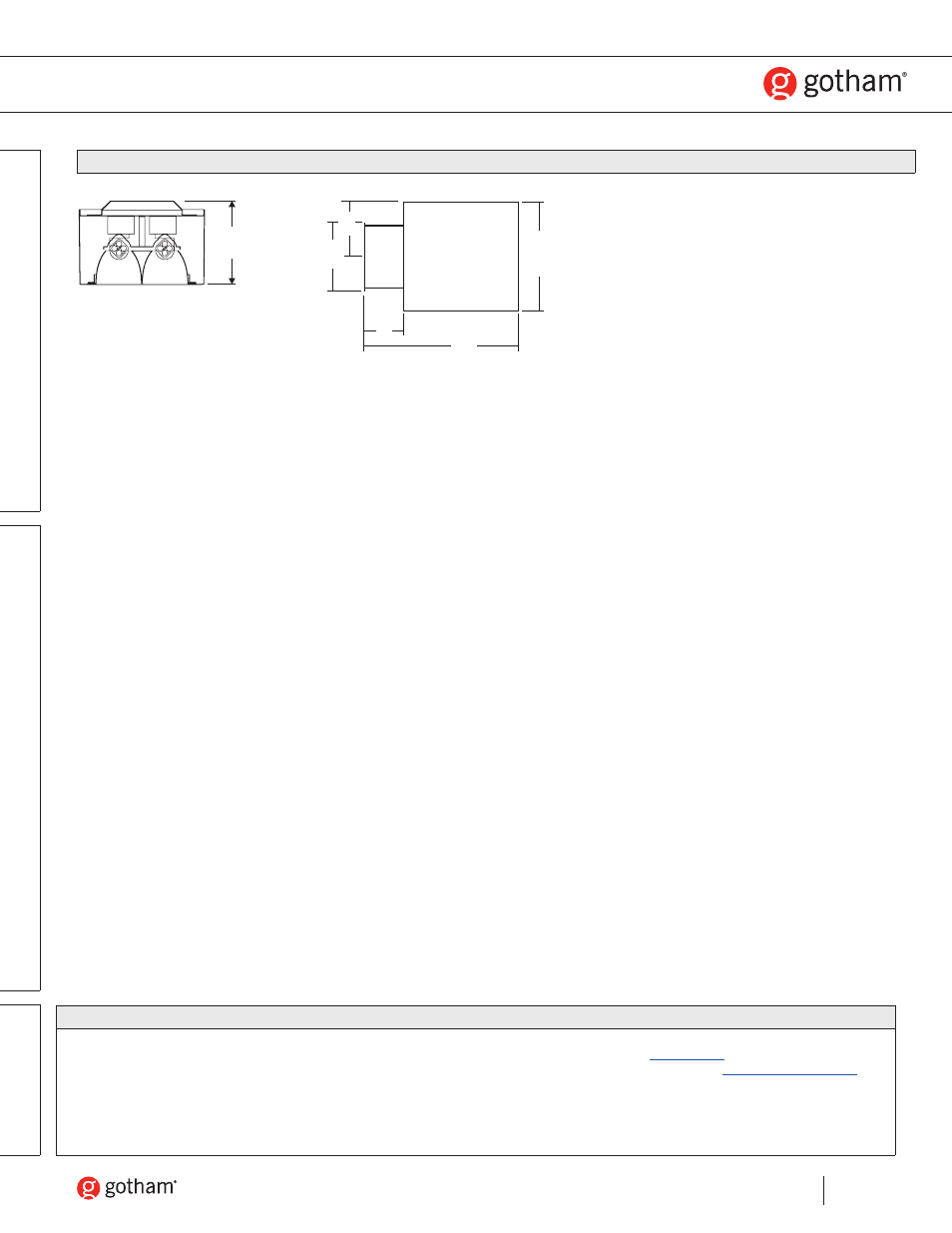

All dimensions are inches (centimeters) unless otherwise noted.
7-1/4
(18.4)
Reflector Aperture:
8 (20.3)
Housing Diameter:
10-3/4 (27.3)
7-1/8
(18.1)
A
C
D
B
A =
3-9/16 (9.0)
B =
5-5/16 (13.5)
C =
3-1/4 (8.3)
D =
14 (35.6)
Wall Mount Dimensions
DIM
EN
SIO
N
AL D
AT
A
N
OT
ES
ORDERING NOTES
1.
Not available with finishes.
2.
Multi-volt electronic ballast capable of operating on any line voltage from
120V through 277V, 50 or 60 Hz.
3.
Not available with 13W.
4.
Available in 120V or 277V only.
5.
Wires supplied by others.
6.
Stem not included.
7.
For Emergency applications order non-nLight enabled fixture and NSP5 D ER
KIT as an accessory
8.
Additional architectural colors available; see
www.lithonia.com/archcolors
.
9.
Color and length of stem must be specified (from 6” to 240” in even incre-
ments in maximum sections of 48”). Ex.: CYS06 DWHG. Ceiling attachment for
interior use. Consult factory for exterior use. Wire not included.
