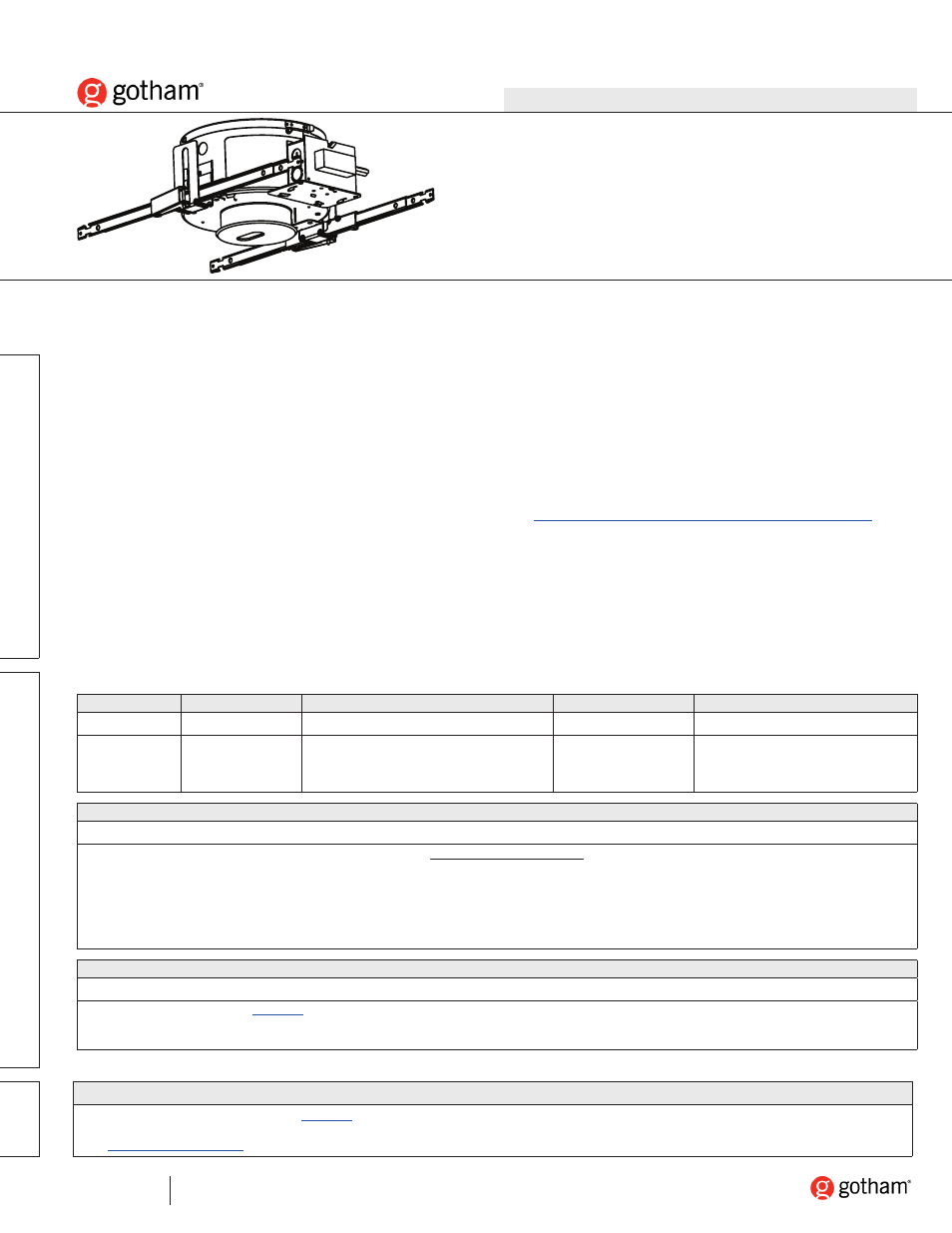

Gotham 1 DLV Fixed Pinhole SpecSheet User Manual
1” dlv
Luminaire Type:
Catalog Number
(autopopulated):
© 2007-2013 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 08/07/13. Specifications subject to change without notice.
PAGE 1 OF 3
DLV-1-FIxED-PInhOLE
Gotham Architectural Downlighting
Low Voltage Downlights
1” DLV
Fixed Pinhole
Seamless Cast Faceplate
Max 75 Watt
FE
AT
U
RE
S
OR
DER
ING
IN
FO
RM
AT
ION
N
OT
ES
OPTICAL SYSTEM
•
Internal housing components painted matte black. Lamp snoot minimizes stray
light in housing.
•
1” chamfered aperture eliminates back flash.
•
Seamless cast faceplate is retained by self-aligning, torsion support springs.
•
Accommodates up to two lenses, filters or louvers.
•
Softening lens standard.
MECHANICAL SYSTEM
•
Black painted housing features tool-less top access and accommodates a
maximum 1-1/2” ceiling thickness.
•
Re-lamp capability from above or below ceiling.
•
16-gauge galvanized steel mounting bars with continuos 4” vertical adjustment
are shipped pre-installed. Post installation adjustment possible without the use
of tools above or below ceiling.
•
Secondary housing adjustment system for precise, final flange to ceiling
alignment.
•
Galvanized steel junction box with hinged access covers and spring latch. Four
combination 1/2”- 3/4” knockouts for straight-through conduit runs. Capacity: 8
(4 in, 4 out) No. 12 AWG conductors rated for 90°C.
ELECTRICAL SYSTEM
•
Tool-less access door provides access to junction box through the aperture.
•
Replaceable socket assembly. MR16 socket assembly standard.
•
12-volt electronic transformer is replaceable without the use of tools.
•
Thermally-activated insulation detector is replaceable without the use of tools.
LISTING
•
Fixtures are UL Listed for thru-branch wiring, non-IC recessed mounting and
damp locations. Listed an labeled to comply with Canadian standards.
WARRANTY
•
1-year limited warranty. Complete warranty terms located at
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
EXAMPLE: DLV DWN MR16 1P 120 DWHG
Series
Configuration
Wattage/Lamp
Aperture/Type
Voltage
DLV
DWN
MR16
MR16 capability (standard)
MR11
MR11 capability
ALR12
ALR12 capability
1P
Pinhole
120
277
347
Options
LRC
1
Provides compatibility with Lithonia RELOC
®
System. Lithonia
Reloc System can be installed less this option with connectors
provided by others. Access above ceiling required
SHHSG
hSG height reduced to 5-3/4” (14.6)
Architectural colors (powder finish)
2
DWHG
Matte white (standard)
DDB
Dark bronze
DBL
Black
DWH
Gloss white
DMB
Medium bronze
DNA
natural aluminum
DSS
Sandstone
DGC
Charcoal gray
DTG
Tennis green
DBR
Bright red
DSB
Steel blue
ACCESSORIES order as separate catalog numbers (shipped separately)
•
For lens accessories, refer to
ORDERING NOTES
1.
.
2.
Color available for faceplate. Additional architectural colors available; see
