Gotham GQT Housing (ROUGH-IN SECTION) User Manual
Page 2

Part No. CJ52046
3/05

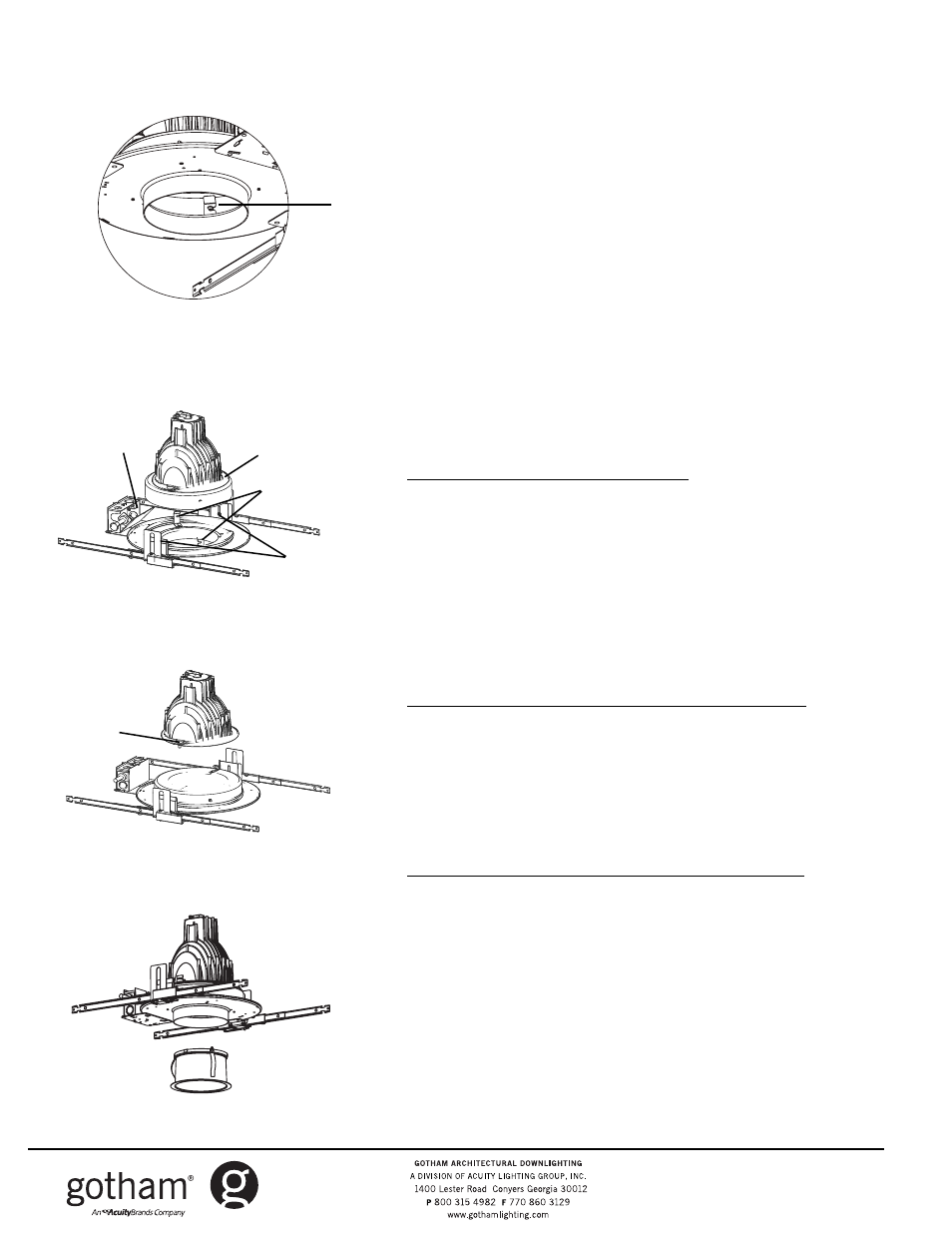

Figure 7
A
Figure 6
A
B
C
D
For GQT, simply lift the housing and place it to the side. Loosen two (2)
hex head screws on bracket (180
o
apart) (See Figure 6D) and adjust
vertically. The flange will be slightly above the bottom of the
ceiling material (1/16”-1/8”).
10. To make fine tune housing adjustments in ceilings with above ceiling
access, removal of upper housing assembly is not required. Loosen
two (2) hex head screws on bracket (180
o
apart) (See Figure 6D) and
adjust vertically. The flange will be slightly above the bottom of the
ceiling material (1/16”-1/8”).
11. Install lamp (this fixture requires coated (frosted) T-4, mini-can base
lamps). Consult label on inside of drop down flange of housing for
specific wattages appropriate for your fixture. Fixtures are wattage
specific. Be sure to read and follow all of the lamp manufacturers
directions and recommendations.
12. Housing installation is complete. Complete entire installation process
by referring to trim installation instructions - CJ52047.
WARNING: DO NOT ENERGIZE FIXTURES WITHOUT FINISH TRIM IN
PLACE. PROTECTIVE GLASS SHIELD MUST BE USED WITH THIS
FIXTURE AT ALL TIMES.
LAMP REPLACEMENT FROM ABOVE CEILING
1.
Disengage both tool-less ¼ turn fasteners (See Figure 7A) by turning
them counter clockwise.
2.
Lift cast housing from its position.
3.
Remove lamp and install new lamp (this fixture requires coated
(frosted) T-4, mini-can base lamps). Consult label on inside of drop
down flange of housing for specific wattages appropriate for your
fixture. Fixtures are wattage specific. Be sure to read and follow all
of the lamp manufacturers directions and recommendations.
4.
Replace cast housing to original position and secure both tool-less ¼
turn fasteners by turning them clockwise.
LAMP REPLACEMENT FROM BELOW CEILING - Refer to Figure 8
1.
Remove trim as described on the trim instruction sheet - CJ52047.
2.
Remove lamp and install new lamp (this fixture requires coated
(frosted) T-4, mini-can base lamps). Consult label on inside of drop
down flange of housing for specific wattages appropriate for your
fixture. Fixtures are wattage specific. Be sure to read and follow all
of the lamp manufacturers directions and recommendations.
3.
Reinstall trim as described on the trim instruction sheet - CJ52047.
INSULATION DETECTOR REPLACEMENT FROM BELOW CEILING
1.
Remove trim as described on the trim instruction sheet - CJ52047.
2.
Loosen two (2) thumbscrews (on GQ) or two (2) hex head screws (on
GQT) located 180
o
apart inside housing (See Figures 5A and 6B). For
GQ, turn upper housing assembly (Figure 6A) clockwise and lift,
placing it to the side. For GQT, simply lift the housing and place it to
the side.
3.
Remove inside J-box door cover (See Figure 6C). Detector is attached
to this cover, unwire detector and replace with new one.
4.
Reassemble in reverse order.
5.
Replace trim as described on the trim instruction sheet - CJ52047.
Figure 5
Figure 8
A
