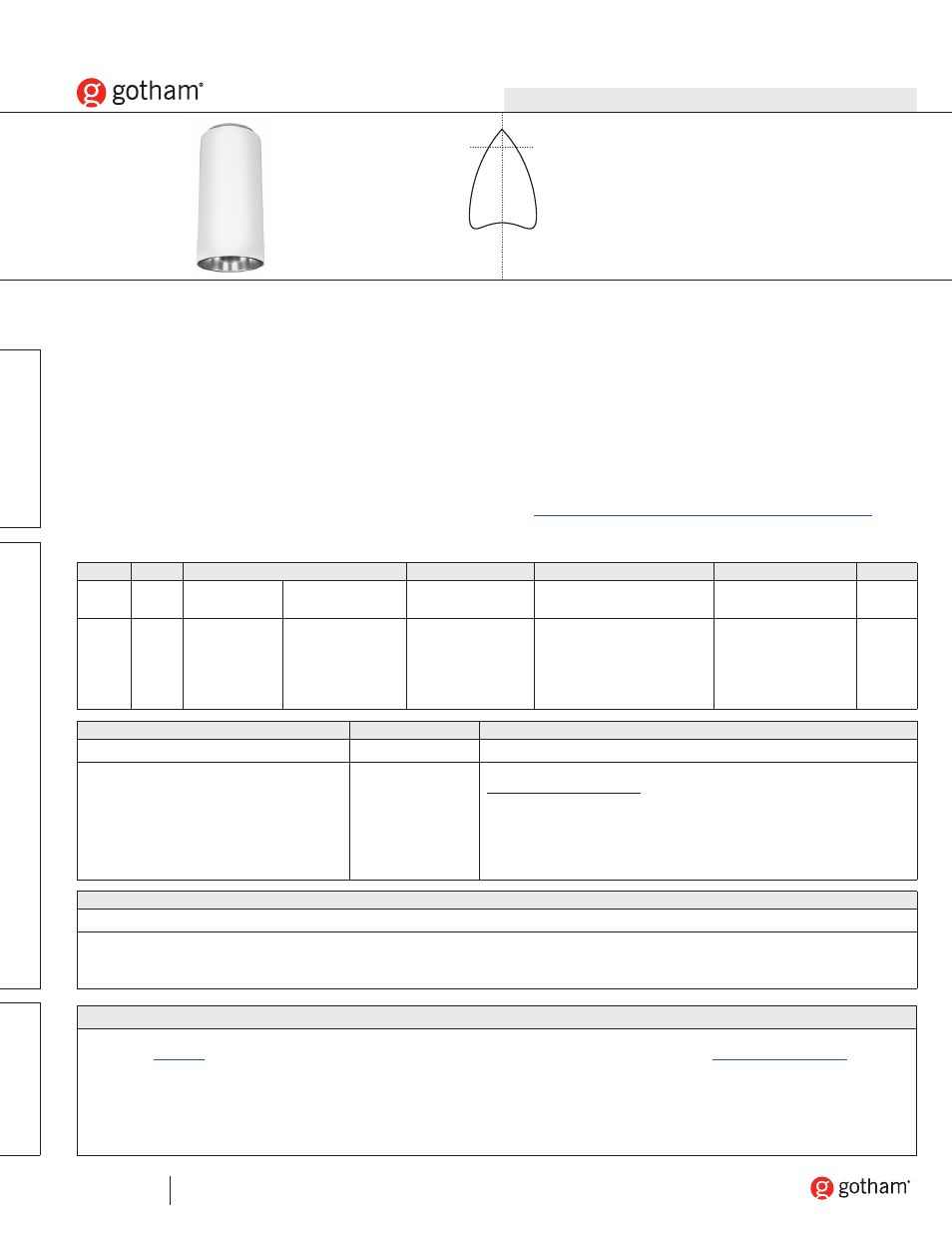

9” evo
Luminaire Type:
Catalog Number
(autopopulated):
© 2010-2014 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 03/24/14. Specifications subject to change without notice.
PAGE 1 OF 3
EVO-CYL-9
Gotham Architectural Downlighting
LED Downlights
9” Evo
®
Cylinder
Solid-State Lighting
OPTICAL SYSTEM
•
Self-flanged semi-specular, matte-diffuse or specular lower reflector
•
Patented Bounding Ray™ optical design (U.S. Patent No. 5,800,050)
•
45° cutoff to source and source image
•
Top-down flash characteristic
MECHANICAL SYSTEM
•
Heavy-gauge aluminum construction
•
Ceiling mount and wall mount for direct installation to 4” octagonal or square
junction box
•
Pendant mount entry for 3/8” National Pipe Thread stem; wires supplied by others
•
Unique mounting mechanism at top of cylinders for easy one-person installation
ELECTRICAL SYSTEM
•
Fully serviceable and upgradeable LED light engine
•
70% lumen maintenance at 60,000 hours based on IESNA LM-79-2008
•
120-277VAC, 50/60hz power supply with 0-10V dimming (10-100%); rated for
50,000-hour life
•
Overload and short circuit protected
•
Dimming wires supplied by others
LISTINGS
•
Fixtures are CSA certified to meet US and Canadian standards; wet location,
covered ceiling
WARRANTY
•
5-year limited warranty. Complete warranty terms located at:
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
EXAMPLE: EVO CYL 35/18 8AR 120 FCM DWHG
Series
Type
Color
temperature
Nominal
lumen values
Aperture/Trim color
Distribution
Finish
Voltage
EVO
CYL
27/
2700 K
30/
3000 K
35/
3500 K
41/
4100 K
18
1800 lumens
22
2200 lumens
29
2900 lumens
8AR
Clear
8PR
Pewter
8WTR
Wheat
8GR
Gold
8WR
1
White
(blank)
1.0 s/mh
VND
Very narrow (0.5 s/mh)
ND
Narrow (0.6 s/mh)
MD
Medium (0.8 s/mh)
WD
Wide (1.2 s/mh)
(blank)
Semi-specular
LD
Matte-diffuse
LS
Specular
MVOLT
120
277
Driver
Mounting
Options
(blank)
2
0-10V dimming driver. Minimum dimming
level 10%
ECOS2
3,4,5
Lutron
®
Hi-lume
®
2-wire forward-phase
dimming driver. Minimum dimming level 1%
ECOS3
2,3,4
Lutron
®
Hi-lume
®
3-wire or EcoSystem
®
dimming driver. Minimum dimming level 1%
FCM
Ceiling mount
WM
Wall mount
PM
6
Pendant 3/8”
thread mount
ACC
7
Aircraft
cable and cord
mount
SF
8
Single fuse
Architectural Colors - Powder Paint
9
DWHG
Matte white (standard)
DDB
Dark bronze
DBL
Black
DWH
Gloss white
DMB
Medium bronze
DNA
Natural aluminum
DSS
Sandstone
DGC
Charcoal grey
DTC
Tennis green
DBR
Bright red
DSB
Steel blue
ACCESSORIES order as separate catalog numbers (shipped separately)
CYS
10
3/8” stem and canopy with 5° “hang straight” swivel
CRS
10
3/8” stem and canopy with 45° swivel
SDT 347/120 75VA
11
347V Step-down transformer
ORDERING NOTES
1.
Not available with finishes.
2.
Refer to
TECH-240
for compatible dimmers.
3.
4.
Not available with 2900 lumens.
5.
120V only.
6.
Wires supplied by others.
7.
10’ aircraft cable. White cord with white housings. All others black cord.
8.
120V or 277V only.
9.
Additional architectural colors available; see
www.lithonia.com/archcolors
.
10. Color and length of stem must be specified (from 6” to 240” in even increments in
maximum sections of 48”). Ex.: CYS06 DWHG. Ceiling attachment for interior use.
Consult factory for exterior use. Wire not included.
11. Transformer must be field-installed to an accessible remote-mounted junction box.
