Gotham 4 Evo Open Reflector SpecSheet User Manual
Page 2
© 2010-2014 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 03/18/14. Specifications subject to change without notice.
PAGE 2 OF 3
EVO-4-OPEN
4” EVO
Open Reflector
Solid-State Lighting
PH
OTO
M
ET
RY

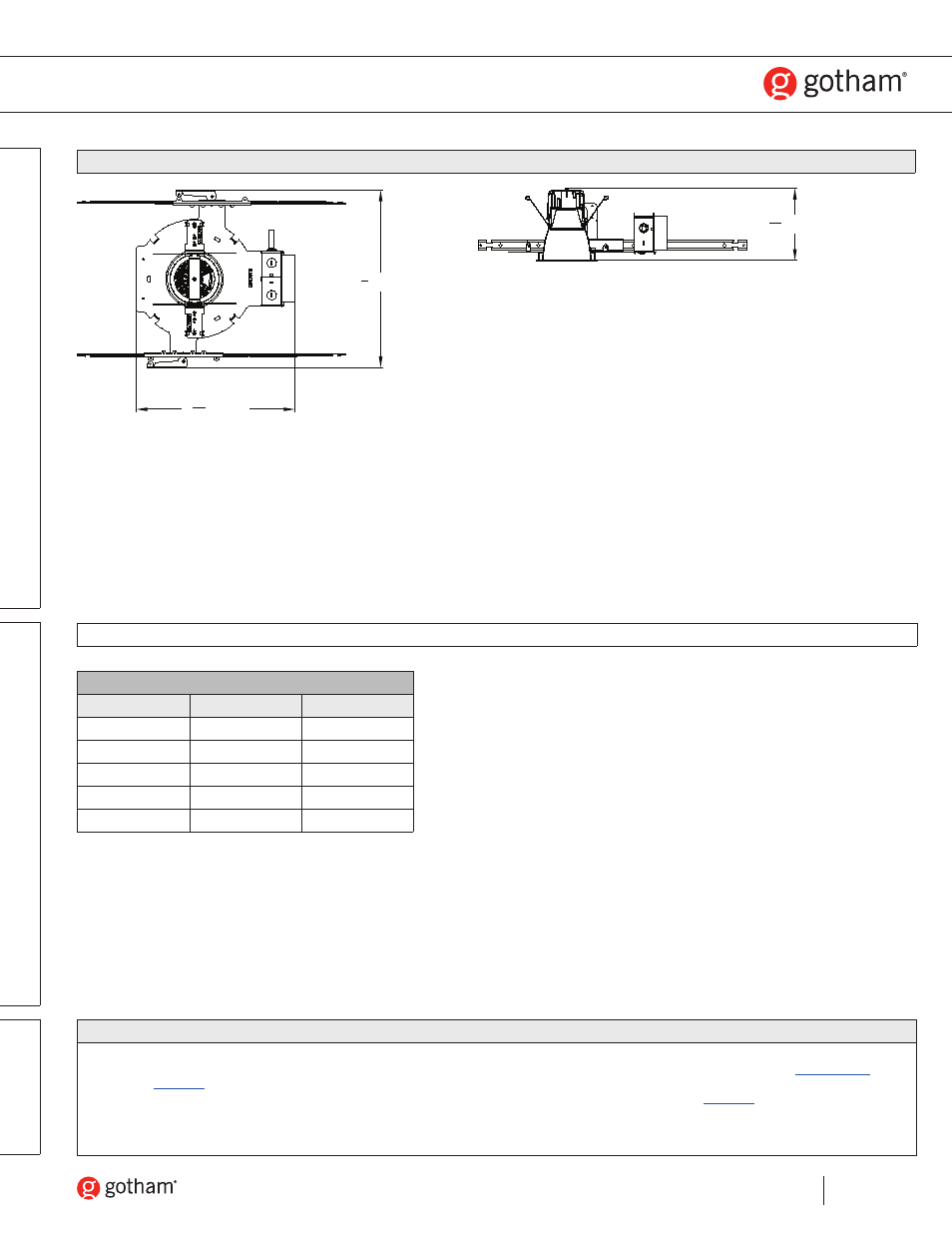

All dimensions are inches (centimeters) unless otherwise noted.
14 3
16 [36.0]
6 7
16 [16.4]
15 78 [40.3]
Aperture: 4-5/16 (11)
Ceiling Opening: 5-1/8 (13)
Overlap Trim: 5-7/16 (13.8)
WATTAGE CONSUMPTION MATRIX
LUMENS
WATTAGE
LUMENS per WATT
2000
31
65
1800
29
58
1400
26
55
1000
21
51
600
16
49
ORDERING NOTES
1.
Not available with finishes.
2.
Not valid with emergency options, i.e., EL and ELR.
3.
Refer to
4.
Not available with NEPP option.
5.
120V only.
6.
For Emergency generator/inverter applications order non-nLight-enabled
fixture and NSP5 D ER KIT as an accessory. Refer to
7.
Not available with white reflector.
8.
For dimensional changes, refer to
-
quired. Not available with CP option. Not available with 347V.
9.
Not available with EL or ELR options.
DIM
EN
SIO
N
AL D
AT
A
EL
EC
TR
IC
AL
N
OT
ES
