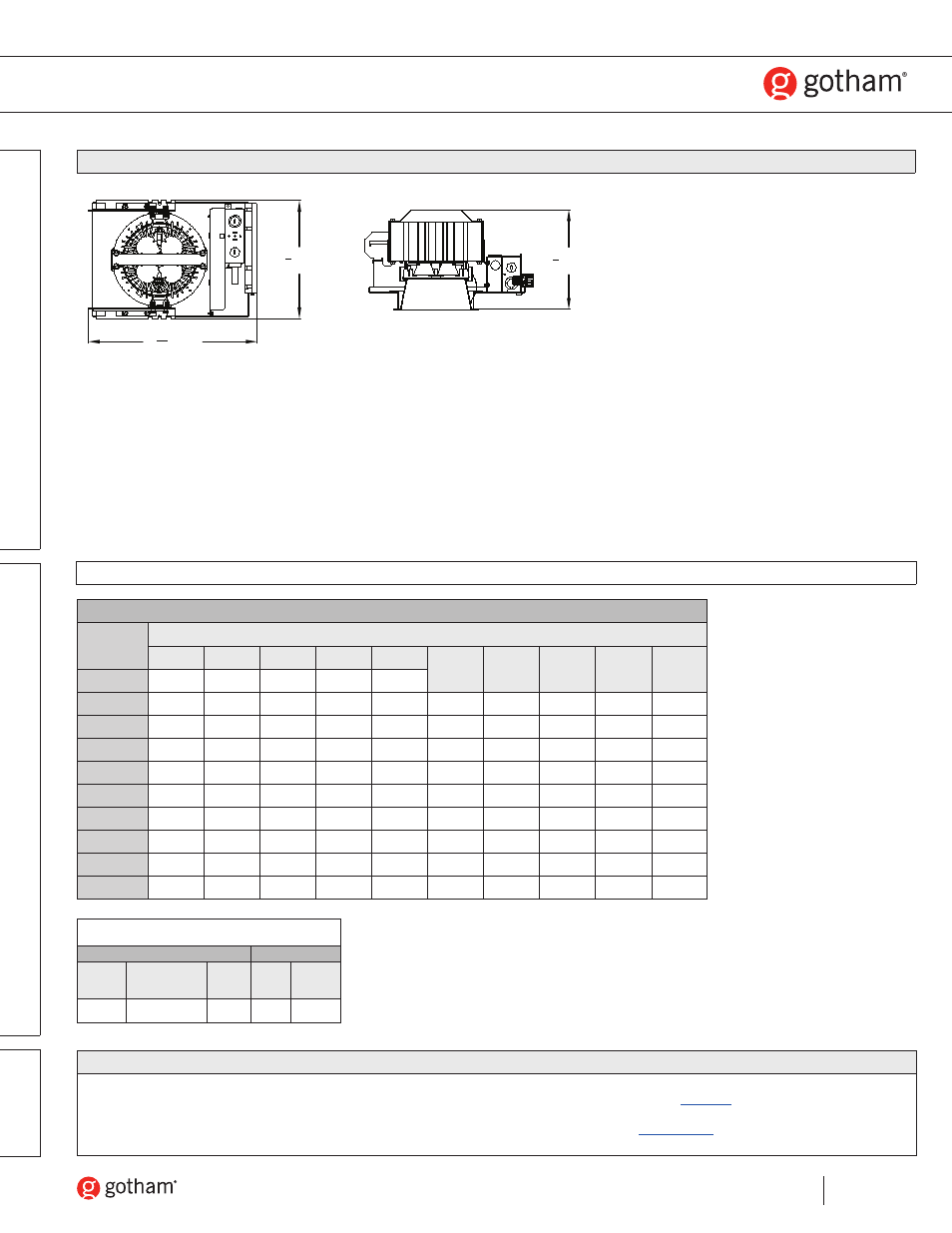

ICO-6-OPEN

6” INCITO
Open Reflector

Solid-State Lighting

PH

OTO
M

ET

RY

All dimensions are inches (centimeters) unless otherwise noted.

Aperture: 6-1/4 [15.8]

Ceiling Opening: 6-15/16 [17.6]

Overlap Trim: 7-1/2 [19.1]

151

16 [38.2]

1012 [26.7]

878 [22.5]

*

* HIGH AMBIENT FIXTURE HEIGHT - 10-5/8"

WATTAGE CONSUMPTION MATRIX

LUMENS

BEAM ANGLES

20

25

30

35

40

45

55

60

65

70

6500

101W

101W

101W

101W

101W

6000

95W

95W

95W

95W

95W

101W

101W

101W

101W

101W

5500

83W

83W

83W

83W

83W

95W

95W

95W

95W

95W

5000

75W

75W

75W

75W

75W

83W

83W

83W

83W

83W

4500

65W

65W

65W

65W

65W

75W

75W

75W

75W

75W

4000

57W

57W

57W

57W

57W

64W

64W

64W

64W

64W

3500

50W

50W

50W

50W

50W

57W

57W

57W

57W

57W

3000

42W

42W

42W

42W

42W

50W

50W

50W

50W

50W

2500

35W

35W

35W

35W

35W

42W

42W

42W

42W

42W

2000

28W

28W

28W

28W

28W

35W

35W

35W

35W

35W

DIM

EN

SIO

N

AL D
AT

A

EL

EC

TR

IC

AL

N

OT

ES

ORDERING NOTES

1.

Only available in 20° through 40° beam angles.

2.

Not available with finishes.

3.

Add 2” to overall height.

4.

Not available with white reflector.

5.

Not available with black reflector.

6.

For dimensional changes, refer to

TECH-140

. Not available with CP option.

7.

For Emergency applications order non-nLight enabled fixture and NSP5 D ER KIT
as an accessory. Refer to

NSP5 D ER KIT

.

EL/ELR AVAILABILITY / COMPATIBILITY – Initial Lumens

LED

Initial Lumens

Product

Lumens

Watts

EL/

ELR

ELRHL

ICO 6”

5,7

2000-6500

28-101

580

N/A
