Gotham 6 Evo Lensed Wallwash SpecSheet User Manual
Page 2
© 2010-2013 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 10/31/13. Specifications subject to change without notice.
PAGE 2 OF 3
EVO-LW-6
6” EVO
Lensed Wallwash
Solid-State Lighting
PH
OTO
M
ET
RY

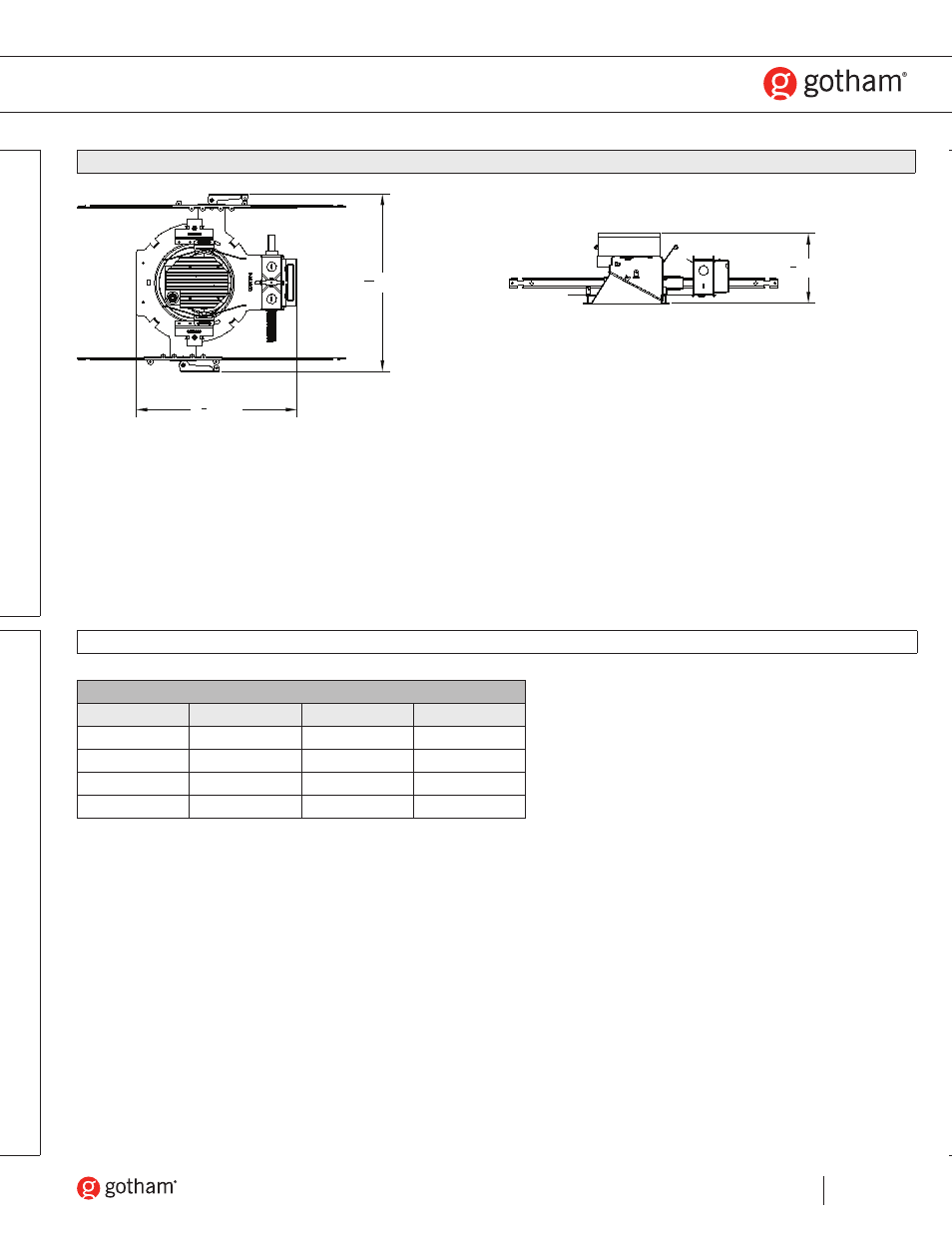

All dimensions are inches (centimeters) unless otherwise noted.
14 38 [36.5]
1513
16 [40.2]
614 [15.9]
Aperture: 6-1/4(15.9)
Ceiling Opening: 7-1/8 (18.1)
Overlap Trim:
7-1/2 (19.1)
DIM
EN
SIO
N
AL D
AT
A
EL
EC
TR
IC
AL
WATTAGE CONSUMPTION MATRIX
NOMINAL LUMENS
DELIVERED LUMENS
WATTAGE
LUMENS per WATT
1000
793
21.5
36.9
1400
1117
27.6
40.5
1800
1342
32
41.9
2200*
1516
37
41.0
*Estimated values
