Page 10
8
TPT101 / TPR101 Operation Manual - Preliminary 8/18/2003
© 2003 - EXTRON, Inc.
SUGGESTED MAXIMUM CABLE LENGTHS
Several factors will affect the video signal quality you can expect using the TPT101 / TPR101
system including the input signal resolution and refresh rate, the quality of the CAT5 cable and
the length of the cable run. Generally speaking, the higher the signal bandwidth, the shorter the
distance it can be transmitted along any cable (coaxial or UTP) before it begins to degrade. The
table below provides the maximum recommended cable lengths at various resolutions for the
TPT101 / TPR101 system using CAT5 cable:
Resolution
Maximum Length
1600 x 1200
250’
1280 x 1024
300’
1024 x 768
500’
800 x 600
500’
640 x 480
500’

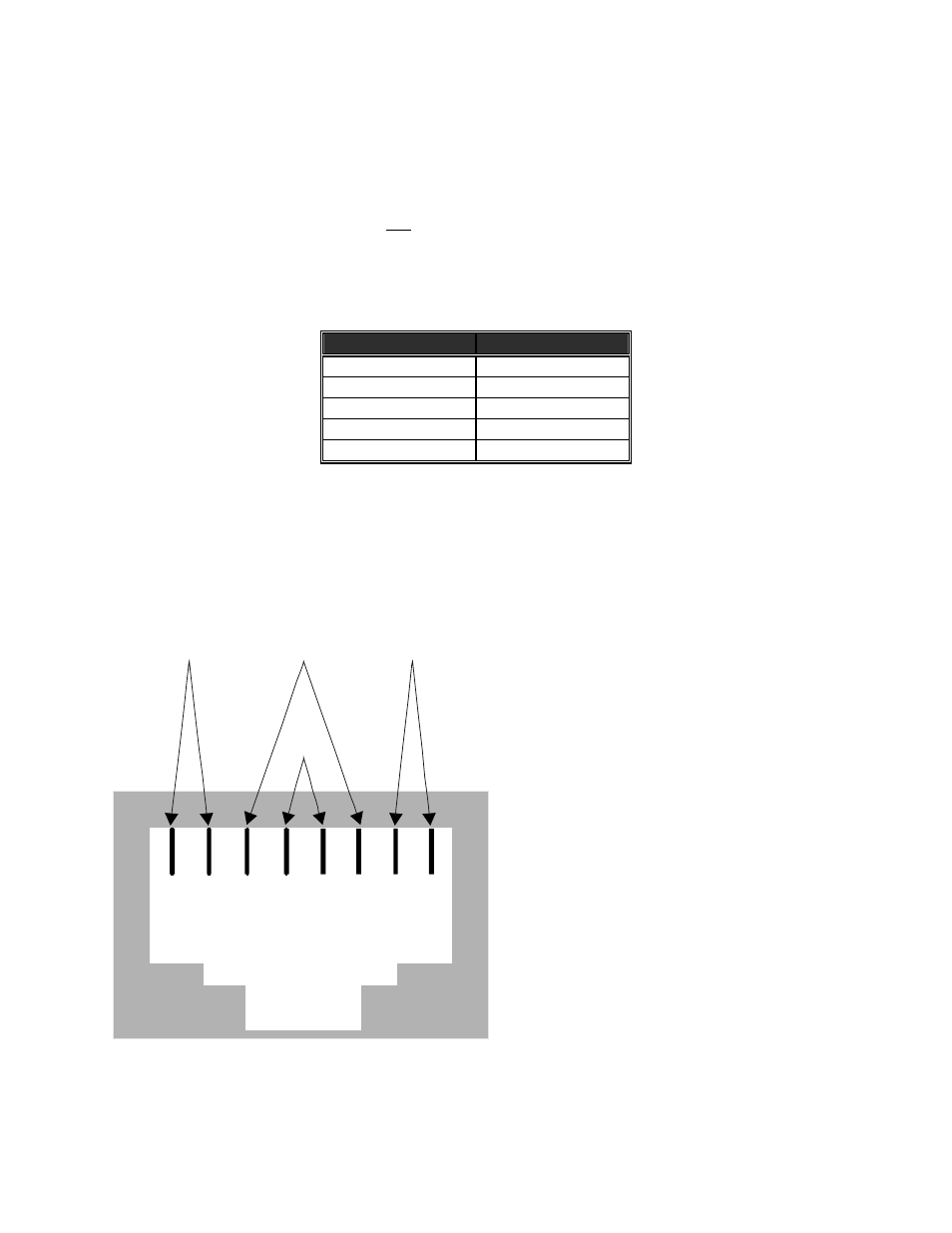

TIA 568B STANDARDS FOR CAT5 CABLE - EIGHT POSITION MODULAR
JACK PAIR ASSIGNMENTS FOR RJ45 CONNECTORS
PR2
PR3
PR4
PR1
T568B
PR1 - White Blue/Blue
PR2 - White Orange/Orange
PR3 - White Green/Green
PR4 - White Brown/Brown
1
2
3
4
5
6
7
8
W-O
O
W-G
BL
W-BL
G
W-BR
BR
