CrossPoint / MAV Matrix Switchers • Front Panel Operation
Front Panel Operation
CrossPoint / MAV Matrix Switchers • Front Panel Operation
3-3
3-2
Refer also to the CrossPoint 450 Plus / MAV Plus User’s Manual at
www.extron.com
.
Refer also to the CrossPoint 450 Plus / MAV Plus User’s Manual at
www.extron.com
.
N
The video selection button is labeled “RGBHV” on the
CrossPoint 450 Plus switcher BMEs and “Video” on the
MAV Plus switcher BMEs.

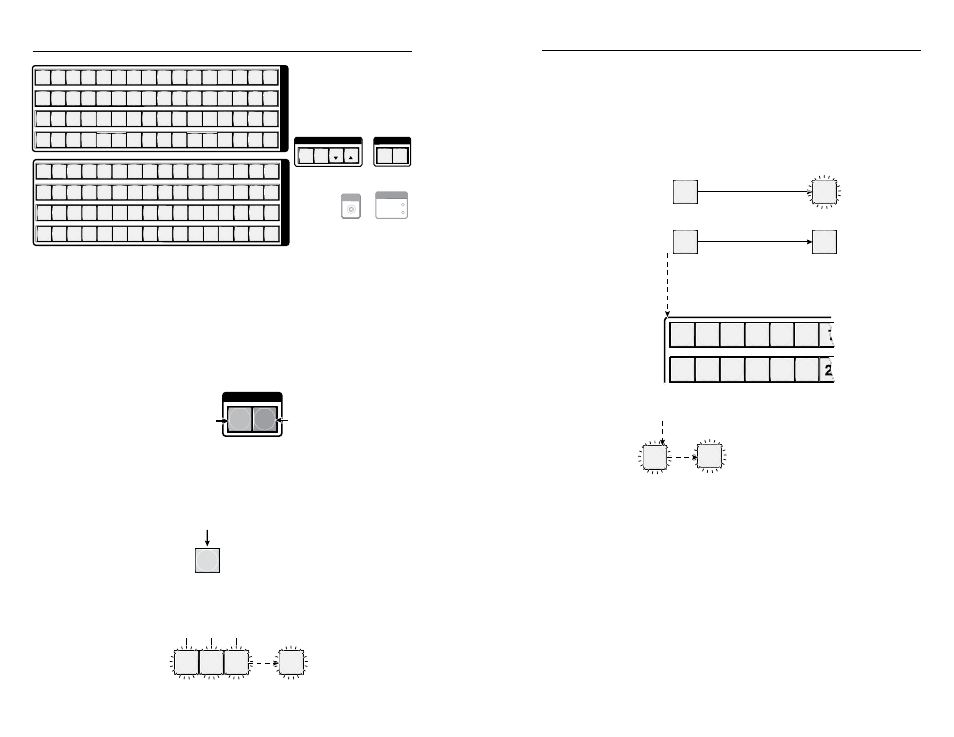

Creating a Tie
1
.
Press and release the Esc button to clear any button
indicators that may be lit.
2
.
Press and release the RGBHV/Video and/or Audio I/O
button(s) to select or deselect video and/or audio as desired.
Green when selected.
Off when deselected.
Red when selected.
Off when deselected.
I / O
RGBHV AUDIO
N
Audio or video can be broken away (tied by itself) by
selecting only the RGBHV/video button or only the
Audio button.
3
.
Press and release the desired input button.
The button lights to indicate the selection.
5
4
.
Press and release the desired output button(s).
3 4
ENTER
8
Amber indicates video and audio tie.
Green indicates video only tie.
Red indicates audio only tie.
Green indicates the need
to confirm the change.
5
.
Press and release the Enter button. All button indicators
turn off.
Saving or Recalling a Preset
1
.
Save
a preset — Press and hold the Preset button until it
flashes.
Recall
a preset — Press and release the Preset button.
PRESET
PRESET
PRESET
PRESET
Preset button blinks.
Press and
hold.
2 seconds
Save a
preset
Recall a
preset
Preset button lights.
Press and release.
1 2 3 4 5 6
17 18 19 20 21 22
• All input buttons with assigned
presets light.
• The configuration data at assigned
preset locations will be overwritten.
2
.
Press and release the desired input button.
1
ENTER
The button blinks to indicate that this
preset is selected to save or recall.
The Enter button blinks to
indicate the need to
activate the save or recall.
3
.
Press and release the Enter button.
ENTER
PRESET
VIEW
ESC
AUDIO
VIDEO
1 2 3 4 5 6 7 8 9 10 11 12
14 15 16
13
17 18 19 20 21 22 23 24 25 26 27 28
30 31 32
29
33 34 35 36 37 38 39 40 41 42 43 44
46 47 48
45
49 50 51 52 53 54 55 56 57 58 59 60
62 63 64
61
ENTER
PRESET
VIEW
ESC
AUDIO
VIDEO
ENTER
PRESET
VIEW
ESC
AUDIO
VIDEO
I
N
P
U
T
S
1 2 3 4 5 6 7 8 9 10 11 12
14 15 16
13
17 18 19 20 21 22 23 24 25 26 27 28
30 31 32
29
33 34 35 36 37 38 39 40 41 42 43 44
46 47 48
45
49 50 51 52 53 54 55 56 57 58 59 60
62 63 64
61
O
U
T
P
U
T
S
CONTROL
I/O
POWER SUPPLY
PRIMARY
REDUNDANT
I/O CONFIG
