Addendum
This section provides additional information about the specific requirements of the IPL T PC1 and IPL T PC1i controllers.
0.5 A MAX
POWER 12V
1
2
B
A 3
4
5
6
INPUTS MPS 601
CONTACT IN / TALLY OUT
HDMI
RGBHV
HDMI
HDMI RS-232
G C
1 3 5
2 4 6
T T C G T C G
G C T T C G T +V C G
Tx Rx G
OUTPUT
REMOTE
When using the IPL T PC1i system controller
(International TeamWork kits) you must replace
the power plug on the display with the
provided
12A MAX POWER OUTPUT 12A MAX
Tx LAN Rx +5V
INPUT IR
COM 100-120VAC 50/60Hz
IN S G
US
LISTED 17TT AUDIO/VIDEO APARATUS
®
Extron
VGA and HDMI Switcher
Extron

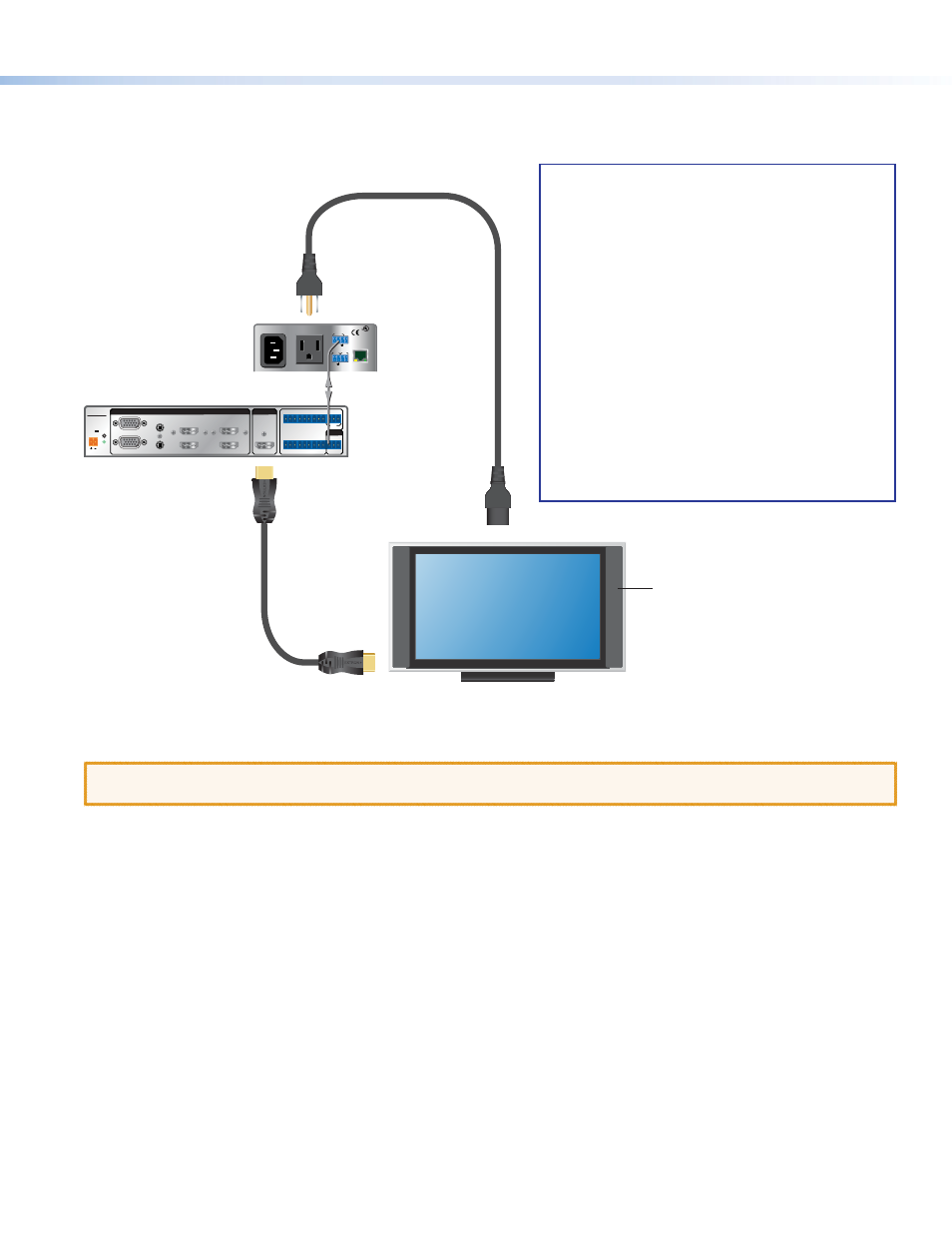

IPL T PC1 or
IPL T PC1i
RS-232
Switcher Control
AC Power
1080p Native
Resolution Display
Display should have an HDMI
input and support embedded
audio.
For audio playback,
display should have
integrated speakers.
Teamwork Systems work
by controlling AC power
to the display.
Display Requirements for the IPL T PC1 and IPL T PC1i
ATTENTION: This section applies to the IPL T PC1 and the IPL T PC1i, which controls the AC power to the display. If a
different controller is used, it needs to be configured differently (see the user guide for the controller at www.extron.com ).
The TeamWork system works with most brands and models of flat panel displays available worldwide. For optimum performance,
consider the following when selecting the displays for your TeamWork installation. The display should be tested thoroughly prior
to installation or mass deployment of TeamWork systems.
Power attributes — The IPL T PC1 works by controlling AC power to the display. When the display is in the on state with
an HDMI input selected, it must be able to power back on to the same HDMI input when AC power is disconnected and
reconnected. If the display doesn’t behave this way, an alternate display should be used. Alternatively, you may need to control
the display a different way (for example RS-232, infrared, or via Ethernet) using a different type of Extron control processor.
Sleep mode — if the display has a sleep mode feature (sometimes called ‘auto sleep’), it must be disabled. Many displays have
an option to disable this within the menu settings.
Resolution — The TeamWork systems were designed for use with flat panels having an HDMI input connector and having a
native resolution of 1080p. Many of the readily available consumer and professional displays support 1080p natively.
Audio — Audio from source devices is supported in the TeamWork system by routing it as an embedded audio signal to the
display for playback via integrated speakers. Most displays with HDMI inputs and integrated speakers work this way. Some
professional or commercial grade displays do not have integrated speakers and will not support audio playback. Typically, source
devices with HDMI output connectors embed audio onto the HDMI connector.
TeamWork systems require a display that
returns to the previous state when the power
cord is disconnected and then plugged back
in.
How to check if a display is compatible:
1. Apply AC power to the display.
2. Turn the display on.
3. Select the video input.
4. Adjust the volume.
5. Unplug the display (remove AC power).
6. Re-apply AC power to the display.
If the display powers back up (to the on state)
and to the same input and volume level, the
display will work with the TeamWork system.
IEC C14 male power cord plug
(see page 8).
