TLP 350CV and TLE 350 • Setup Guide
Overview
The Extron TLP 350CV 3.5-inch Cable Cubby
®
TouchLink
™
touchpanel and TLE 350 enclosure provide AV connectivity using
convenient pullout cables. The TLP 350CV also provides simple and versatile configuration and control for a range of IP Link
®
control systems via an Ethernet connection, using a required IP Link controller, a touch screen, and 10 customizable buttons.
Video and audio input is provided by two BNC connectors.
NOTE:
The network output must connect via a network switch, hub, or router to an Ethernet LAN or the Internet, with
an Extron IP Link controller on the same network. Suggested controllers include IPL T S series (for example, IPL T S4),
IPL 250, IPL T CR48, IPL T SFI244, or IPCP series.
The first four pages of this guide provides basic instructions for experienced installers to mount either the TLP 350CV or the
TLE 350. The last four pages show initial configuration for the TLP 350CV. For reference material and full instructions about
configuring the touchpanel, see the TLP 350CV User Guide, which is available on the Extr
).
Planning
Before making any cuts, select the best location for the
TLP 350CV or TLE 350.
Ensure that the edge that opens on the lid is oriented correctly.
Ensure there is enough space for all the system cables and
components, including cable retractors, if they are to be
installed.
Decide on the method for cutting a hole in the table:
z
Hand router and template
z
CNC wood router
z
Jigsaw and paper template
Verify that you have the correct template or dimensions.
Check all relevant regulations.
z
Ensure the installation complies with local, state, and
national building and electrical codes.
z
Ensure the installation complies with the Americans with
Disabilities Act or other accessibility requirements.

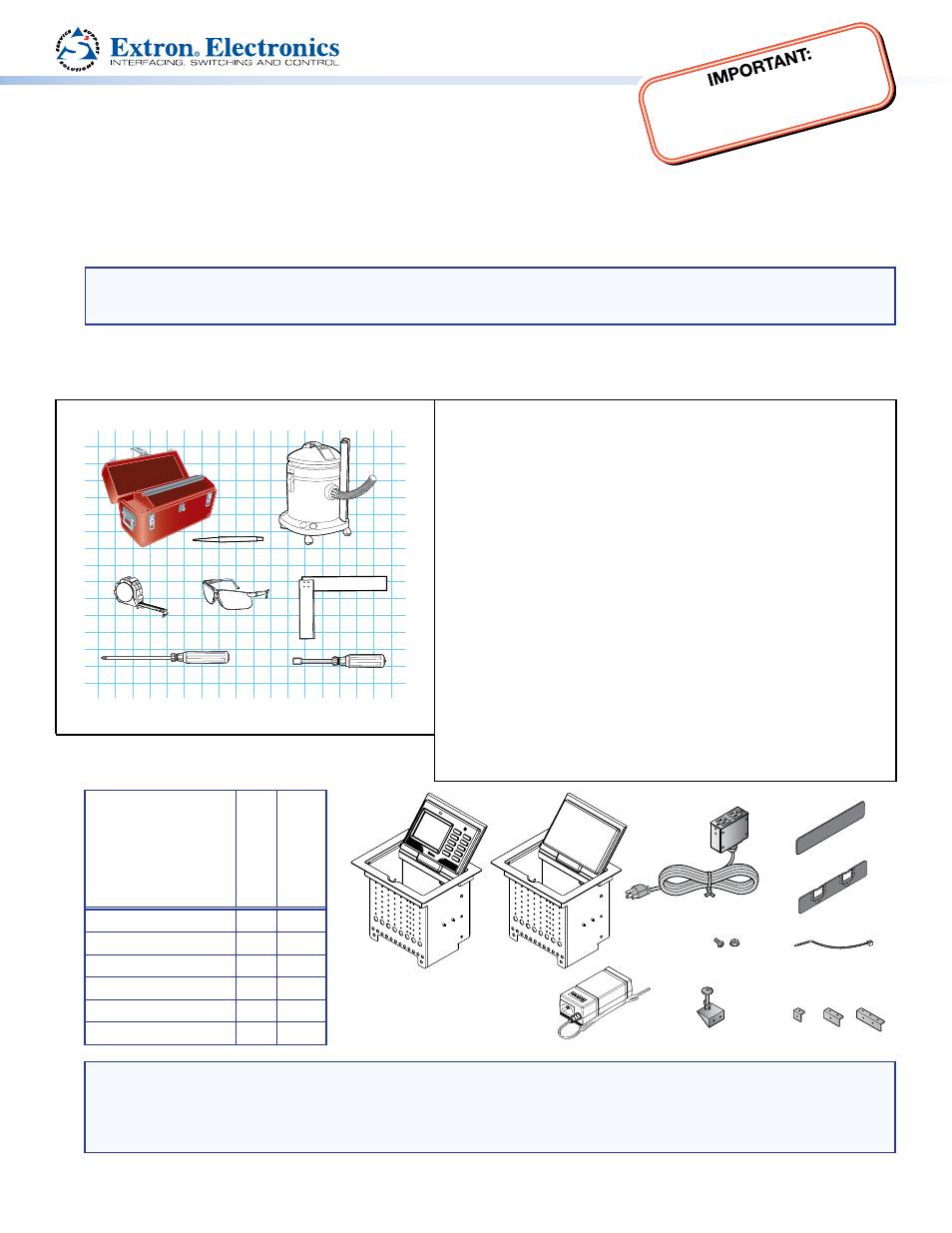

Tools Required for Installation
Safety Glasses
Phillips Screw Driver
Tape Measure
Vacuum Cleaner
1/4" Hex Nut Driver
Marking Pen
Square
Included Parts
W
ith Power
Module
W
ithout Power
Module
AC Power Module*
1
0
Pass-through AAPs
†
4
4
Blank AAPs
3
5
1-space bracket kit
0
0
2-space bracket kit
2
3
3-space bracket kit
1
1
NOTES:
*
Inside the US, the TLP 350CV may be purchased with or without an AC power module. If a power module is
required for the TLE 350, it must be purchased separately.
†
Active or Passive AAPs must be pur
Table Clamps
Zip Ties
#4−40 Screws
and Nuts
TLP 350CV or TLE 350
AC Power Module*
Blank AAPs
Pass-thru AAPs
2 Pos
AAP Shelf Bracket Kits
(2 brackets/kit)
3 Pos
1 Pos
1A MA
X
100-240V 50-60H
z
12 VDC, 1 A
Power Supply
