MLM 104 Faceplates • Installation Guide
Replacing the MLC 104 IP Plus Faceplate with an MLM
Faceplate
1.

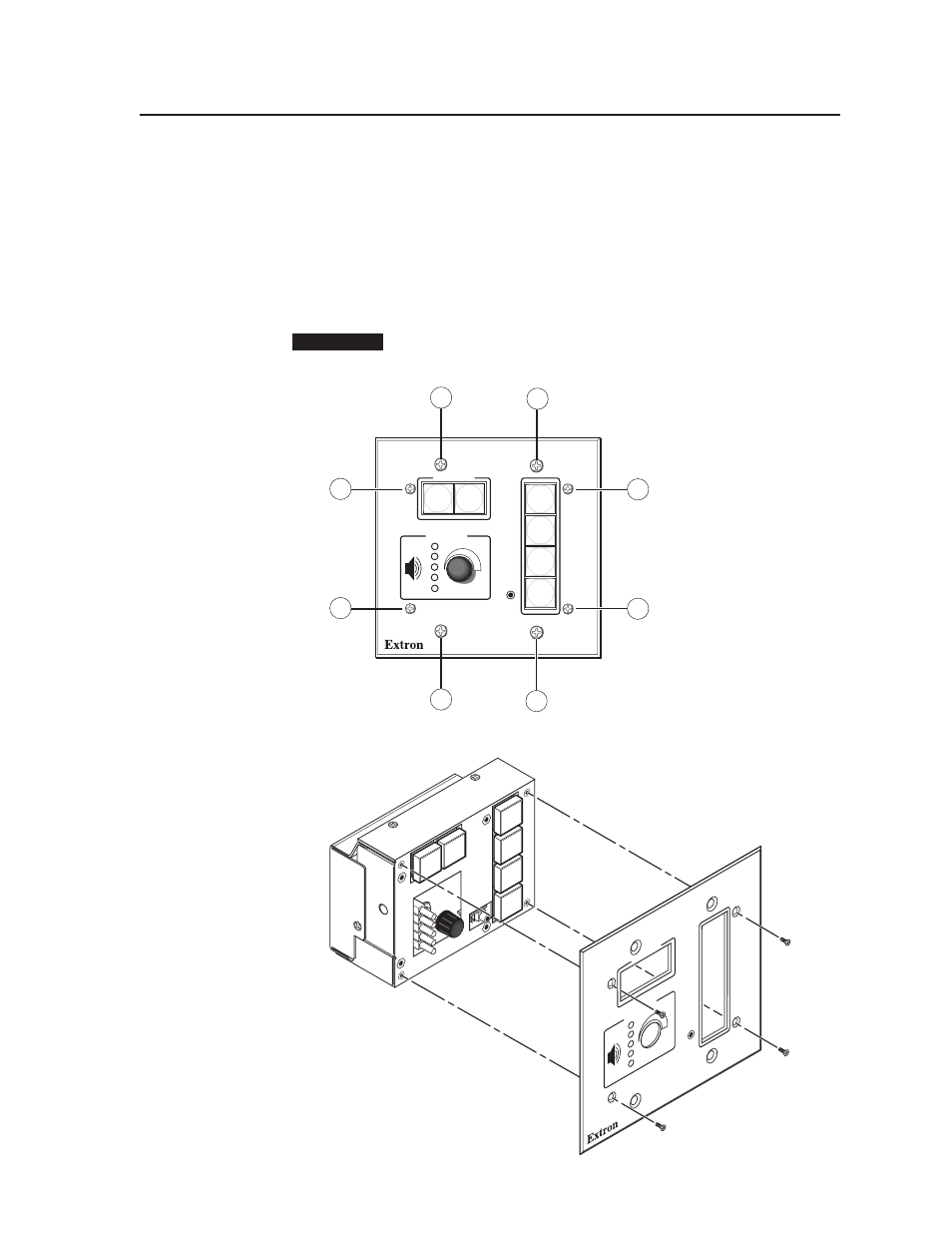

If your MLC controller is already installed in a wall or furniture, remove the
four screws that attach it to its mounting surface (marked
a
in the diagram
below), and lift it out.
2
.
After the MLC has been removed from the wall or furniture, use a small
Phillips screwdriver to remove the four faceplate attachment screws (marked
b
in the diagram below), and save them for later use.
CAUTION
Do not remove the four faceplate screws while the MLC is installed in a
wall or furniture, or the controller may fall into the wall or furniture.
CONFIG
DISPLAY
VOLUME
ON
OFF
1
2
3
4
2
2
2
2
MLC 104 IP PLUS
VCR
DVD
PC
1
1
1
1
3.
Lift the faceplate off the MLC 104 IP Plus, as shown below.
OFF
ON
OFF
ON
VCR
DV
D
PC
Extr
on
CO
NF
IG
DISPLA
Y
VO
LUME
1
2
3
4
MLC
104
IP PLUS
