Extron Electronics HAE 100 User Guide User Manual
Page 21
f.
Navigate to the HAE 100 firmware file using the file browser. Select the file and click
Open
(see figure 8).
NOTE: The extension of the firmware file must be .s19.

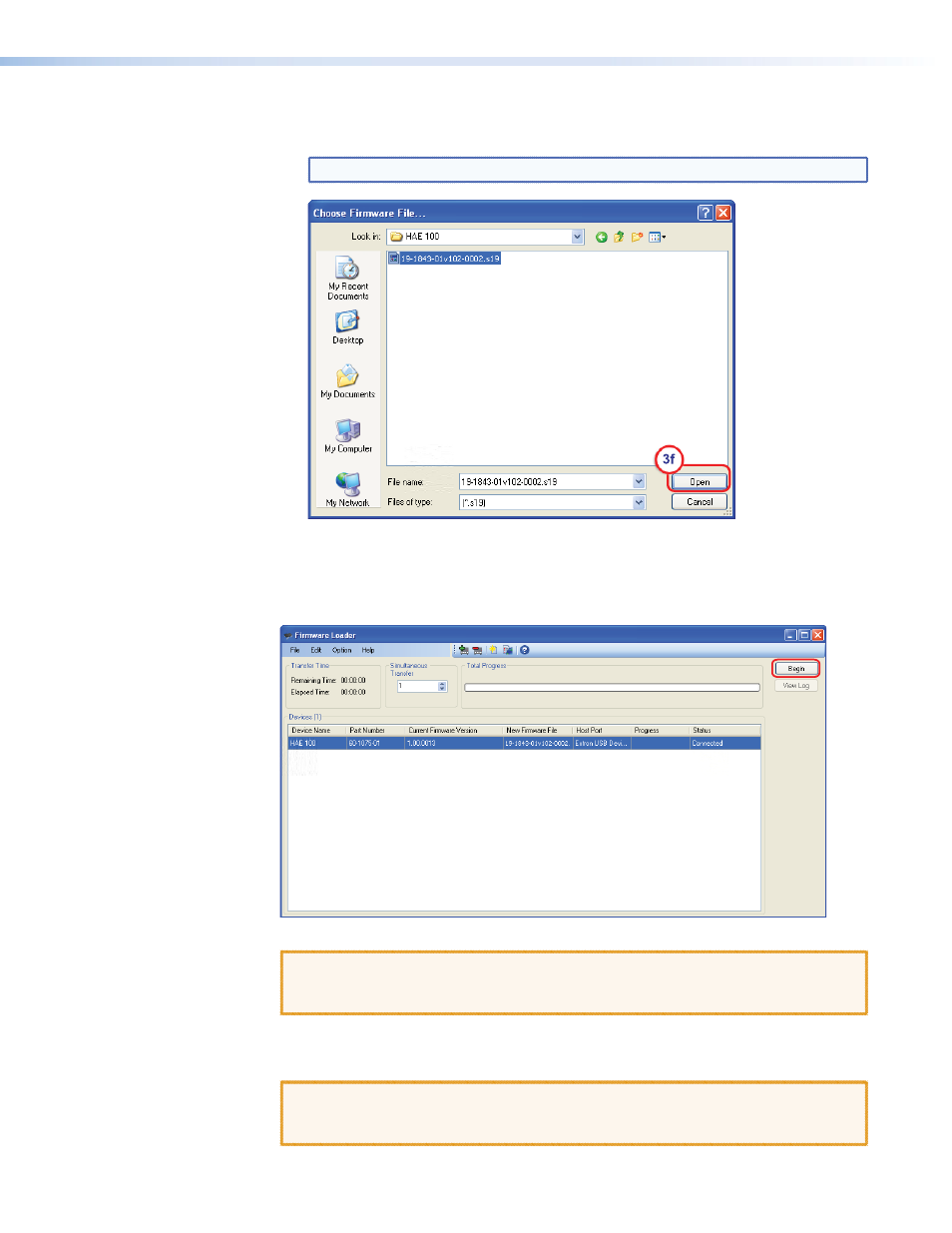

Figure 8.
Choose Firmware File Window
g.
On the Add Device window, click
Add
(see
closes.
4.
The main Firmware Loader window appears (see figure 9).
Figure 9.
Firmware Loader Main Window
CAUTION: Before clicking
Begin
, check to make sure the appropriate firmware file
is applied to the HAE 100. Uploading a file with an incorrect extension
may cause the unit to stop functioning.
5.
Click
Begin
. The firmware update is complete when the Total Progress box reads 100%
and the Status column reads Complete. Close the Firmware Loader window.
CAUTION: Closing the Firmware Loader window before the firmware update is
complete may result in corrupt firmware. For assistance with firmware
issues, contact the Extron S3 Sales and Technical Support Hotline.
HAE 100 HDMI Audio Extractor • Firmware Updates
16
