Rear Panel Features

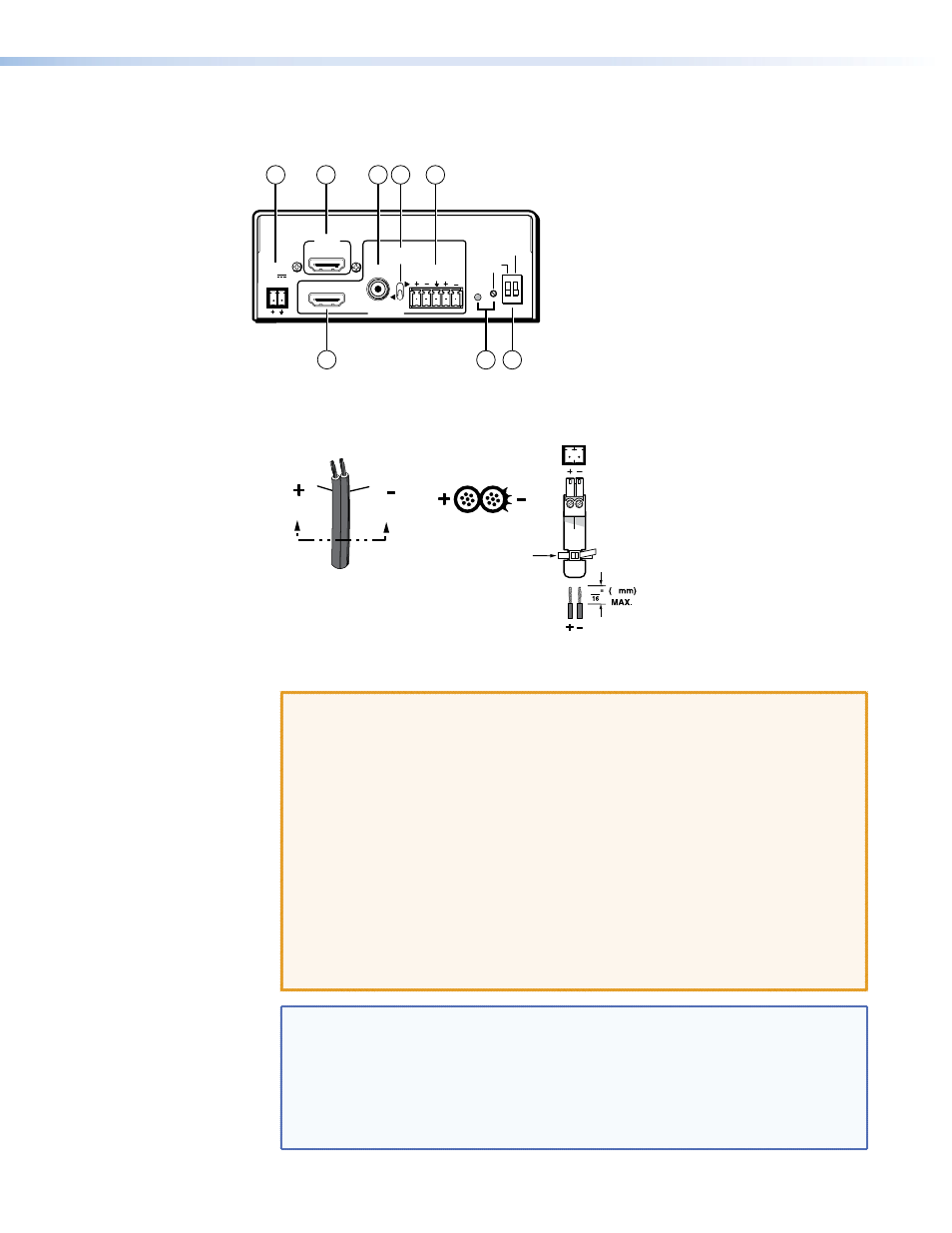

The rear panel of the HAE 100 is shown in figure 3.
12V
0.4A MAX
INPUT
S/PDIF ANALOG
HAE 100
OUTPUTS
HDMI
POWER
AUDIO
FORMAT
HDMI OUTPUT AUDIO HDMI
L R ON
ON
OFF
1 2
EDID
STORE
1 2 5 4 6
3 8 7
Figure 3. HAE 100 Rear Panel
a
Power input — Connect the provided power supply to the 3.5 mm, 2-pole captive
screw power receptacle (see figure 4).
Power Supply
Output Cord
Captive Screw
Connector
3 5
SECTION A–A
Ridges
Smooth
A A
Tie Wrap
Figure 4. Power Connection
CAUTION: • This product is intended to be supplied by a Listed Power Unit marked
“Class 2” or “LPS,” rated 12 VDC, maximum 1.0 A. Always use a
power supply supplied or specified by Extron. Use of an unauthorized
power supply voids all regulatory compliance certification and may
cause damage to the supply and the end product.
• Unless otherwise stated, the AC/DC adapters are not suitable for
use in air handling spaces or in wall cavities. The power supply is
to be located within the same vicinity as the Extron A/V processing
equipment in an ordinary location, Pollution Degree 2, secured to the
equipment rack within the dedicated closet, podium, or desk.
• The installation must always be in accordance with the applicable
provisions of National Electrical Code ANSI/NFPA 70, article 75,
and the Canadian Electrical Code part 1, section 16. The power
supply shall not be permanently fixed to building structure or similar
structure.
NOTES: • The length of the exposed wires in the stripping process is critical. The
ideal length is 3/16 inches (5 mm). If the exposed section is longer, the
exposed wires may touch, causing a short circuit between them. If it is
shorter, the wires can be easily pulled out, even if tightly fastened by the
captive screws.
• Do not tin the wires. Tinned wire does not hold its shape and can
become loose over time.
HAE 100 HDMI Audio Extractor • Panels and Cabling 5
